Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

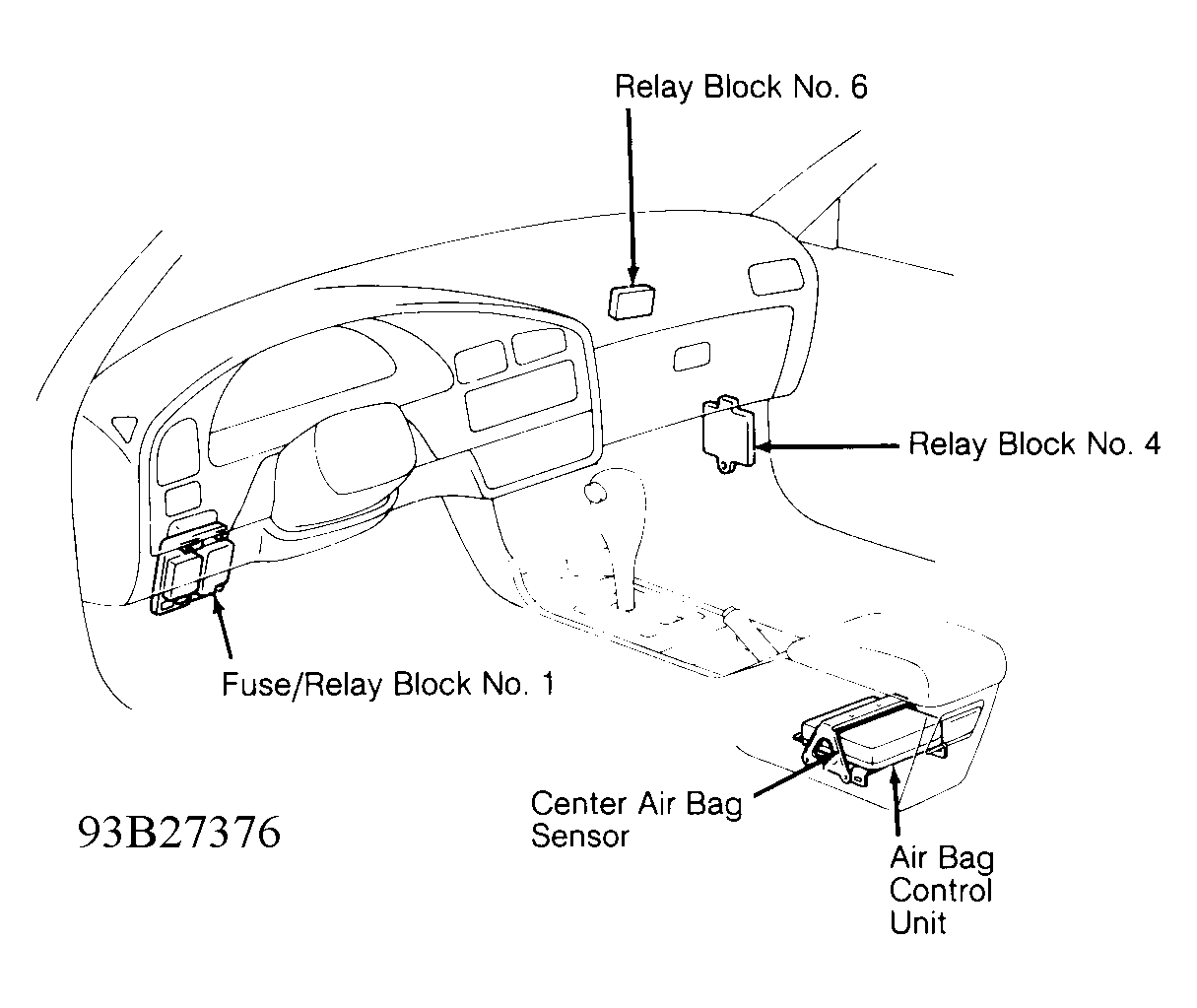

Fig 1: Component Locations (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

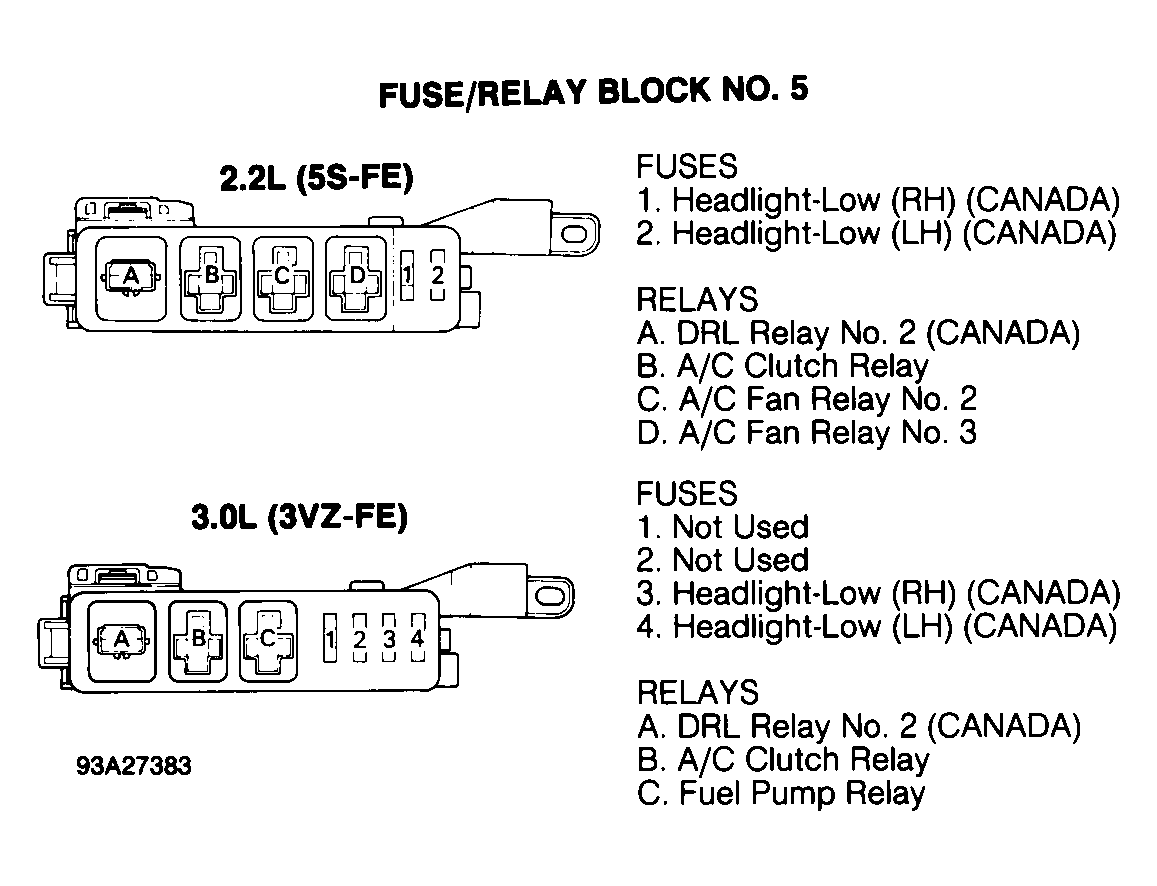

Fig 2: Component Locations (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

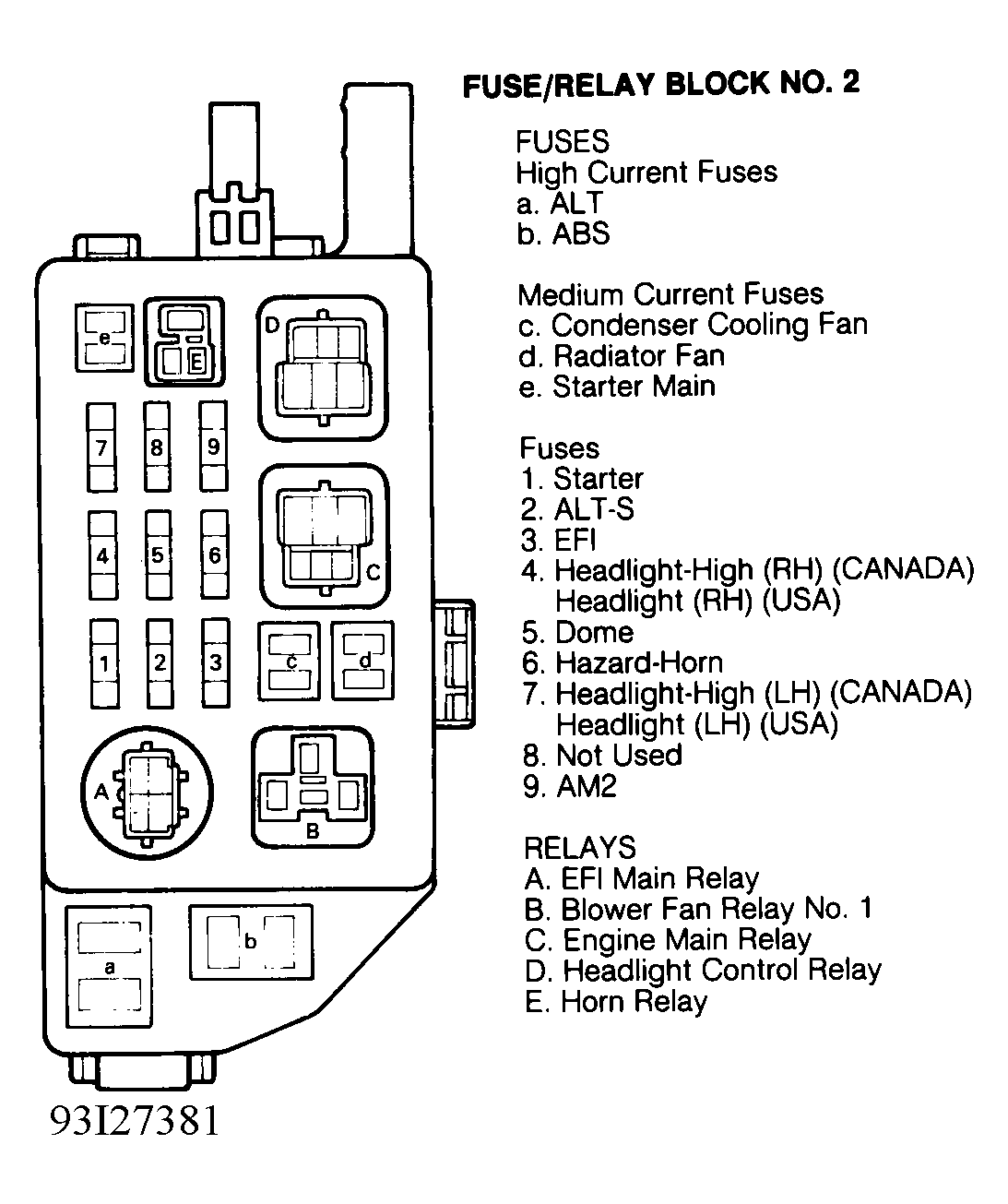

Fig 3: Component Locations (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

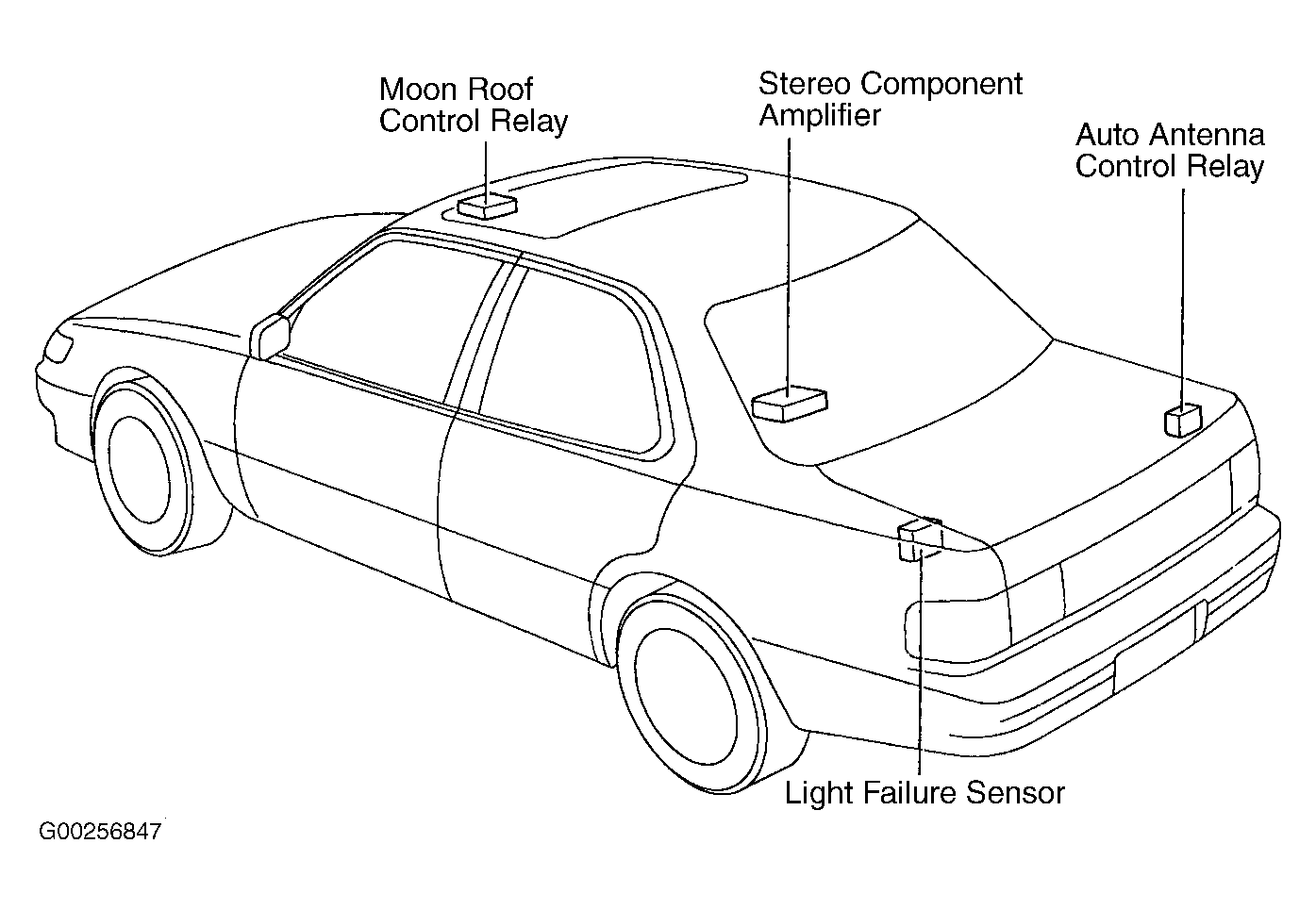

Fig 4: Component Locations (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

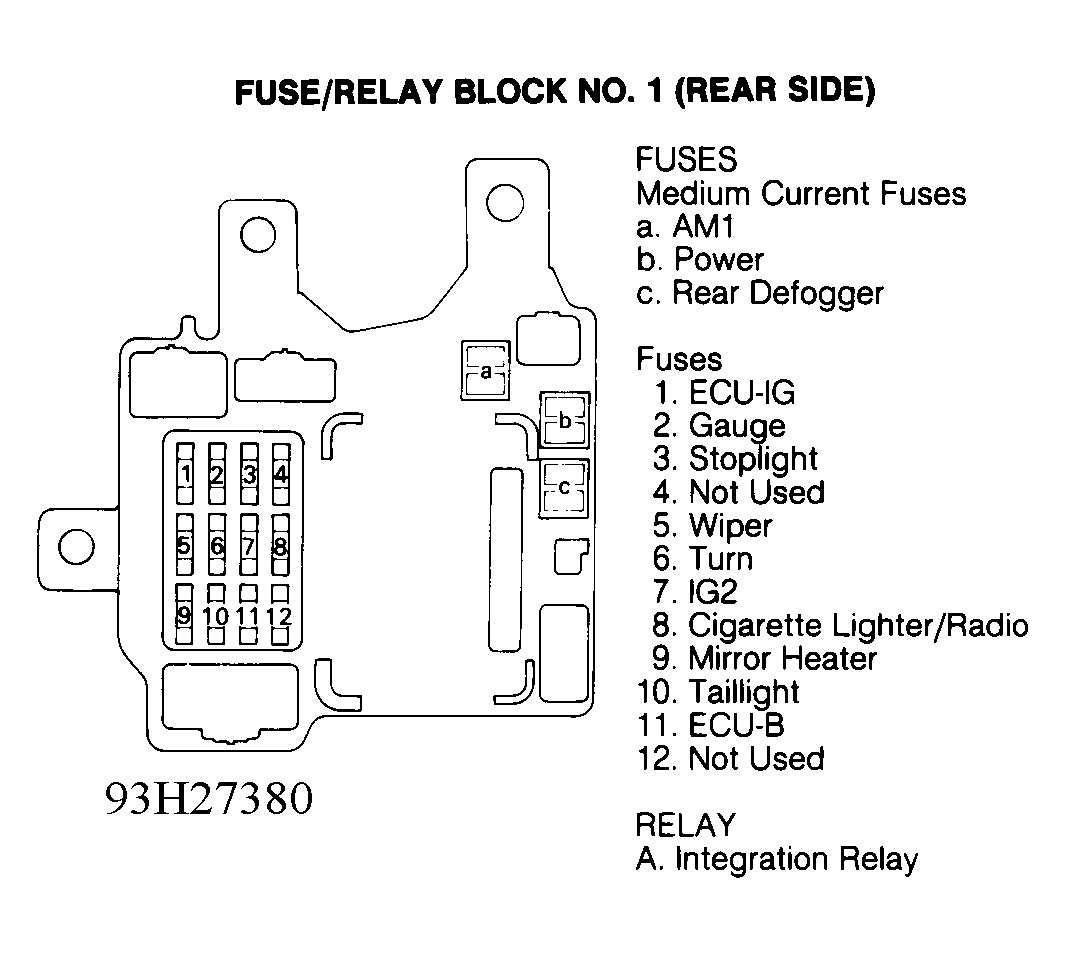

Fig 5: Component Locations (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

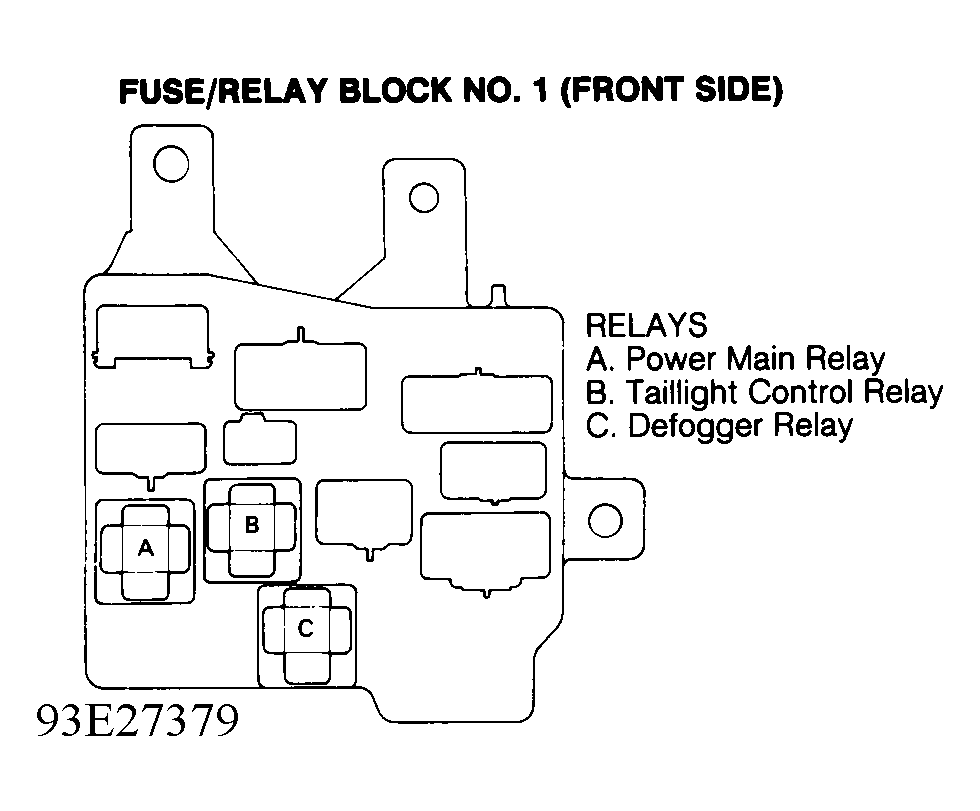

Fig 6: Component Locations (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

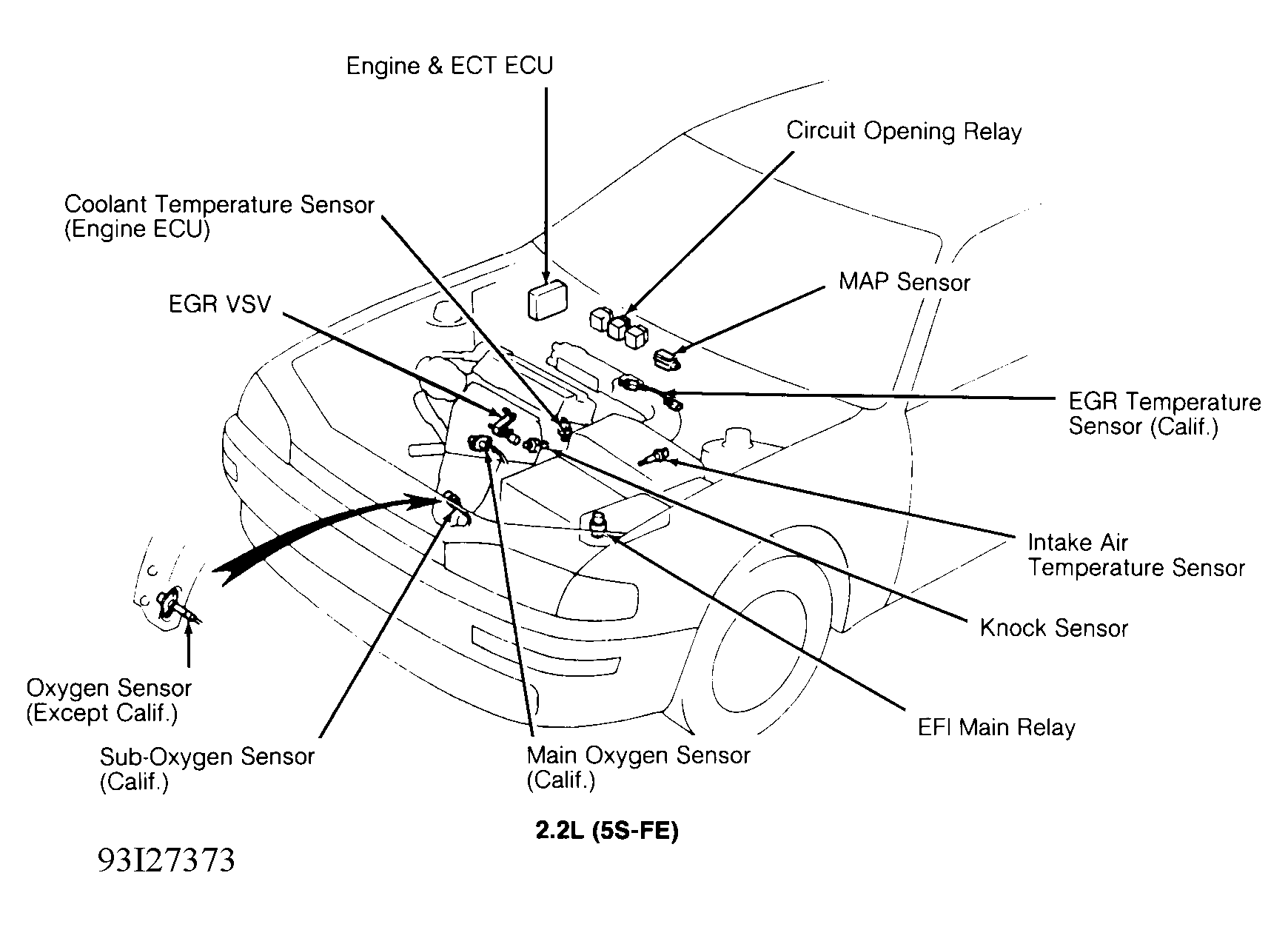

Fig 7: Component Locations (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

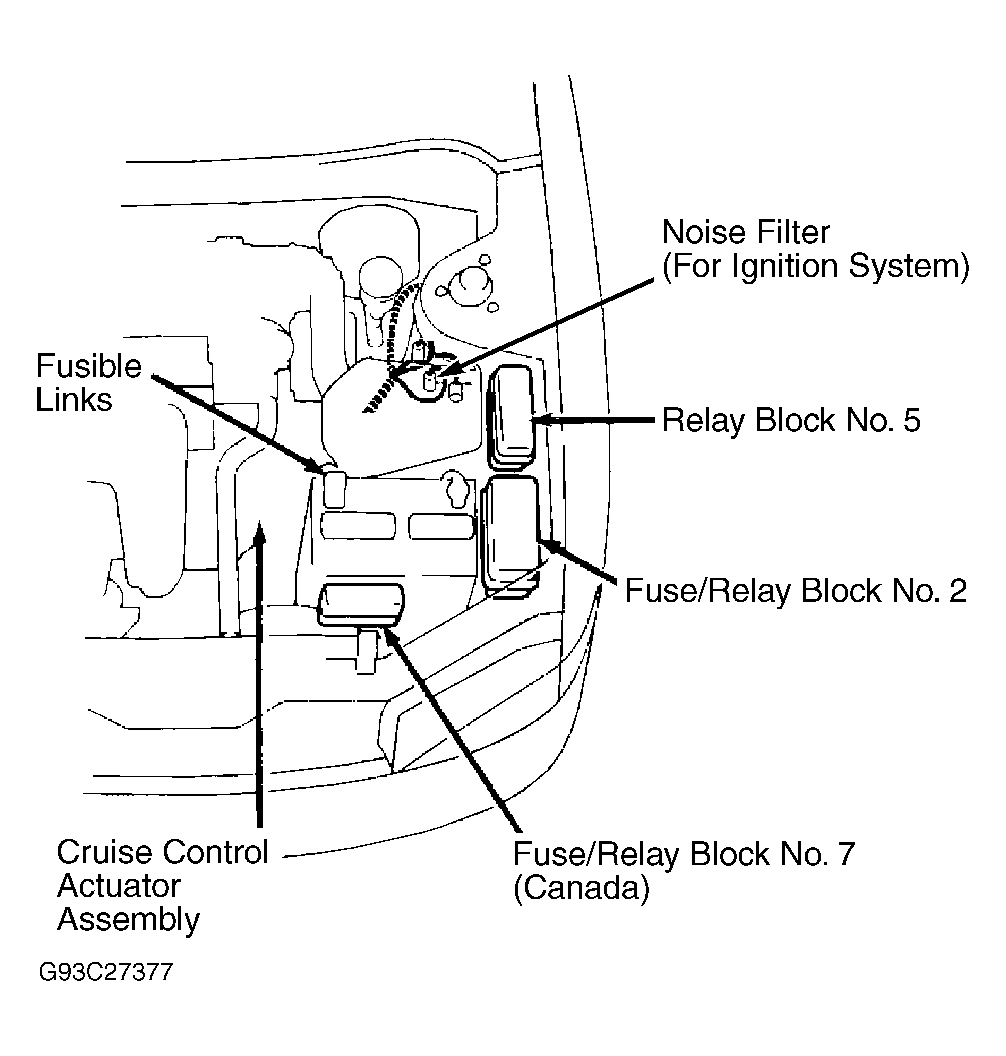

Fig 8: Component Locations (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

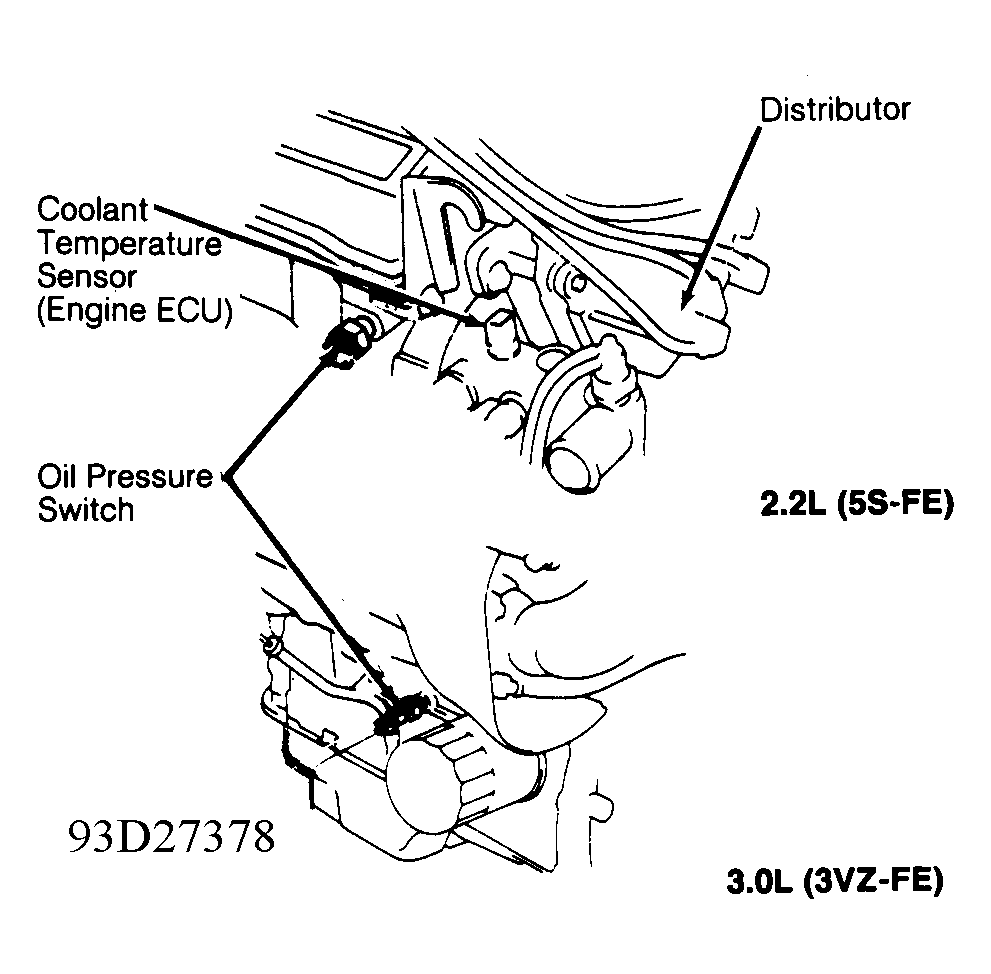

Fig 9: Component Locations (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

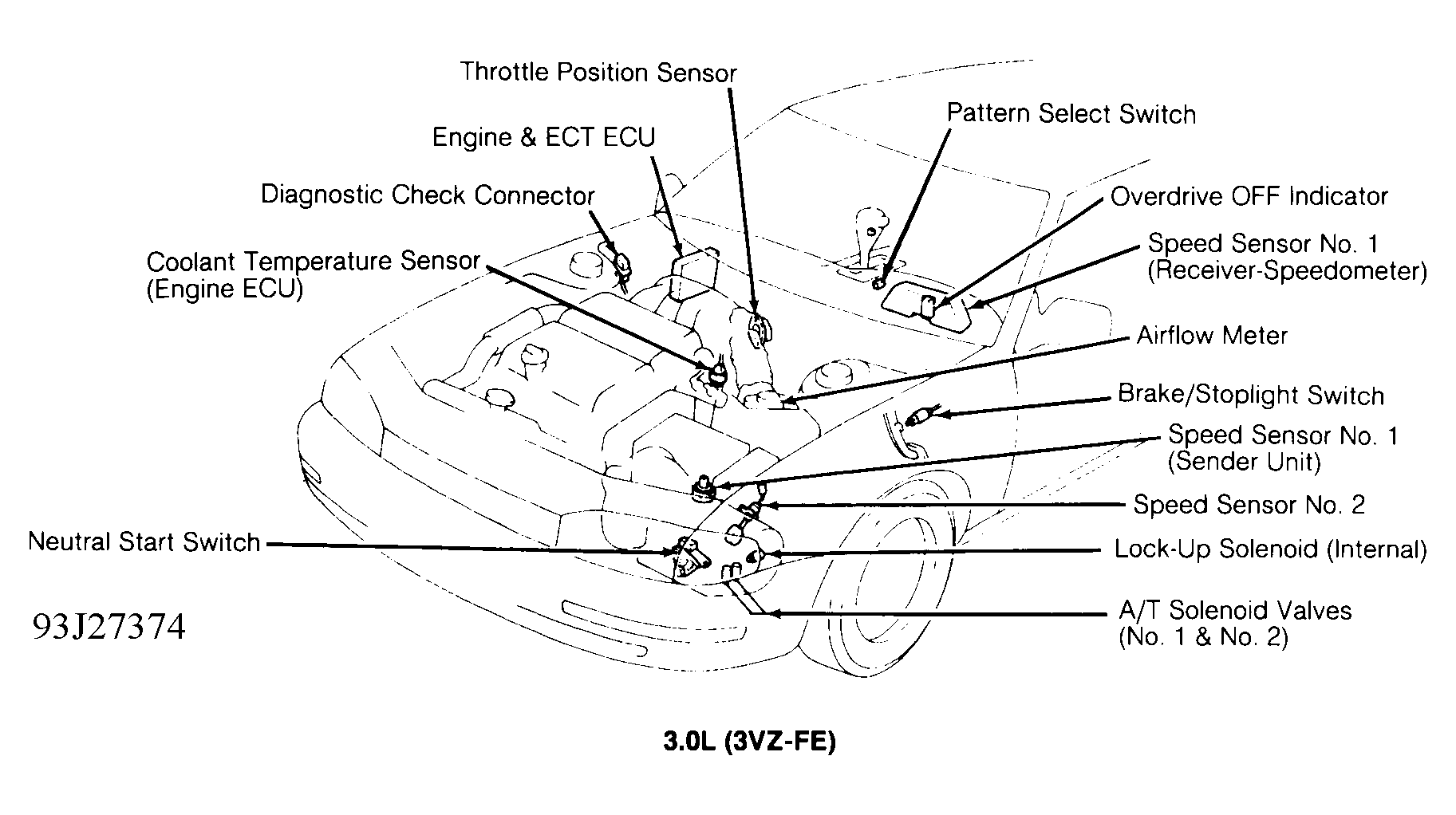

Fig 10: Component Locations (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

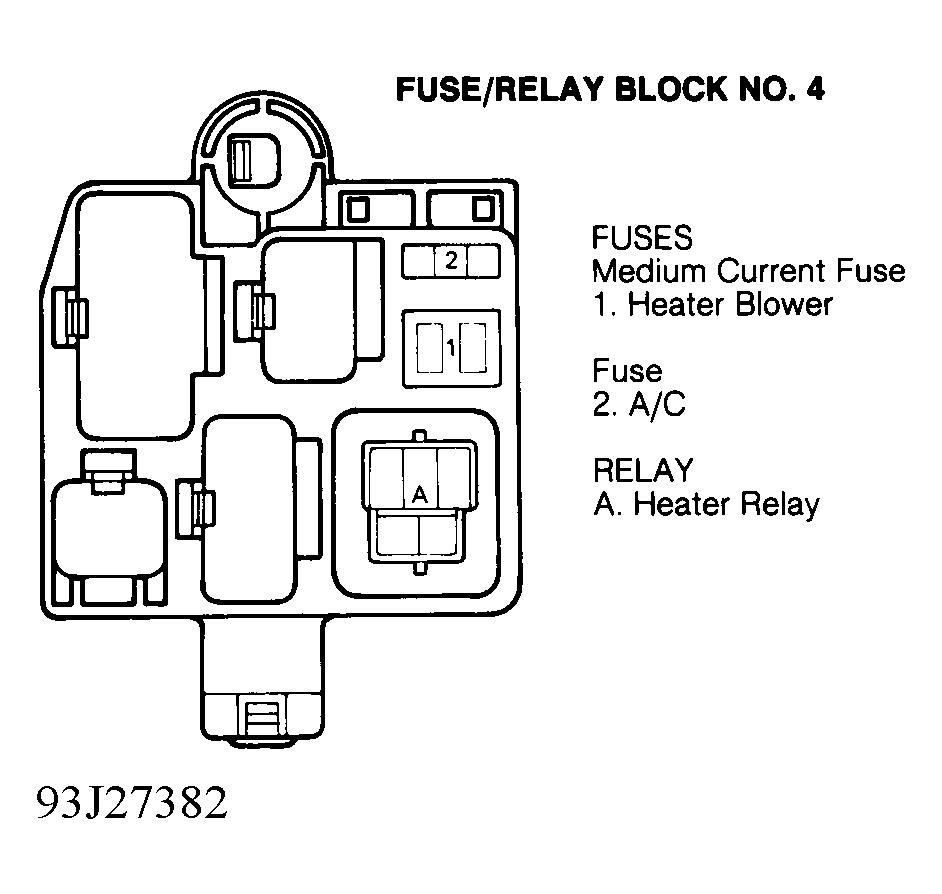

Fig 11: Component Locations (11 Of 16)

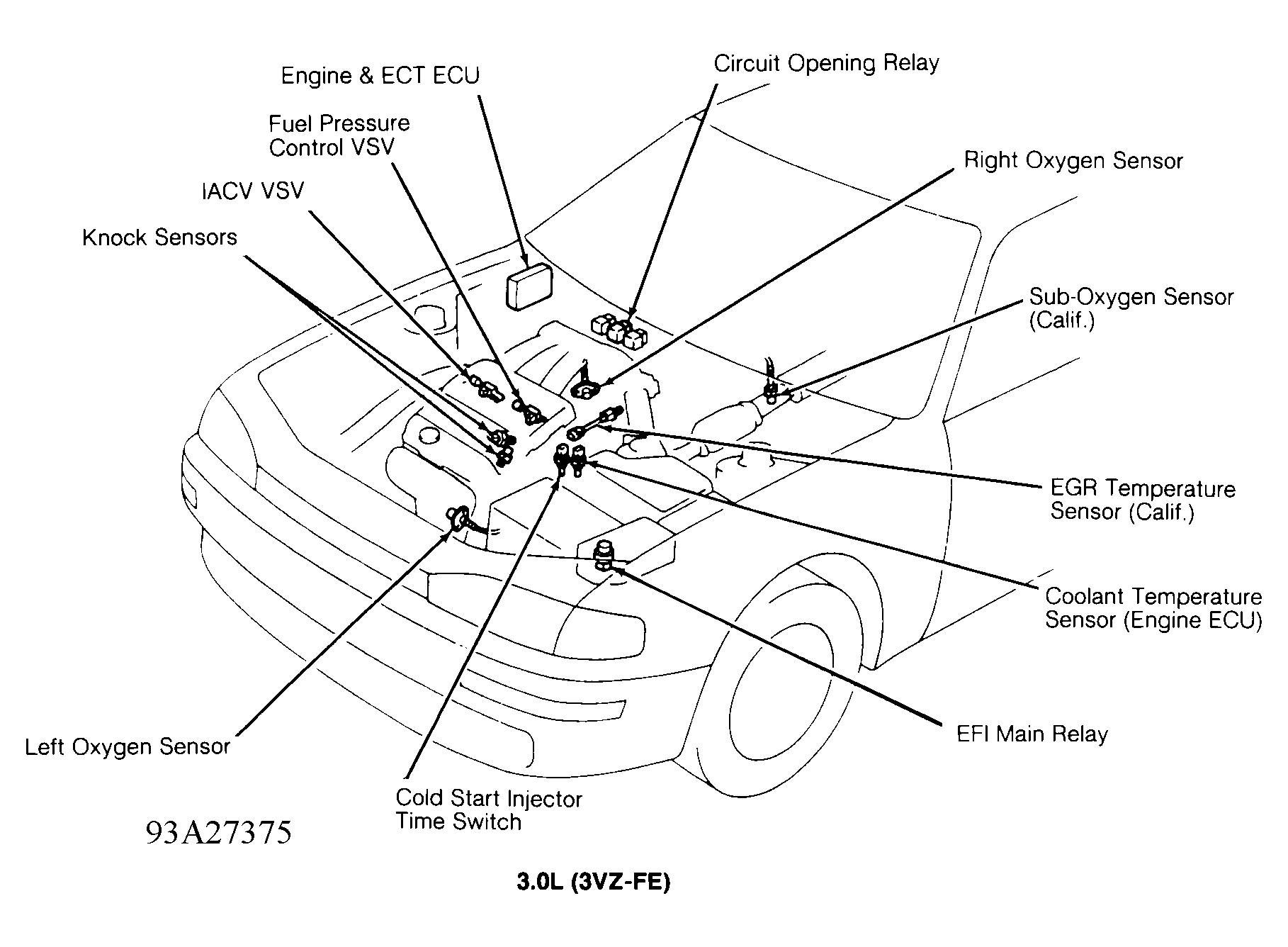

Fig 12: Component Locations (12 Of 16)

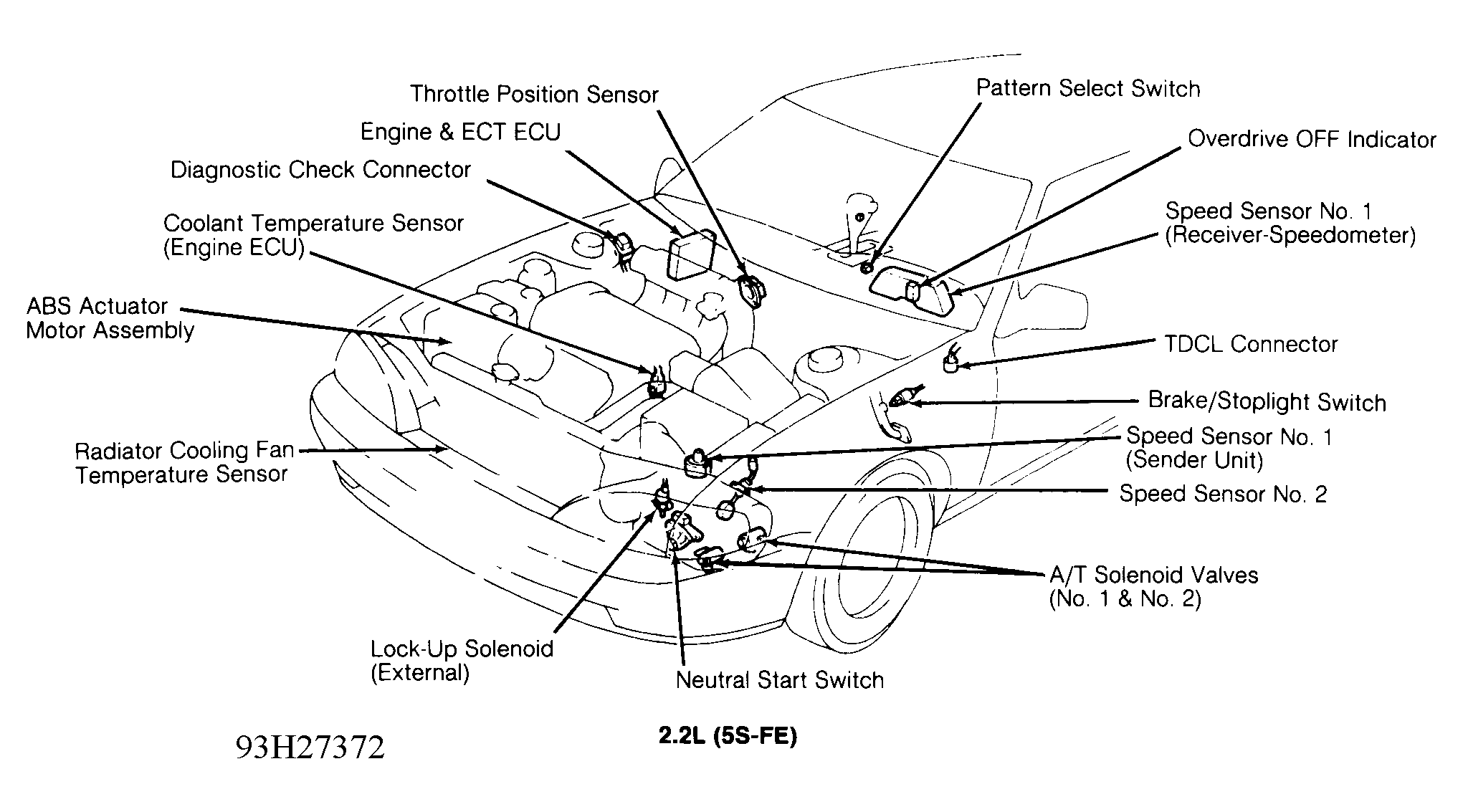

Fig 13: Component Locations (13 Of 16)

Fig 14: Component Locations (14 Of 16)

Fig 15: Component Locations (15 Of 16)

Fig 16: Component Locations (16 Of 16)
