Throttle Position Sensor

Turn ignition off. Disconnect electrical connector from Throttle Position Sensor (TPS) on throttle body. Note terminal identification. See Fig 1.
Insert specified thickness feeler gauge between throttle stop screw and throttle lever, and check resistance or continuity. See appropriate TPS RESISTANCE SPECIFICATIONS table. Replace or adjust TPS if not within specification.

NOTE: Some models require that vacuum be applied to throttle opener before checking TPS. See appropriate TPS RESISTANCE SPECIFICATIONS table.

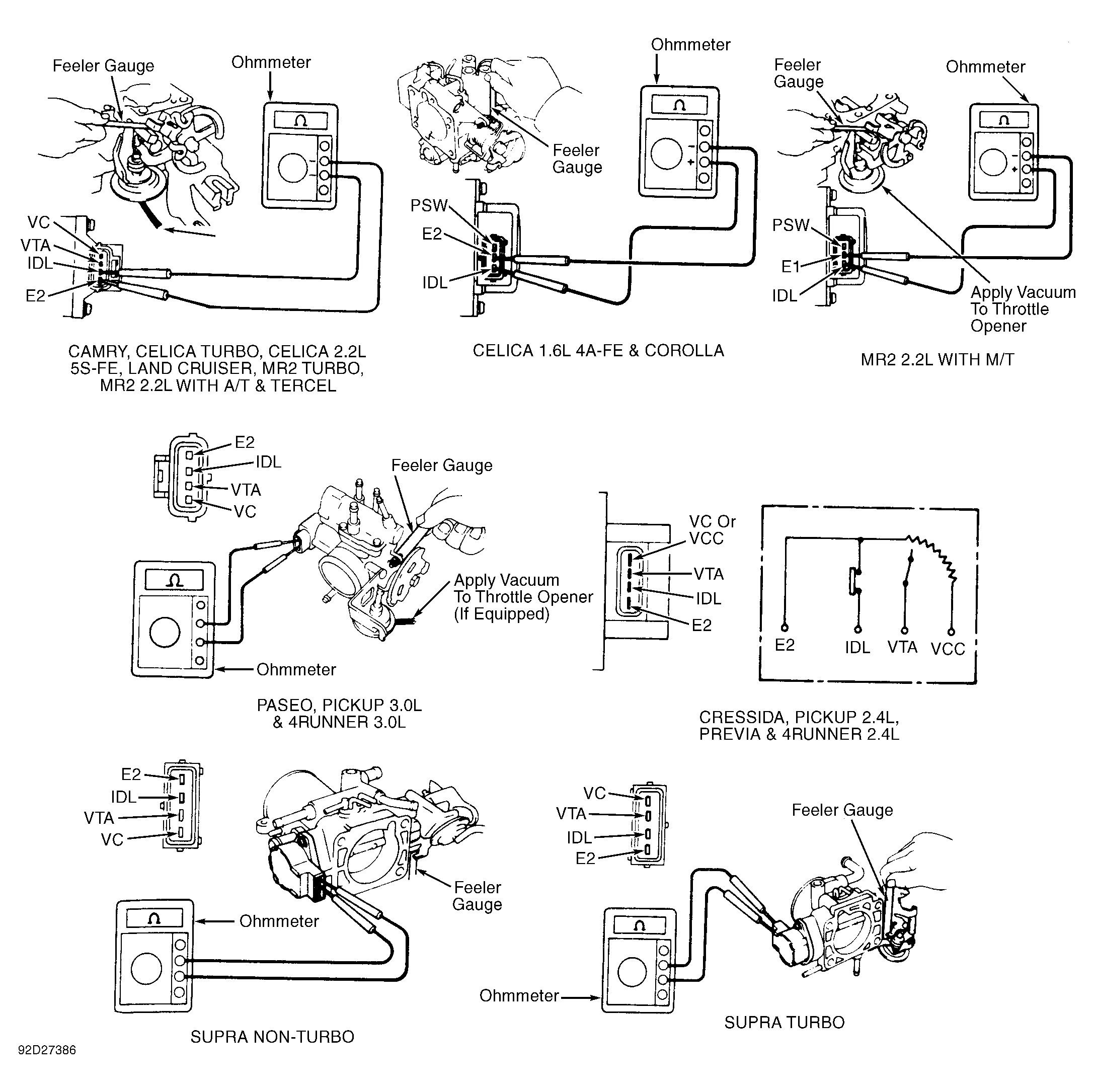

Fig 1: Checking Throttle Position Sensor (TPS)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TPS RESISTANCE SPECIFICATIONS

Application ⁽¹⁾

Clearance In. (mm)

Terminal

Ohmmeter Reading

2.2L

0 (0)

VTA & E2

200-5700

2.2L

.020 (.51)

IDL & E2

2300 Or Less

2.2L

.028 (.71)

IDL & E2

No Continuity

2.2L

Fully Open

VTA & E2

2000-10,200

2.2L

Fully Open

VC & E2

2500-5900

3.0L

0 (0)

VTA & E2

280-6400

3.0L

.014 (.36)

IDL & E2

500 Or Less

3.0L

.028 (.71)

IDL & E2

No Continuity

3.0L

Fully Open

VTA & E2

2000-11,

3.0L

***

VC & E2

2700-7700

⁽¹⁾	Apply vacuum to throttle opener before checking TPS.

NOTE: Vacuum sensor may also be referred to as Manifold Absolute Pressure (MAP) sensor.
