Test No. 12 - Injector Circuit

TEST NO. 12-INJECTOR CIRCUIT TROUBLE (5S-FE)

Terminal	Trouble	Condition	STD Voltage
No. 10-E01	No Voltage	Ignition Switch ON	10-14V
No. 20-E02

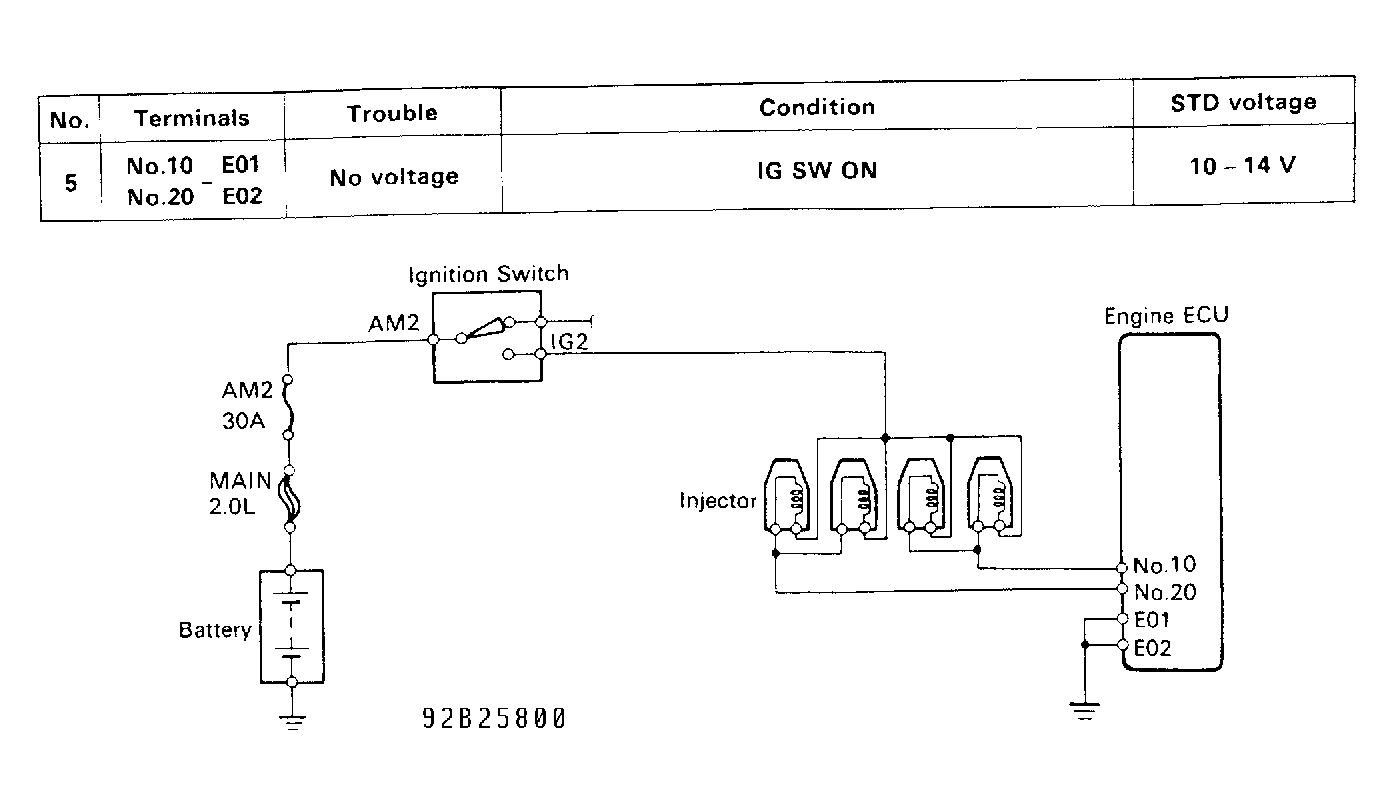

Fig 1: Test No. 12 Schematic (5S-FE) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

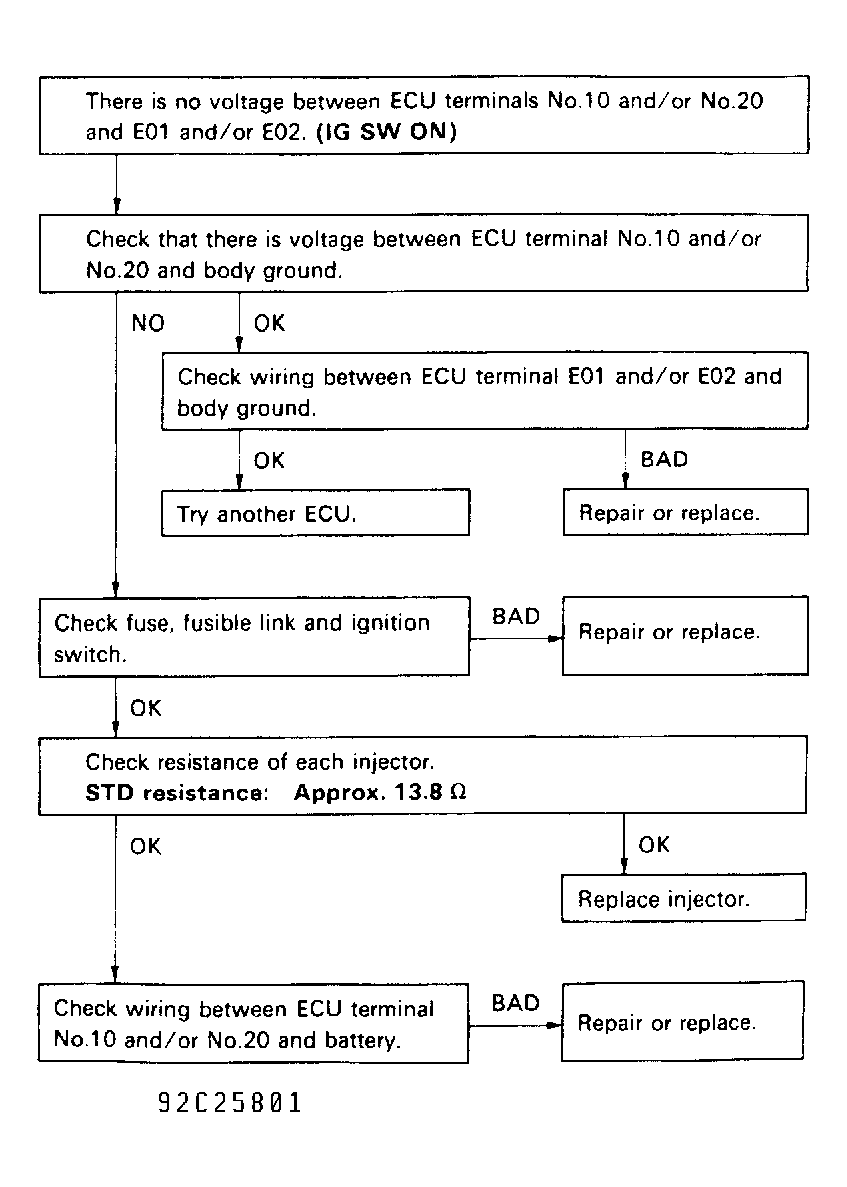

Fig 2: Test No. 12 Flow Chart (5S-FE) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEST NO. 12-INJECTOR CIRCUIT TROUBLE (3VZ-FE)

Terminal	Trouble	Condition	STD Voltage
No. 10-E01	No Voltage	Ignition Switch ON	10-14V
No. 60-E02

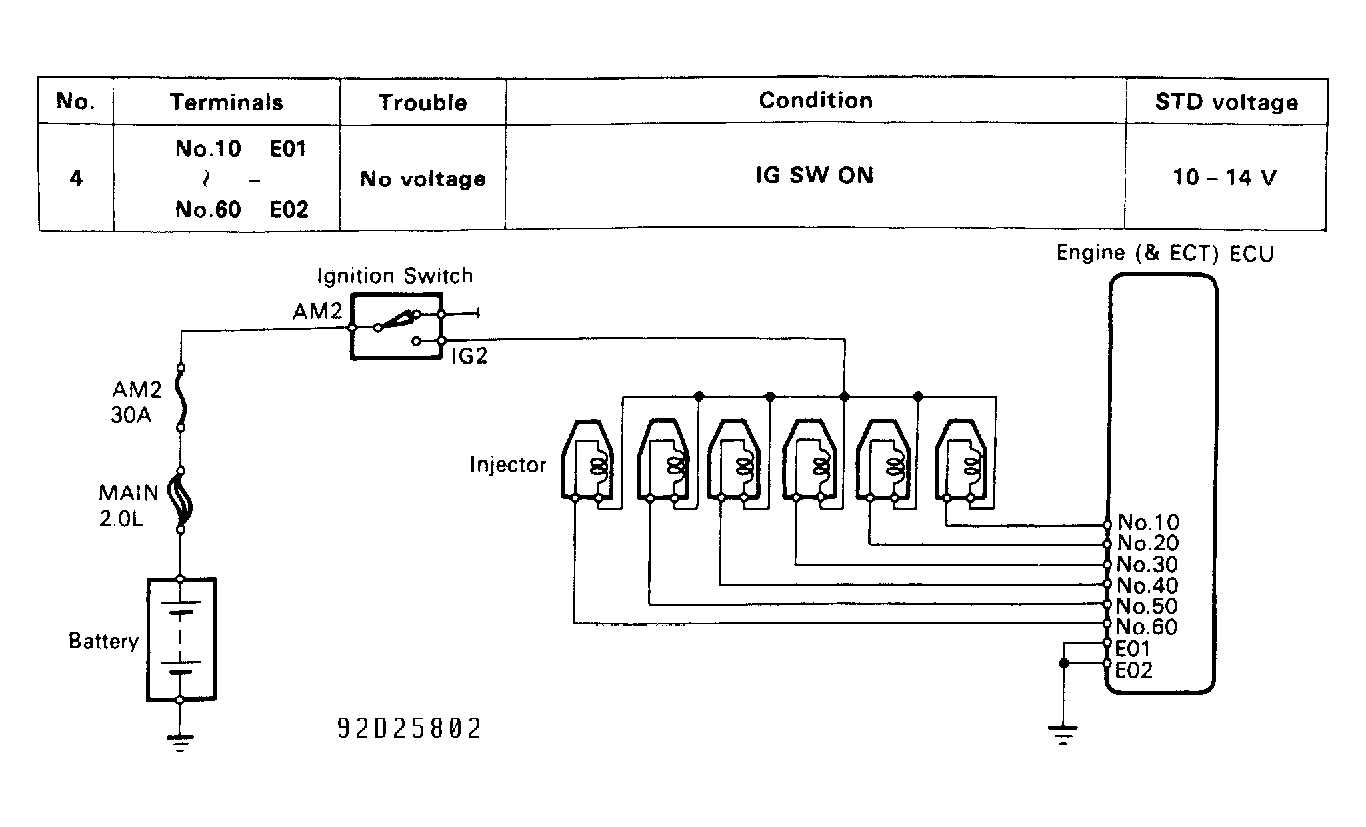

Fig 3: Test No. 12 Schematic (3VZ-FE) Injector Circuit

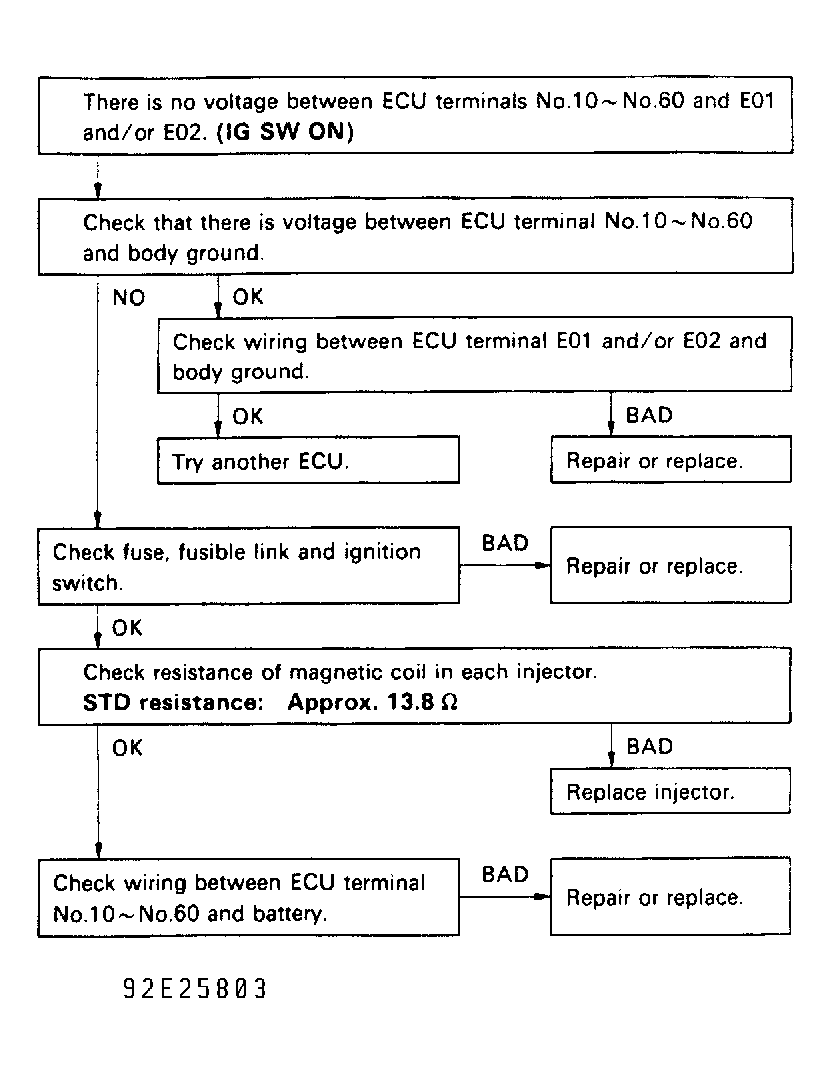

Fig 4: Test No. 12 Flow Chart (3VZ-FE) Injector Circuit
