Power Main Relay

Inspect power main relay for continuity, between terminals. See Fig 1. If continuity is not as specified, replace the relay.

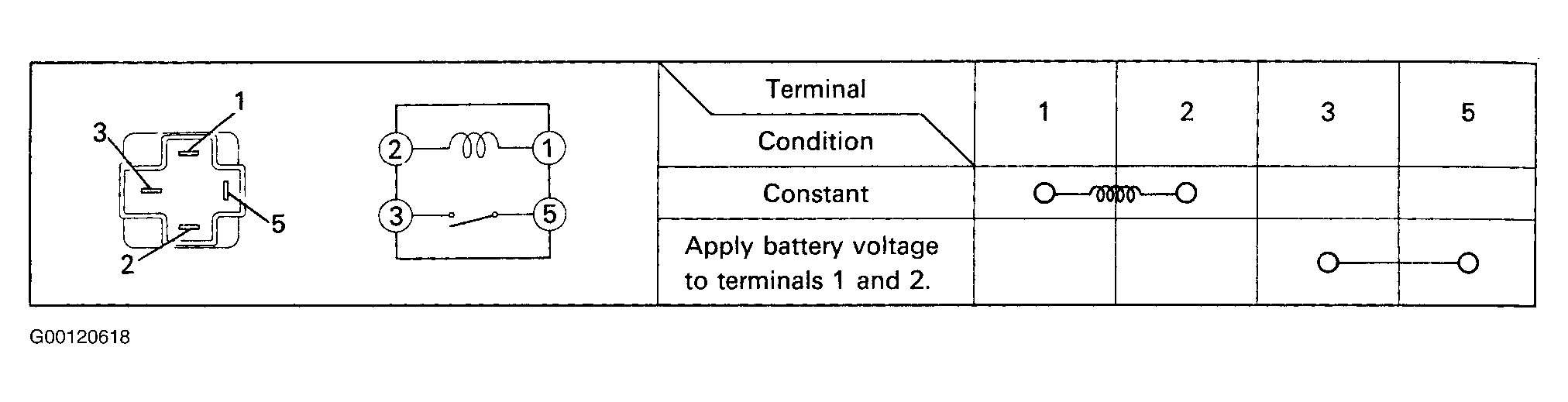

Fig 1: Testing Power Main Relay Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
