Fuel Evaporation: Notes

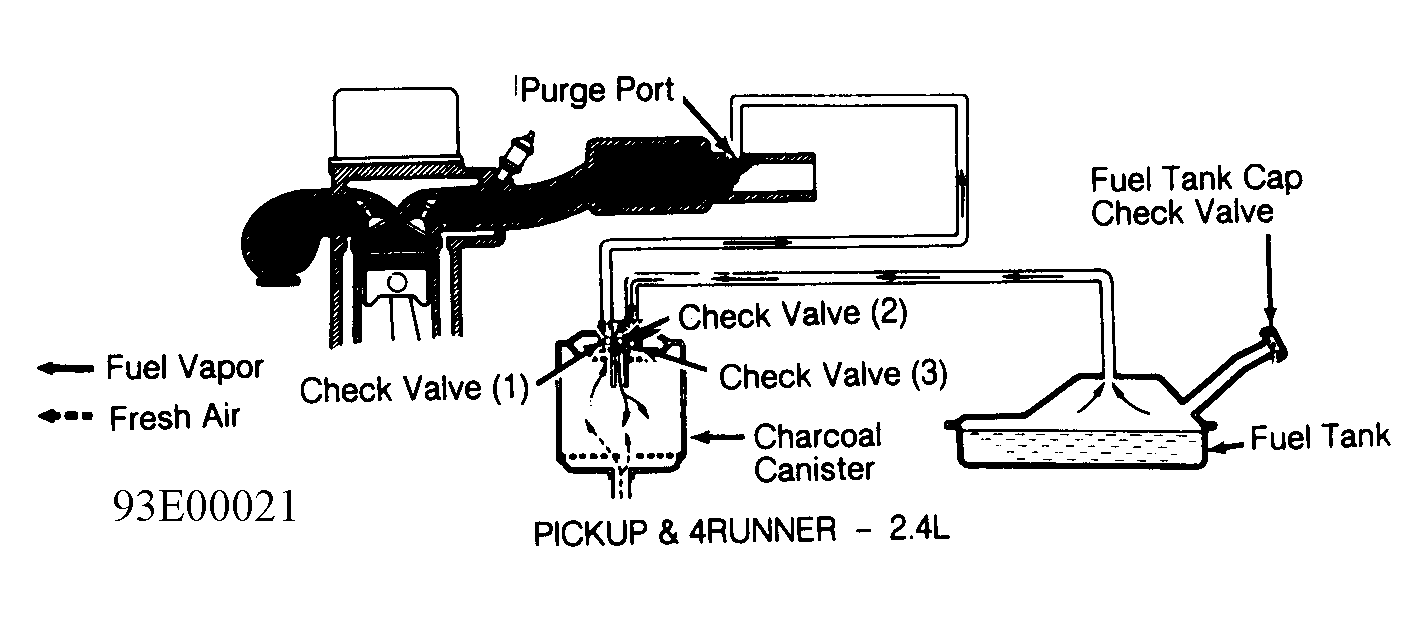

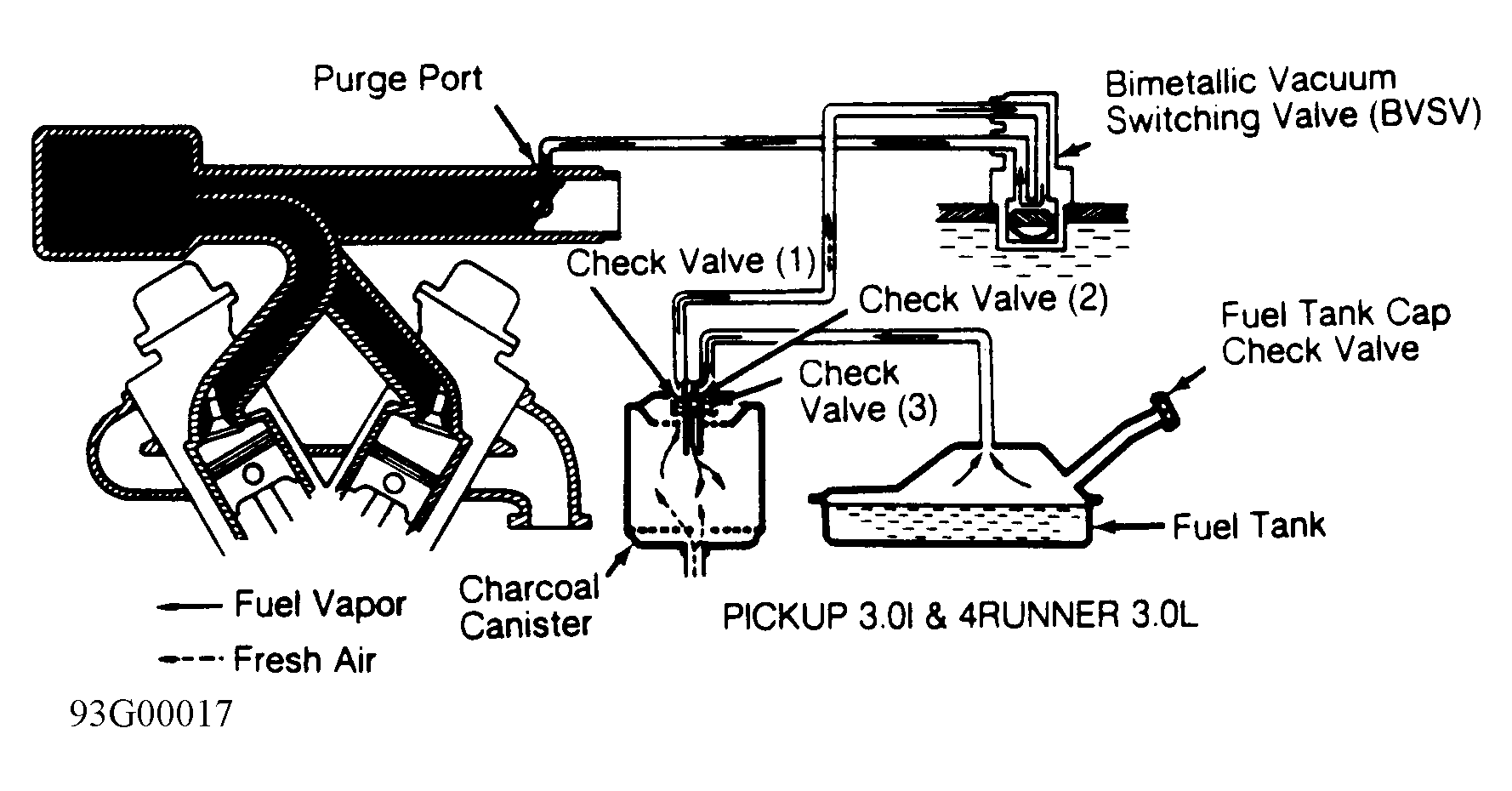

NOTE: See Figure-Figure to identify evaporative emission control systems and operating parameters.
