Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location | |
|---|---|---|
| A/C Dual-Pressure Switch | Inside evaporator case, near expansion valve. | |
| ADD Indicator Switch (4WD Only) | On ADD acutator mounted to front of front differential. | |
| Back Door (4Runner) | ||

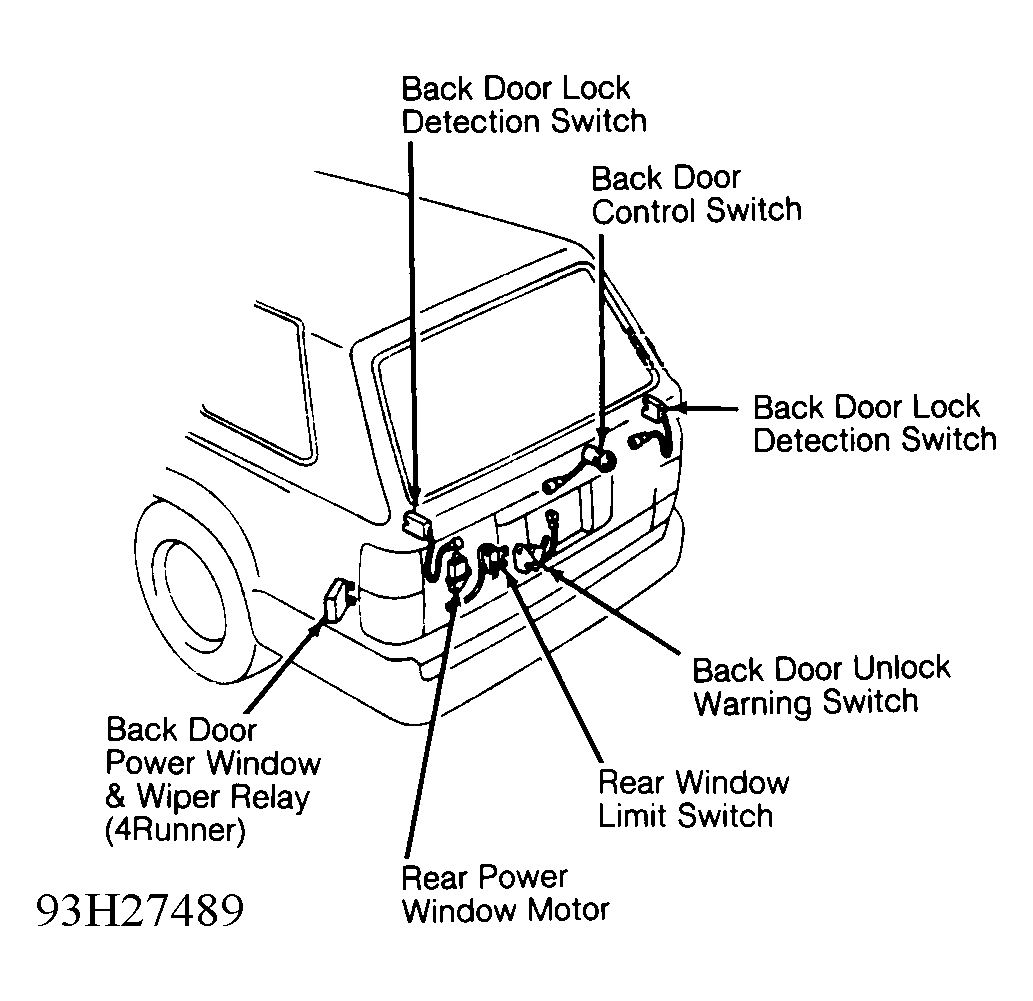

| Control Switch | In back door. See Figure. | |
| Lock Detection Switches (2) | In back door. See Figure. | |
| Rear Window Limit Switch | In left side of back door. See Figure. | |
| Unlock Warning Switch | In back door. See Figure. | |
| Back-Up Light Switch (M/T) | On right side of transmission. | |
| Brake Fluid Level Warning Switch | Inside brake master cylinder, attached to cover. | |
| Clutch Switch | On bracket, above clutch pedal. | |
| Cold Start Injector Time Switch | ||

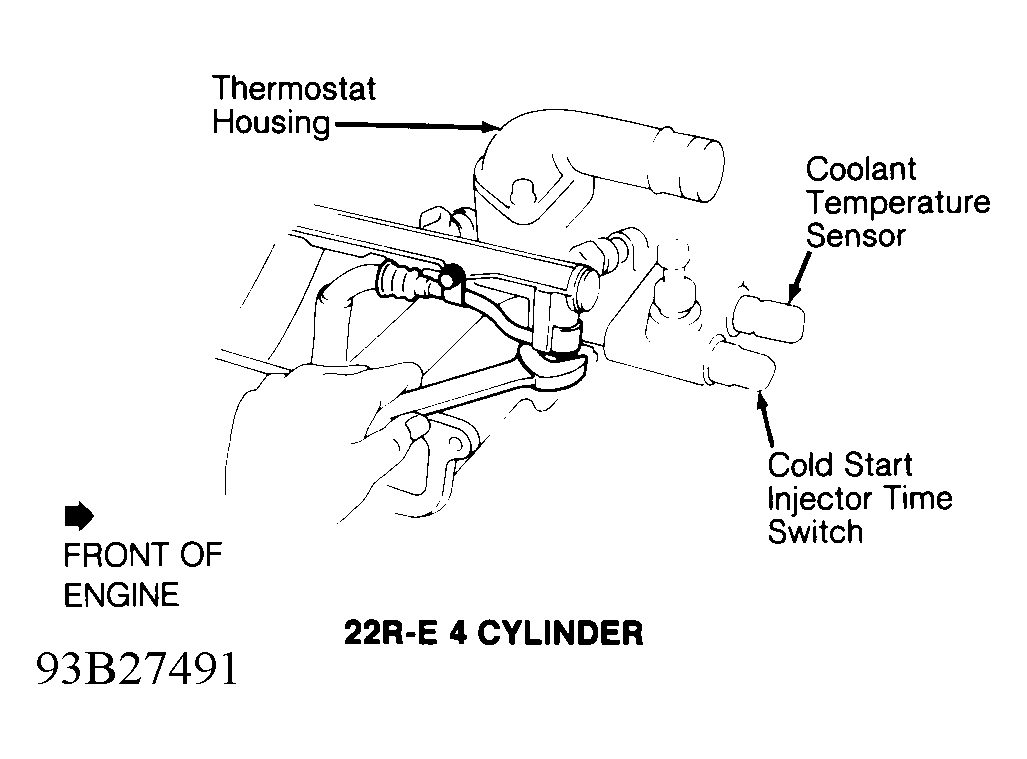

| 22R-E 4-Cylinder | On front of thermostat housing on front of intake manifold. See Figure. | |

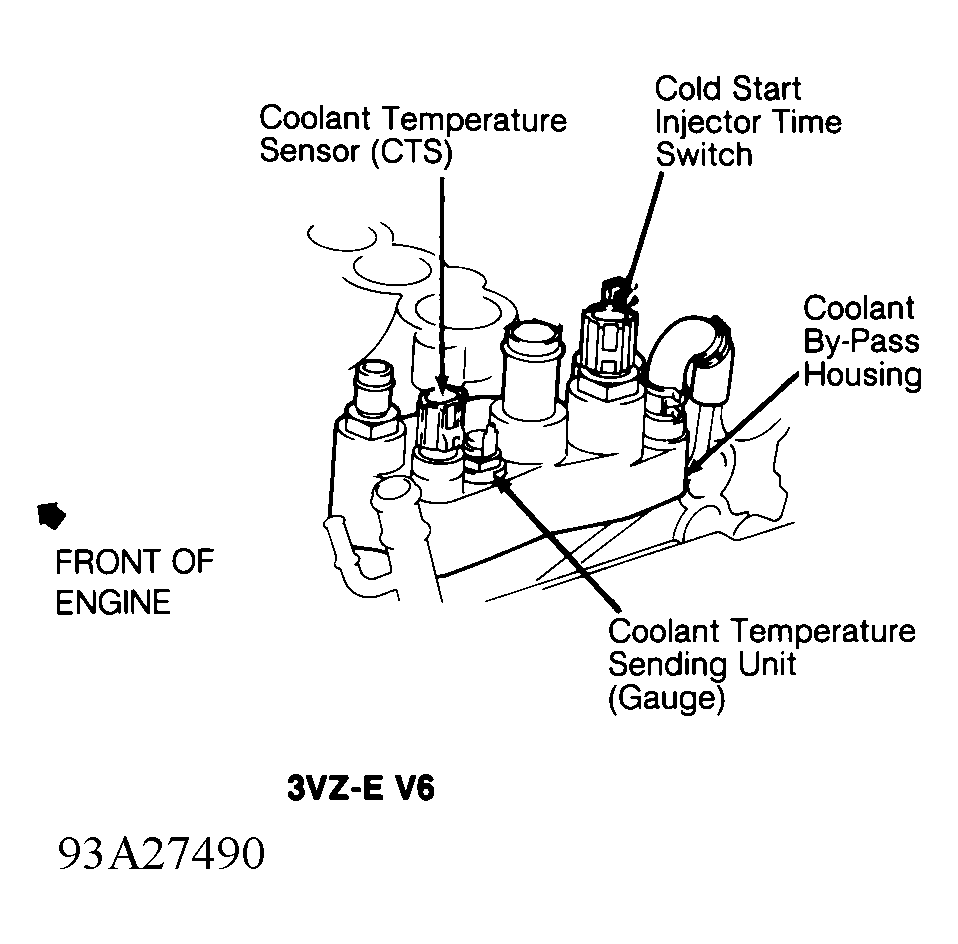

| 3VZ-E V6 | On coolant by-pass housing at rear of intake manifold. See Figure. | |
| Neutral Start Switch (A/T) | On right side of transmission. | |
| Parking Brake Switch | On rear of parking brake lever mounting bracket. | |
| Seat Belt Switch | On driver-side belt buckle. | |
| Shift Lock Control Switch | On base of shift lever. See Figure. | |
| Stoplight Switch | On bracket, above brake pedal. See Figure. | |
| Transfer Case Shift Position Switch | On left side of transfer case. See Figure. | |
