Anti-Lock Brake System: Description

Rear Anti-Lock Brake System (ABS) consists of power steering pump, brake actuator, ABS relay, deceleration sensor, actuator solenoid, ABS computer and speed sensor. See Fig 1 and Fig 2 .

Fig 1: Locating ABS Components (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

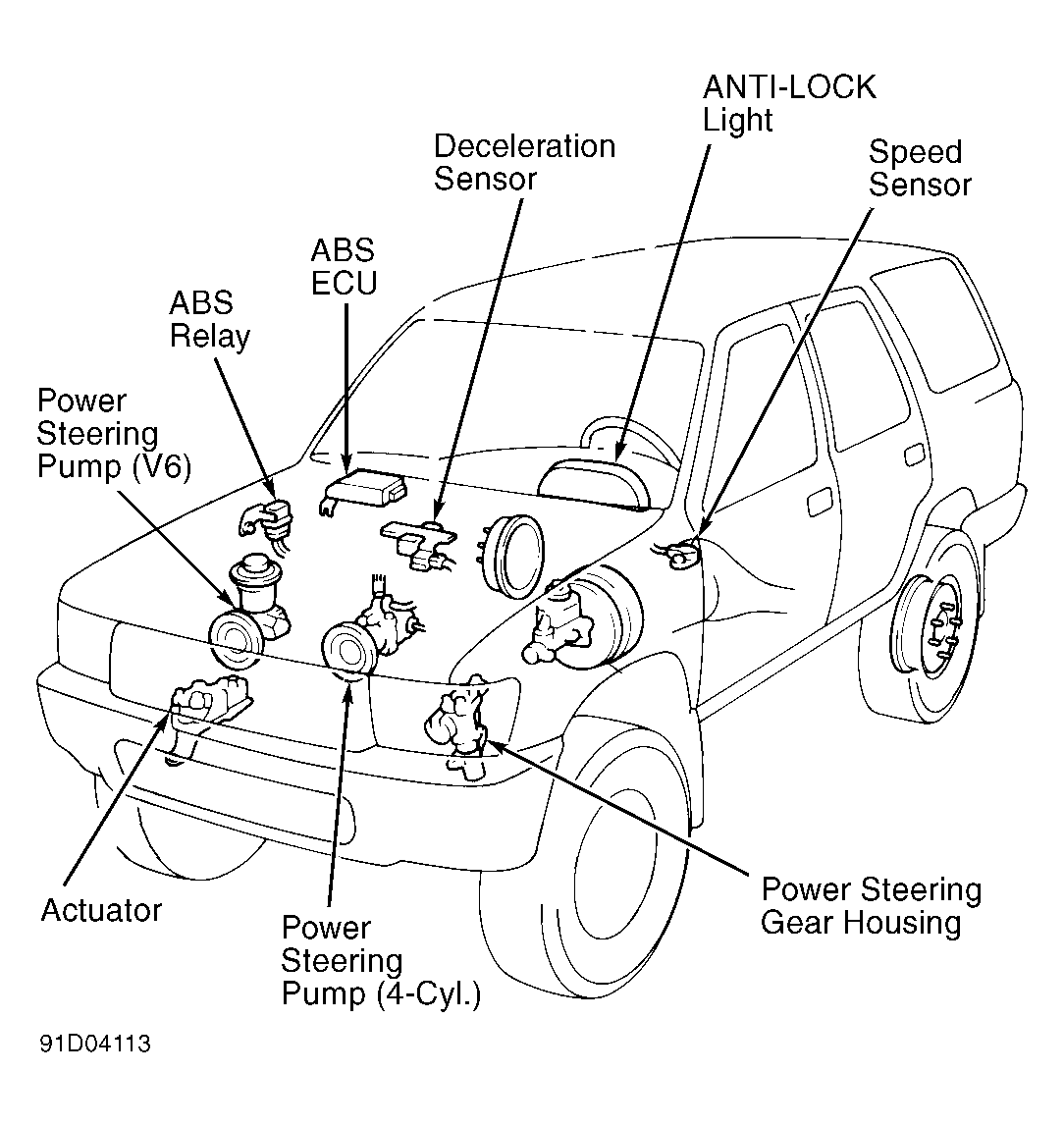

Fig 2: Locating ABS Components (4Runner)

NOTE: For more information on brake system, See BRAKE SYSTEM article in the BRAKES section.
