Headlight Control Relay (With Daytime Running Light System)

Inspect switch continuity between terminals. See Fig 1. If continuity not as specified, replace the switch.

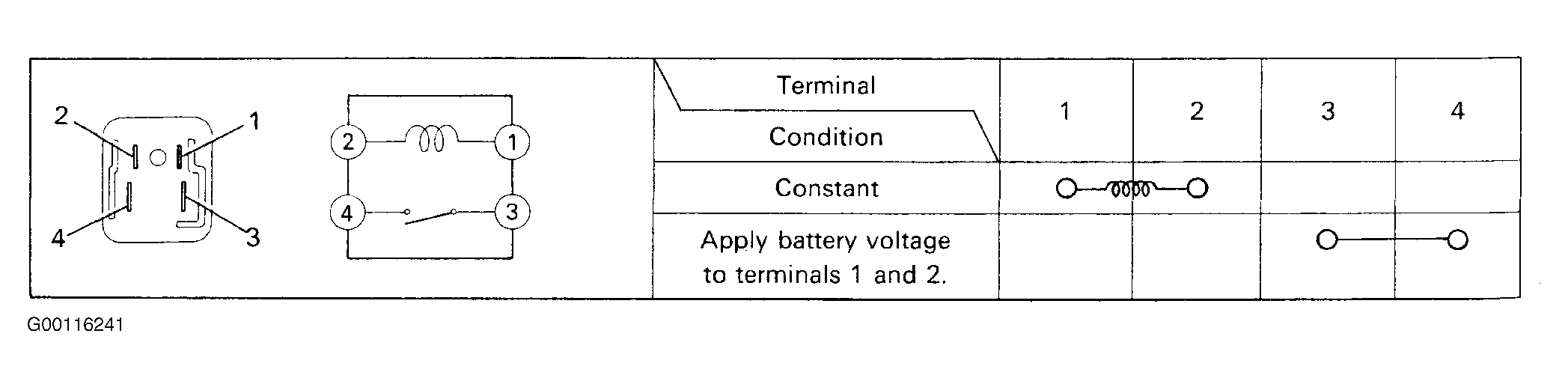

Fig 1: Testing Headlight Control Relay Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
