Component Locations

For component locations, refer to illustration. See Fig 1.

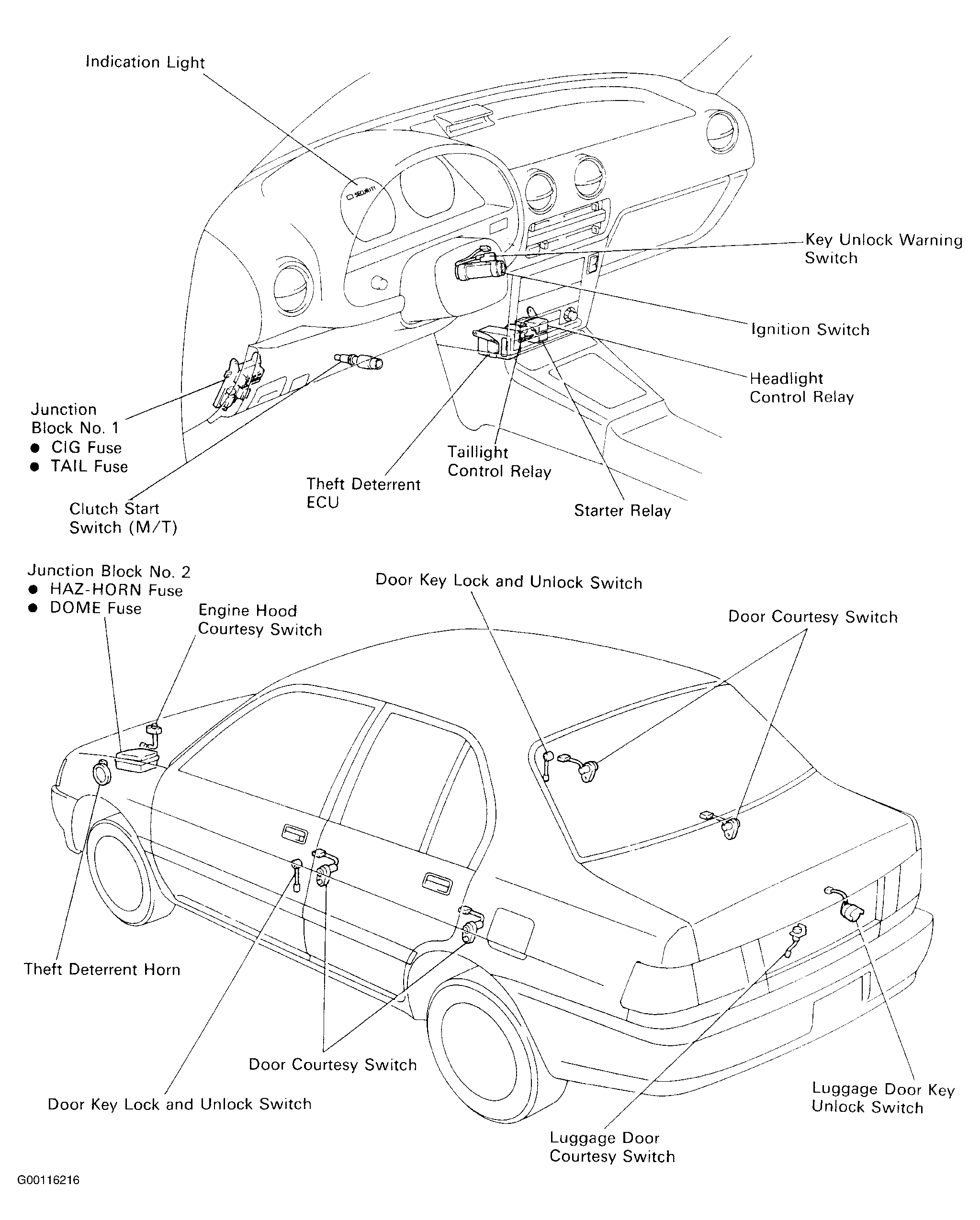

Fig 1: Locating Theft Deterrent Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

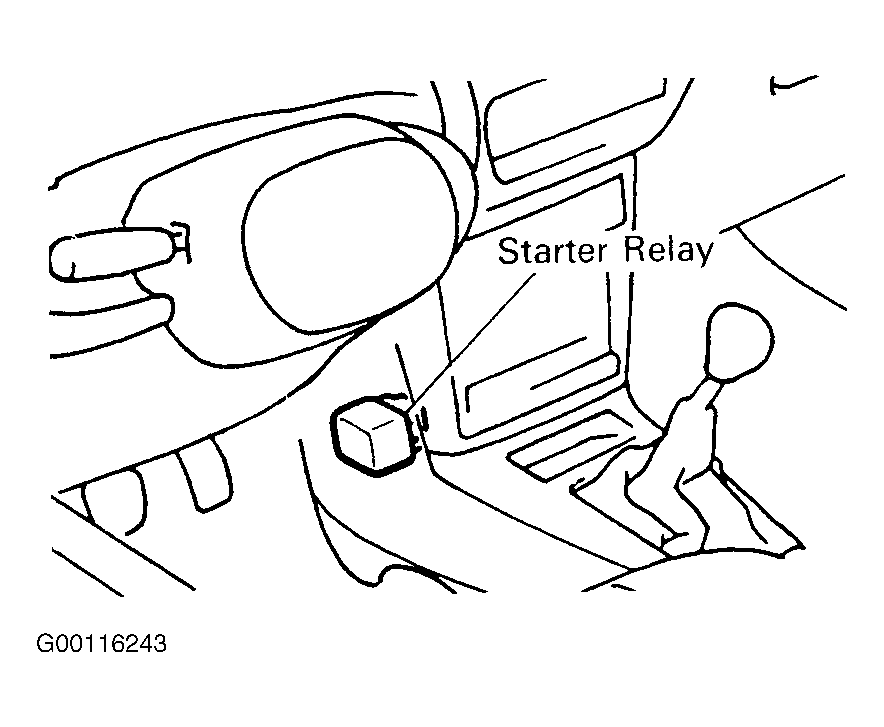

Fig 2: Identifying Starter Relay Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
