Test No. 12 - Stoplight Switch Circuit

TEST NO. 12 - STOPLIGHT SWITCH CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
STP-E1 No Voltage Stop Light Switch ON 10 - 14V
Fig 1: Test No. 12 Schematic Stoplight Switch Circuit
G91A18077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

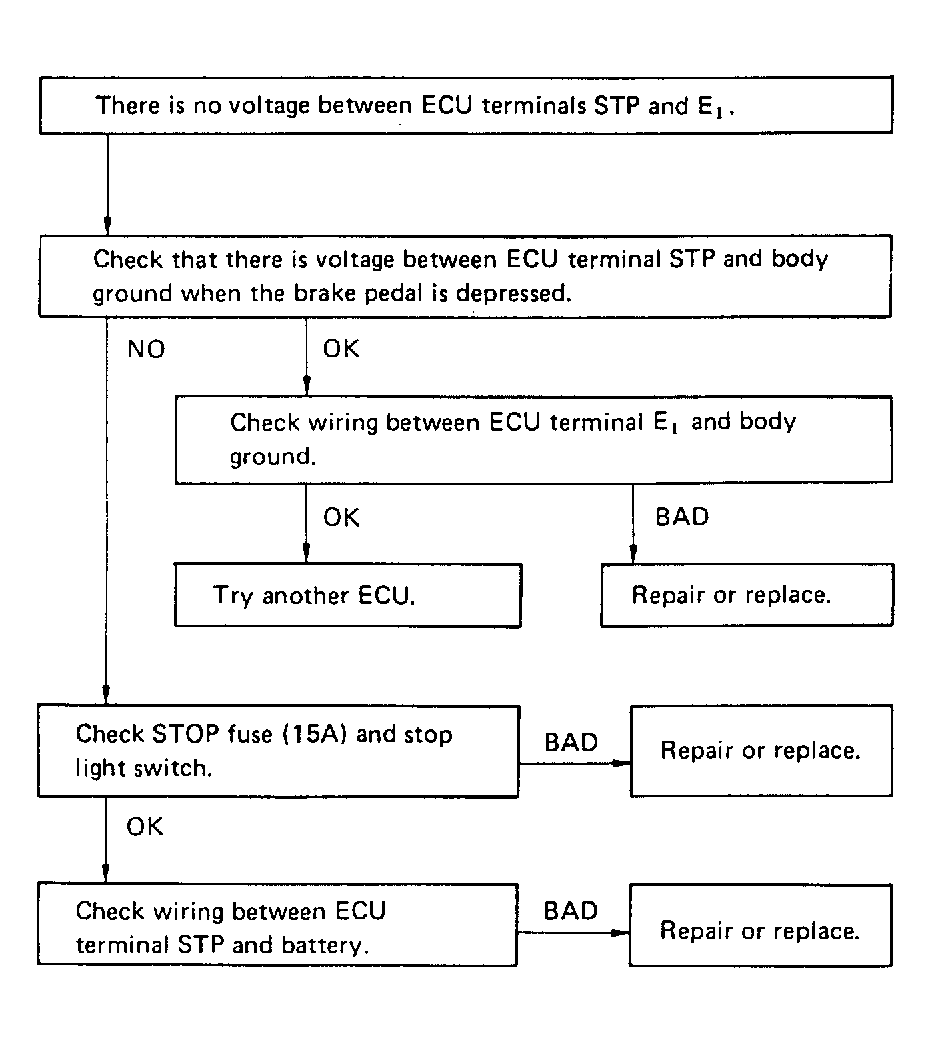

Fig 2: Test No. 12 Flow Chart Stoplight Switch Circuit
G91B18078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
