Code 41/Test No. 6 - Throttle Position Sensor Signal

CODE 41/TEST NO. 6-TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL-E2(E21)	No Voltage	IG SW ON-Throttle valve OPEN	8 - 14V
VCC-E2(E21)	"	IG SW ON-	4 - 6V
VTA-E2(E21)	"	IG SW ON-Throttle valve SHUT	0.1 - 1.0V
"	"	IG SW ON-Throttle valve OPEN	4 - 6V

Fig 1: Code 41/Test No. 6 Schematic Throttle Positions Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

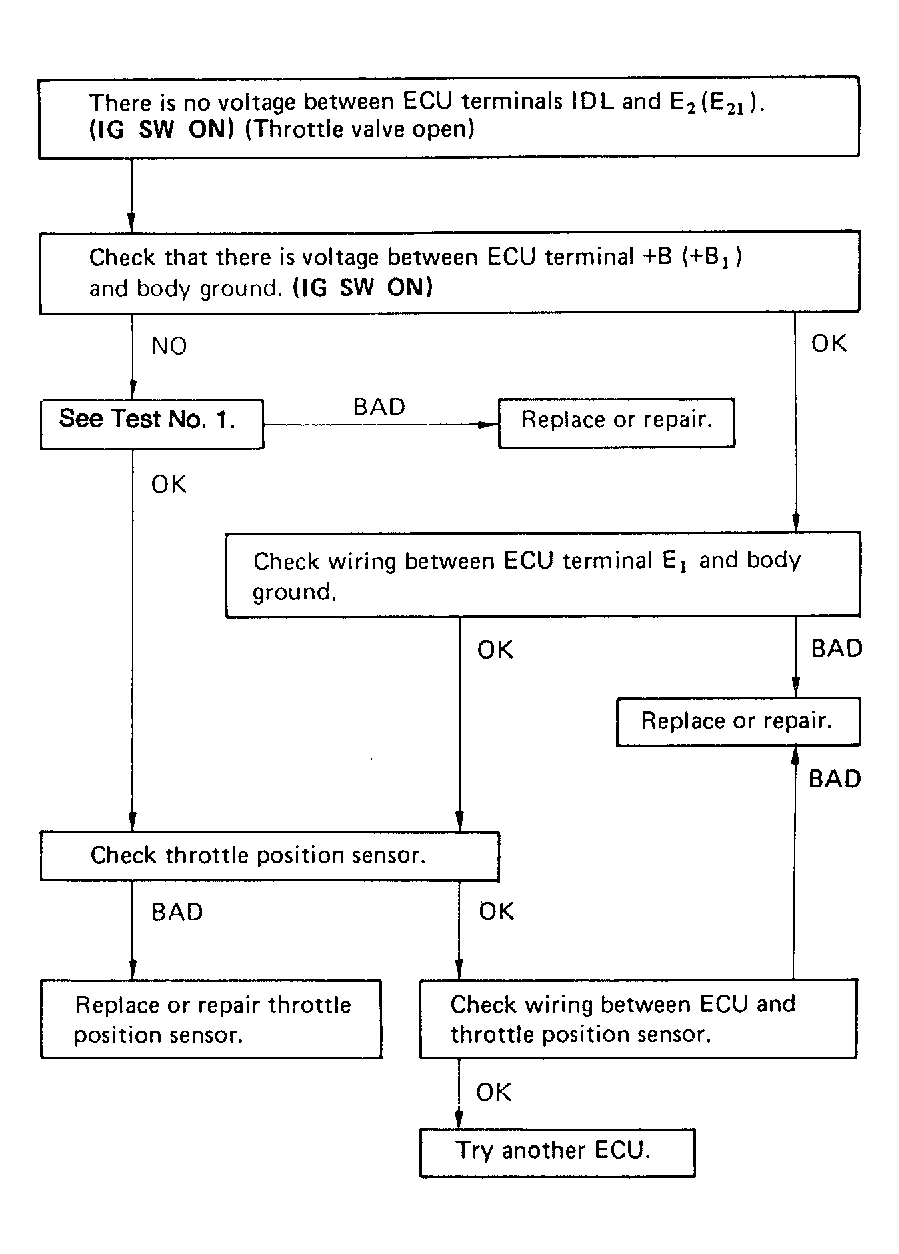

Fig 2: Code 41/Test No. 6 Flow Chart, Terminals IDL - E2 (E21) Throttle Positions Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

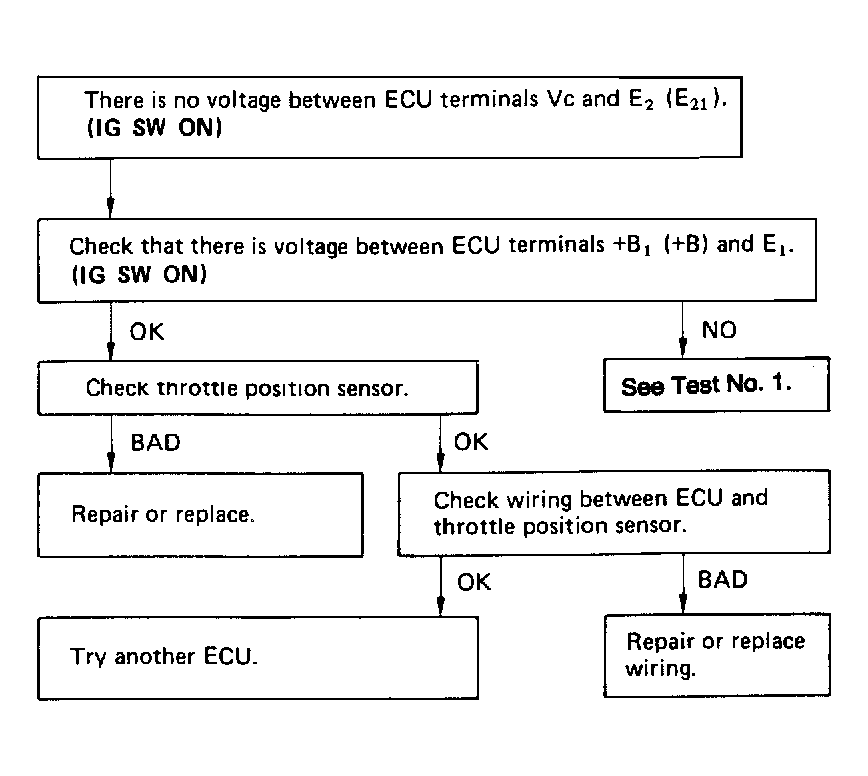

Fig 3: Code 41/Test No. 6 Flow Chart, Terminals Vc - E2 (E21) Throttle Positions Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

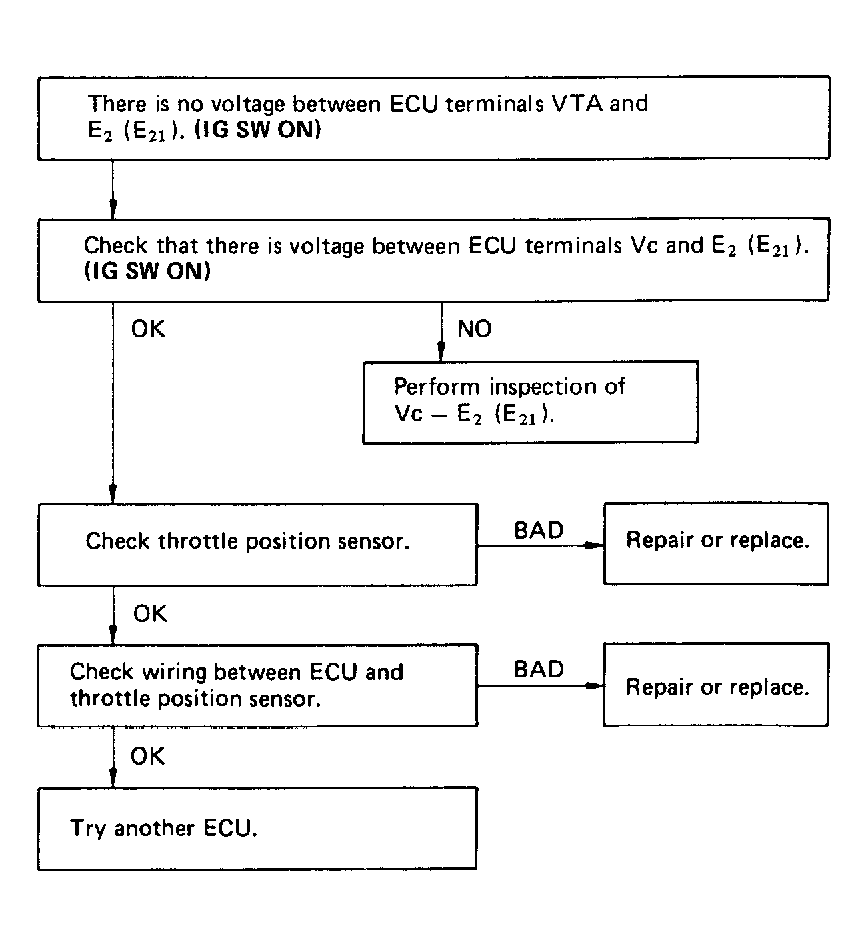

Fig 4: Code 41/Test No. 6 Flow Chart, Terminals VTA - E2 (E21) Throttle Positions Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
