Test No. 2 - Ecu (+B) Circuit

TEST NO. 2-ECU (+B) CIRCUIT TROUBLE

Terminals	Trouble	Condition	STD Voltage
+B - E1, +B1 - E1	No Voltage	Ignition Switch ON	10 - 14V

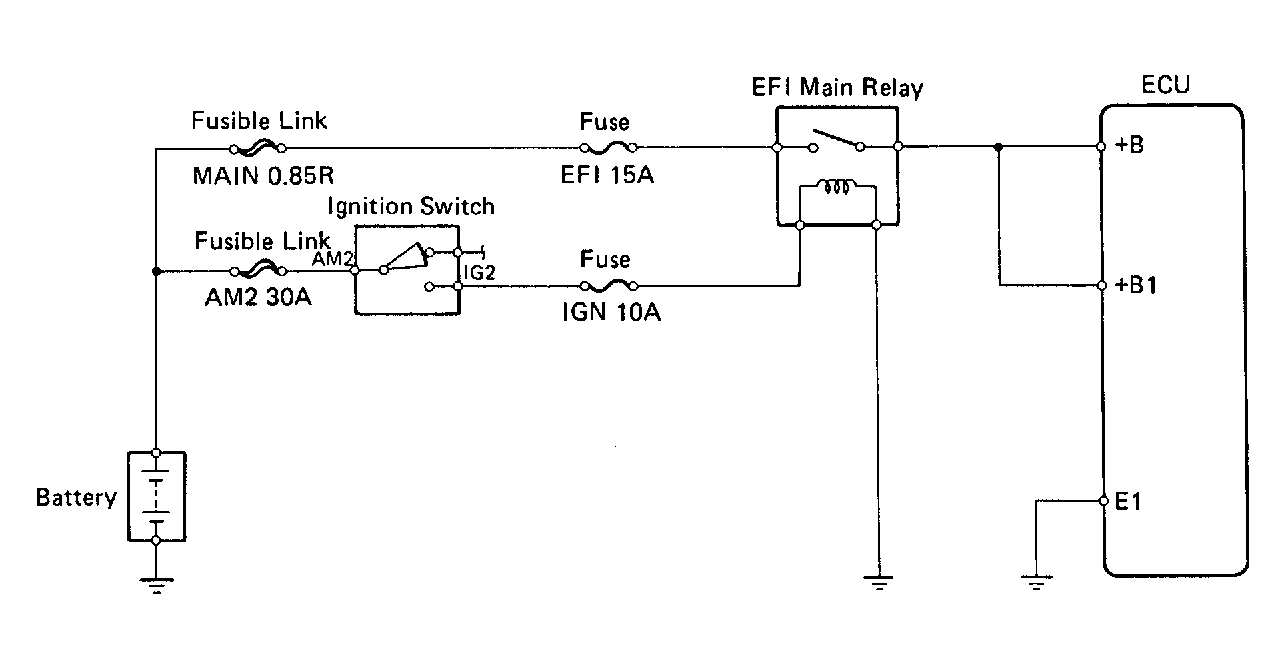

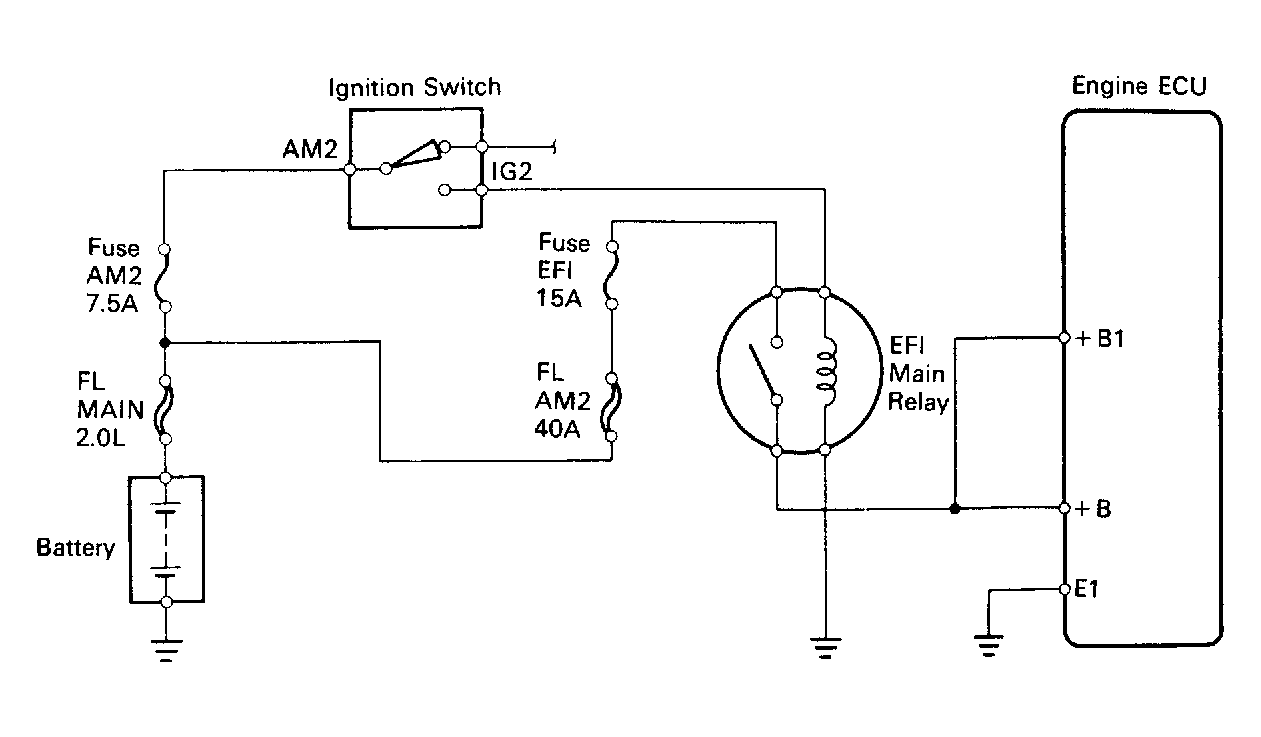

Fig 1: Test No. 2 Schematic ECU (+B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Test No. 2 Flow Chart ECU (+B)
