Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

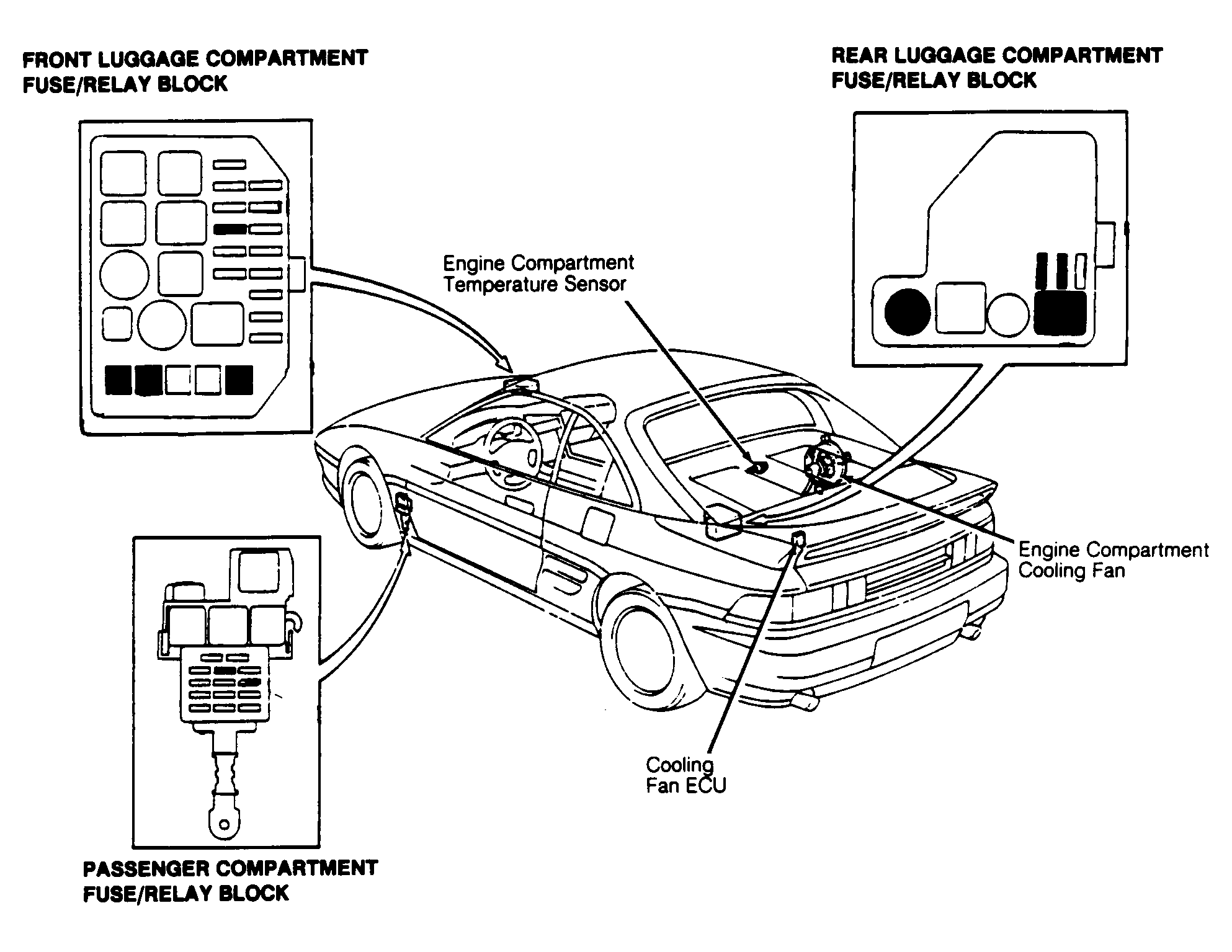

| Electronic Control Unit (ECU) Cooling Fan | On left rear of engine compartment. See Figure. |
| Cruise Control | Behind left side of dash, above glove box. |
| Engine | On left rear corner of engine compartment. See Figure & Figure . |
| Engine Oil Level | Behind passenger seat, behind door pillar panel. |
| Power Steering | On left of front luggage compartment. |
| Theft Deterrent System | Behind passenger seat, behind door pillar panel. |
| Transmission | On left rear corner of engine compartment. See Figure. |
