Preliminary Inspection
Verify customer complaint by operating system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses and damaged relays. For fuse and/or relay identification. See Figure and Figure .

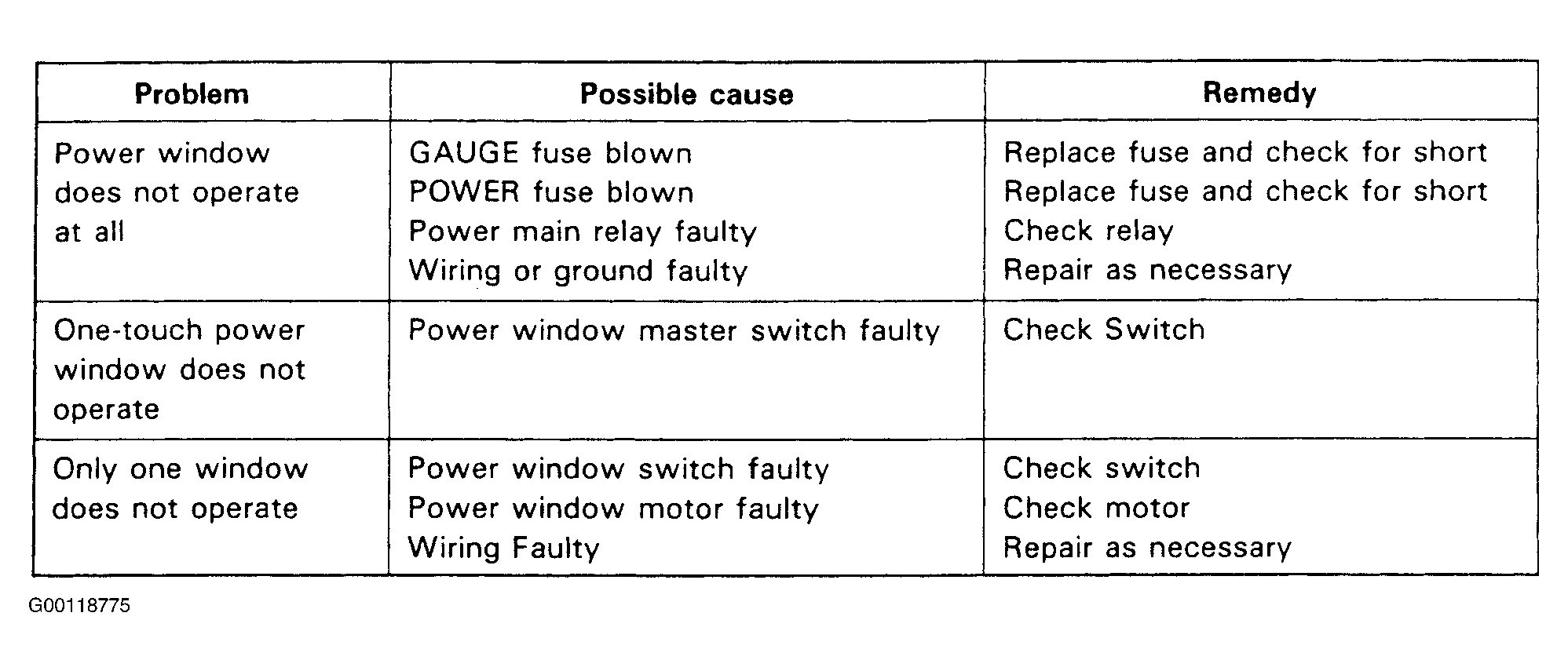

Inspect for loose or corroded connections, and damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. For preliminary troubleshooting guide, see Fig 1.
