Front Suspension (Supra)

  1. Ensure riding height, camber and steering axis inclination are correctly set. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, see appropriate adjustment procedure.

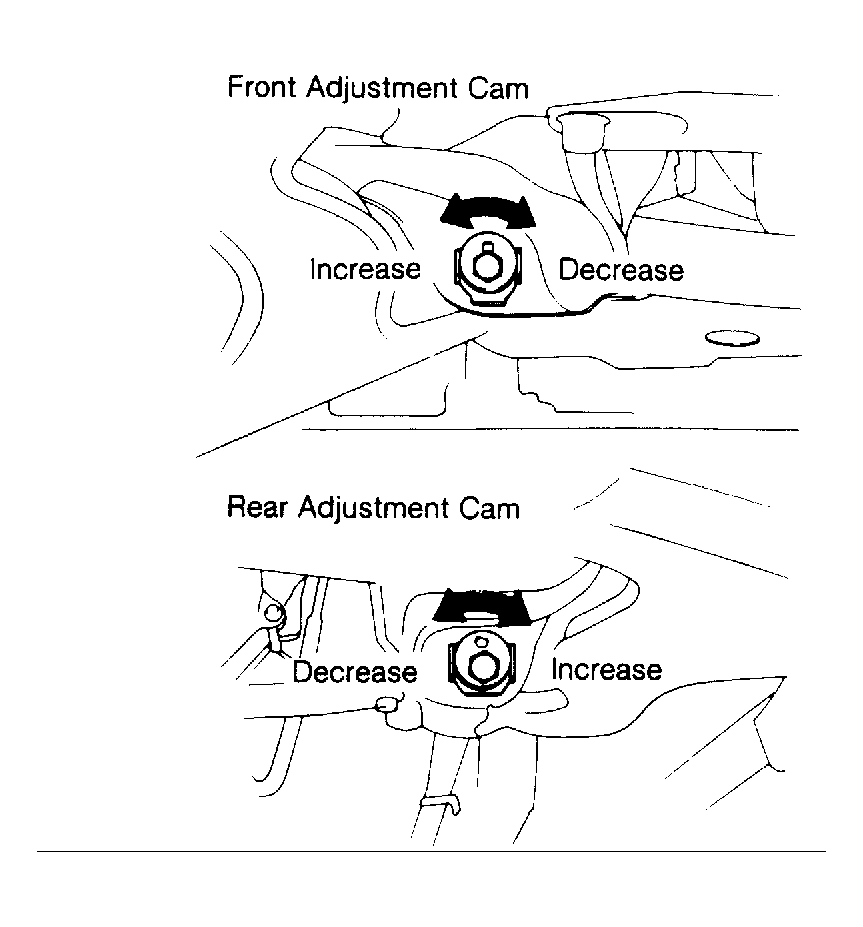

  2. Check caster of both front wheels. If caster is not within specification, loosen and turn adjustment cams. See Figure.
