CODE 43/TEST NO. 10-STARTER SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
STA-E1	No Voltage	Cranking	6-14V

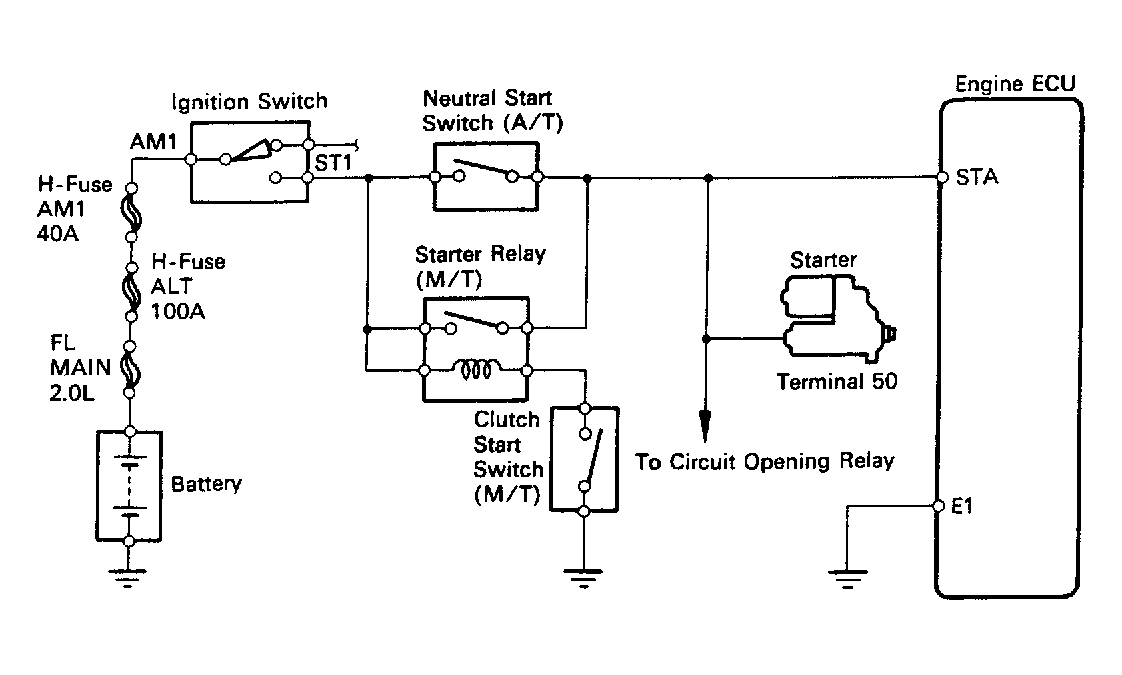

Fig 1: Code 43/Test No. 10 Schematic Starter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 43/Test No. 10 Component Diagram Starter Signal

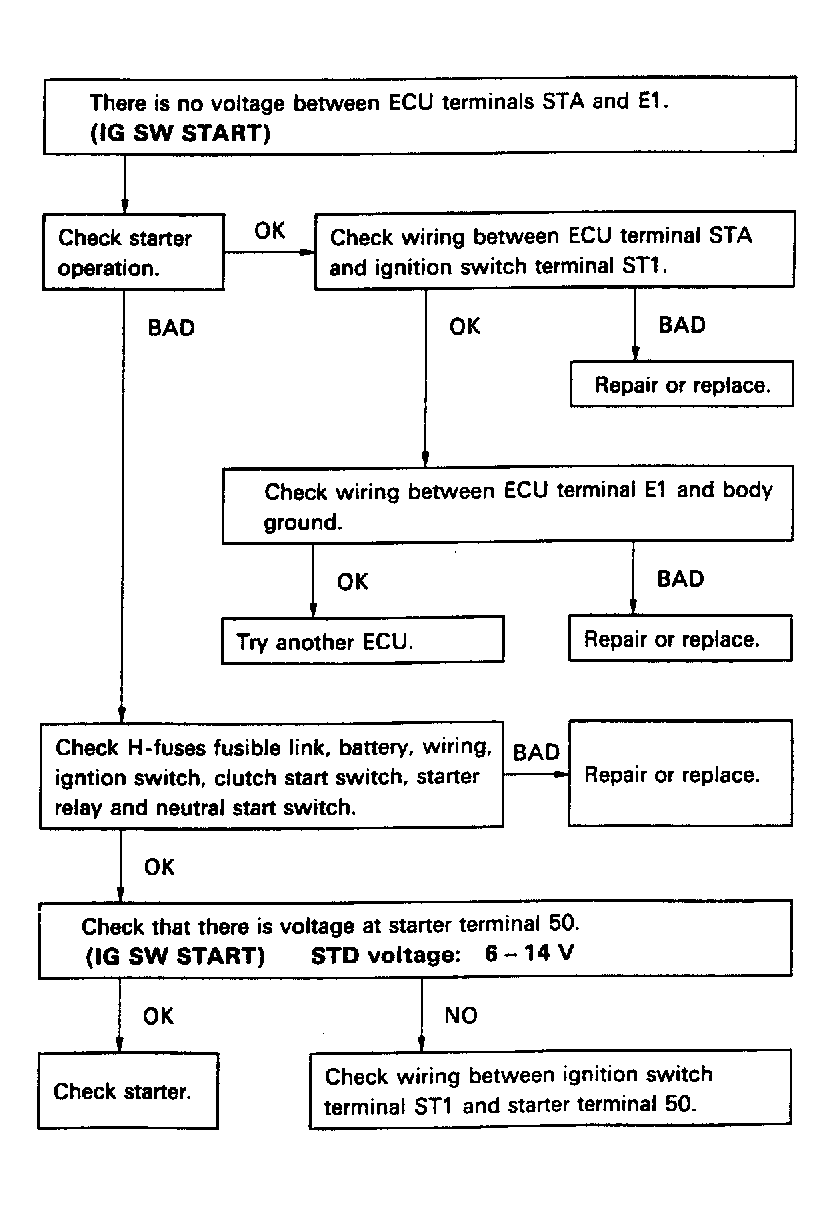

Fig 3: Code 43/Test No. 10 Flow Chart Starter Signal
