Pattern Select Switch

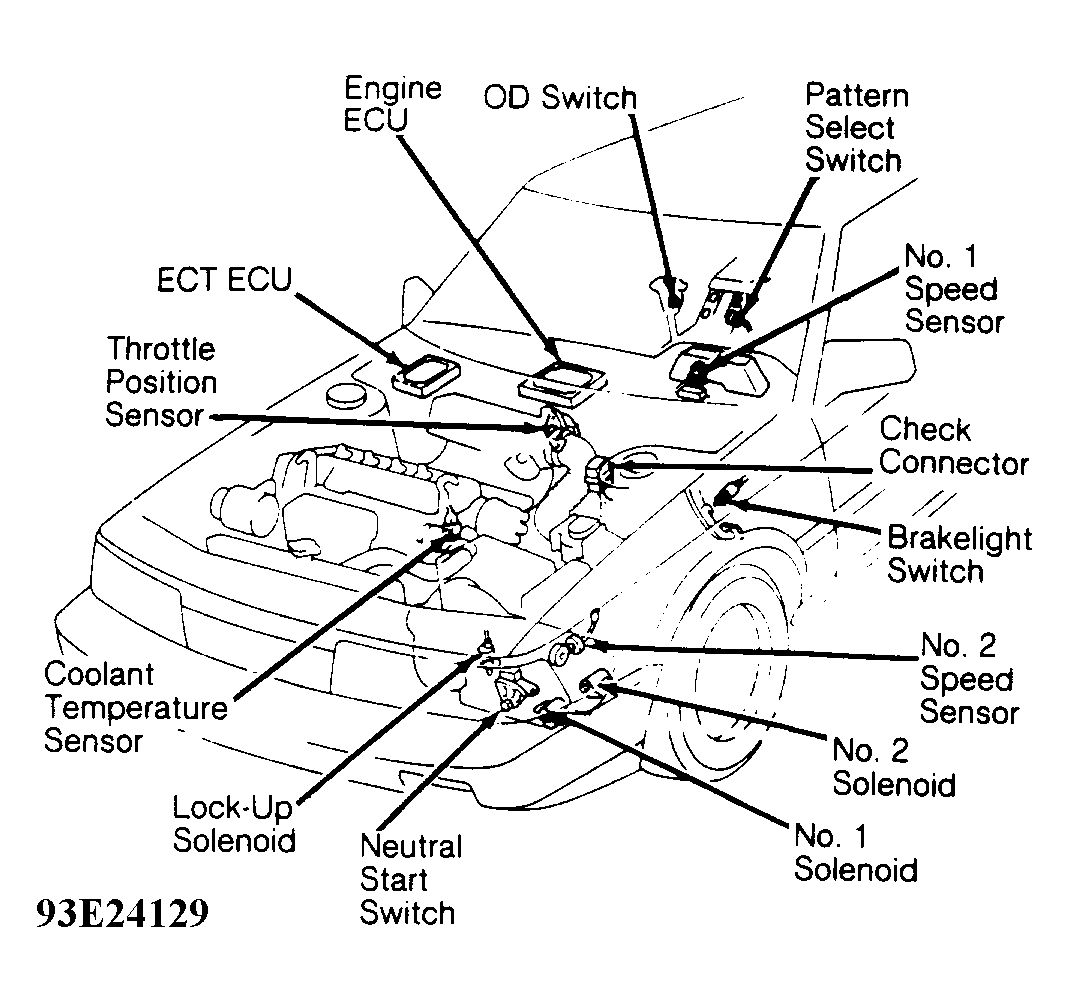

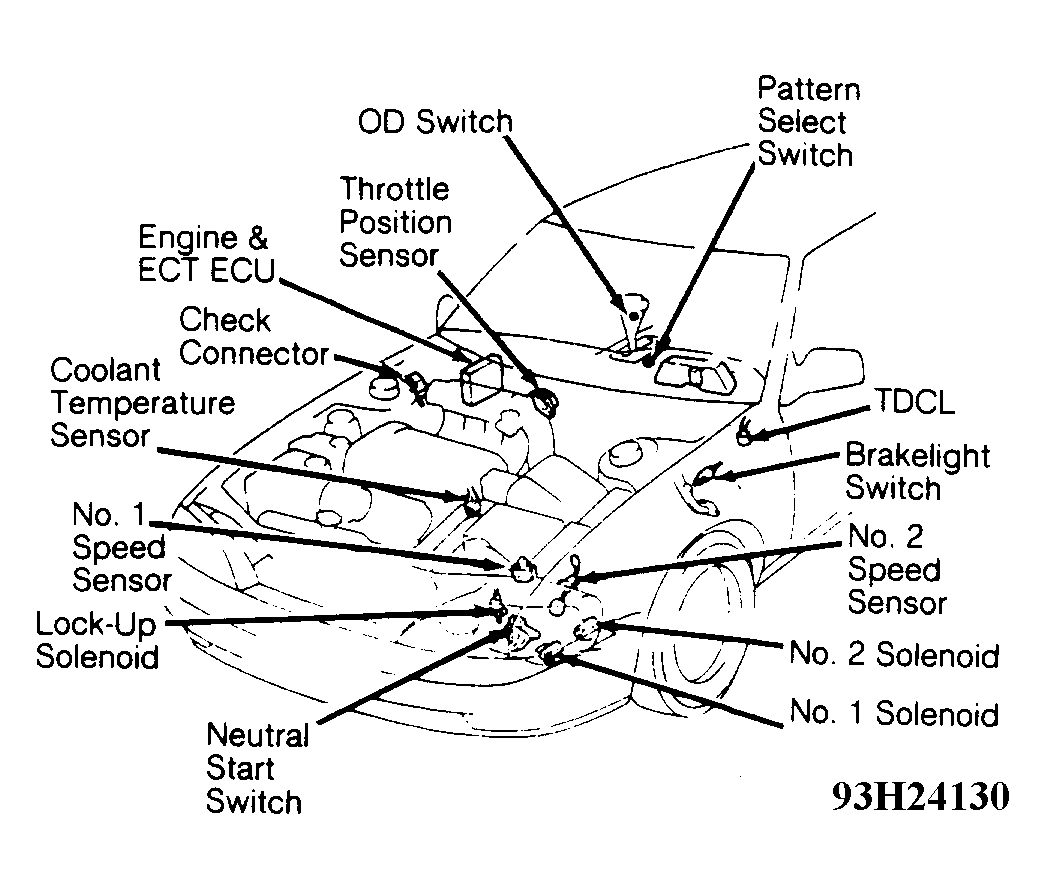

- Disconnect electrical connector from pattern select switch. Pattern select switch is located on center console (1991 models) or near shift lever (1992 models). See Figure and Figure .
- Note terminal identification on pattern select switch. See Fig 1 and Fig 2 . Using ohmmeter, check that continuity exists between specified terminals in accordance with the switch position. See PATTERN SELECT SWITCH CONTINUITY table. Replace switch if defective.
PATTERN SELECT SWITCH CONTINUITY
| Switch Position | Terminals No. | |
|---|---|---|
| 1991 Models | ||
| NORMAL (Released Position) | 5 & 6 | |
| POWER (Depressed Position) | 4 & 6 | |
| 1992 Models | ||
| NORMAL (Released Position) | 1 & 2 | |
| POWER (Depressed Position) | 1 & 2, 3 & 6 | |
