Test No. 9 - Injector Circuit

TEST NO. 9-INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No. 10-E01	No Voltage	Ignition Switch ON	10-14V
No. 20-E02	"	"	"

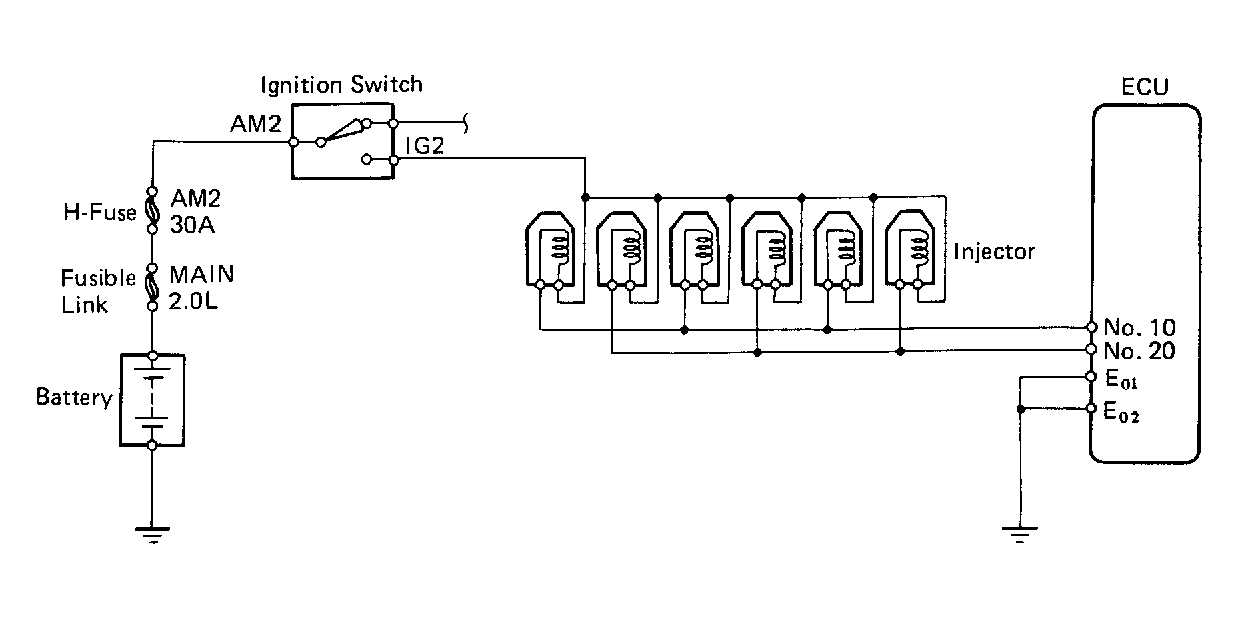

Fig 1: Test No. 9 Schematic Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Test No. 9 Flow Chart Injector Circuit
