Back Door Power Window Regulator Assembly: Notes

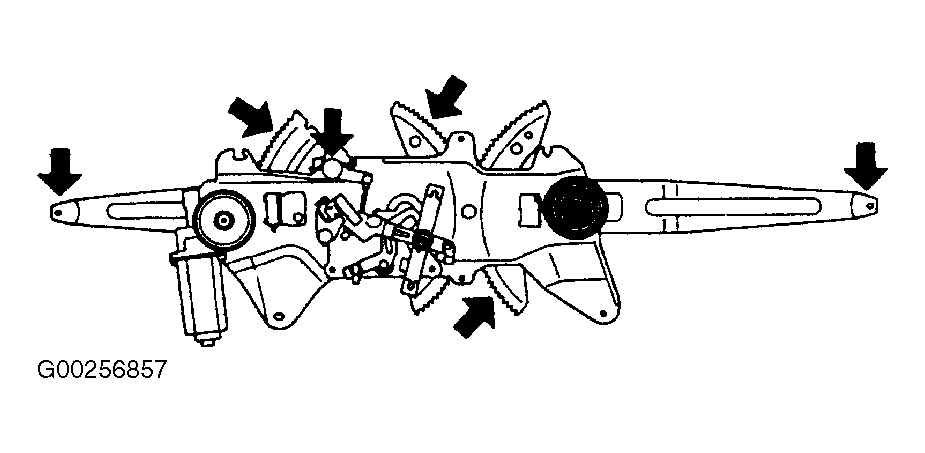

NOTE: Before installing back window regulator assembly, apply grease to sliding surfaces and gears of back window regulator assembly. DO NOT apply grease to spring on back window regulator assembly. See Figure.
