Corolla & Pickup

Start engine. Check that choke valve opens as choke housing is heated. Unplug choke heating coil connector. Using an ohmmeter, measure heating coil resistance. See Fig 2 or Fig 3. On Corolla, resistance should be 19-24 ohms at 68°F (20°C). On Pickup, resistance should be 19-23 ohms at 68°F (20°C).

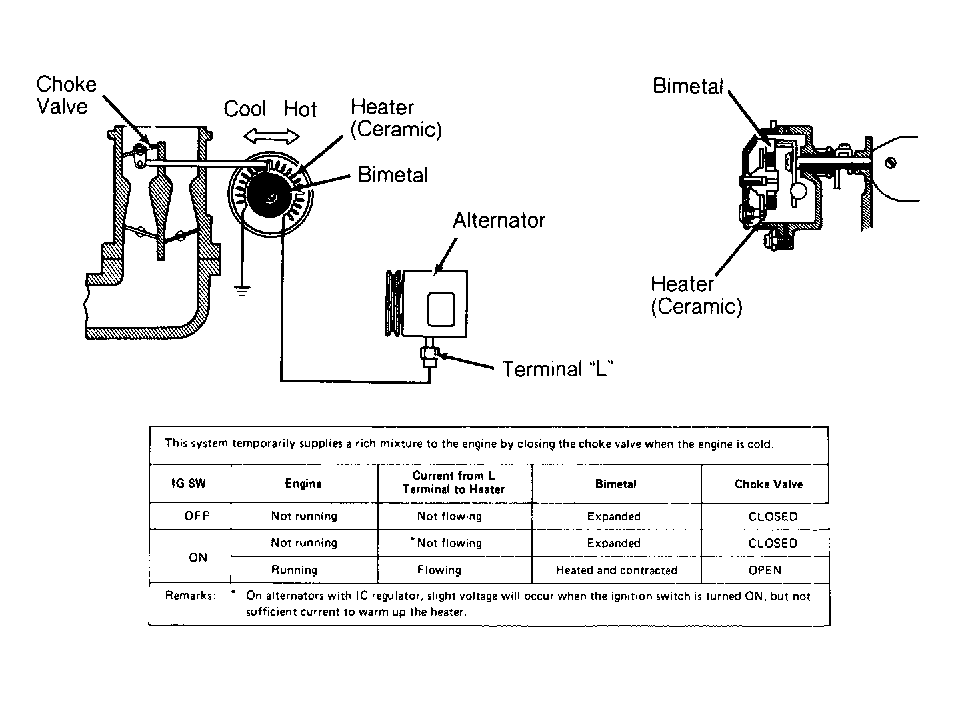

Fig 1: Auto Choke Comp & Parameters (Corolla & Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Choke Heating Coil Resistance Check (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Choke Heating Coil Resistance Check (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
