Test 7/Code 41 - Throttle Position Switch Signal
Test 7/Code 41 - Throttle Position Switch Signal

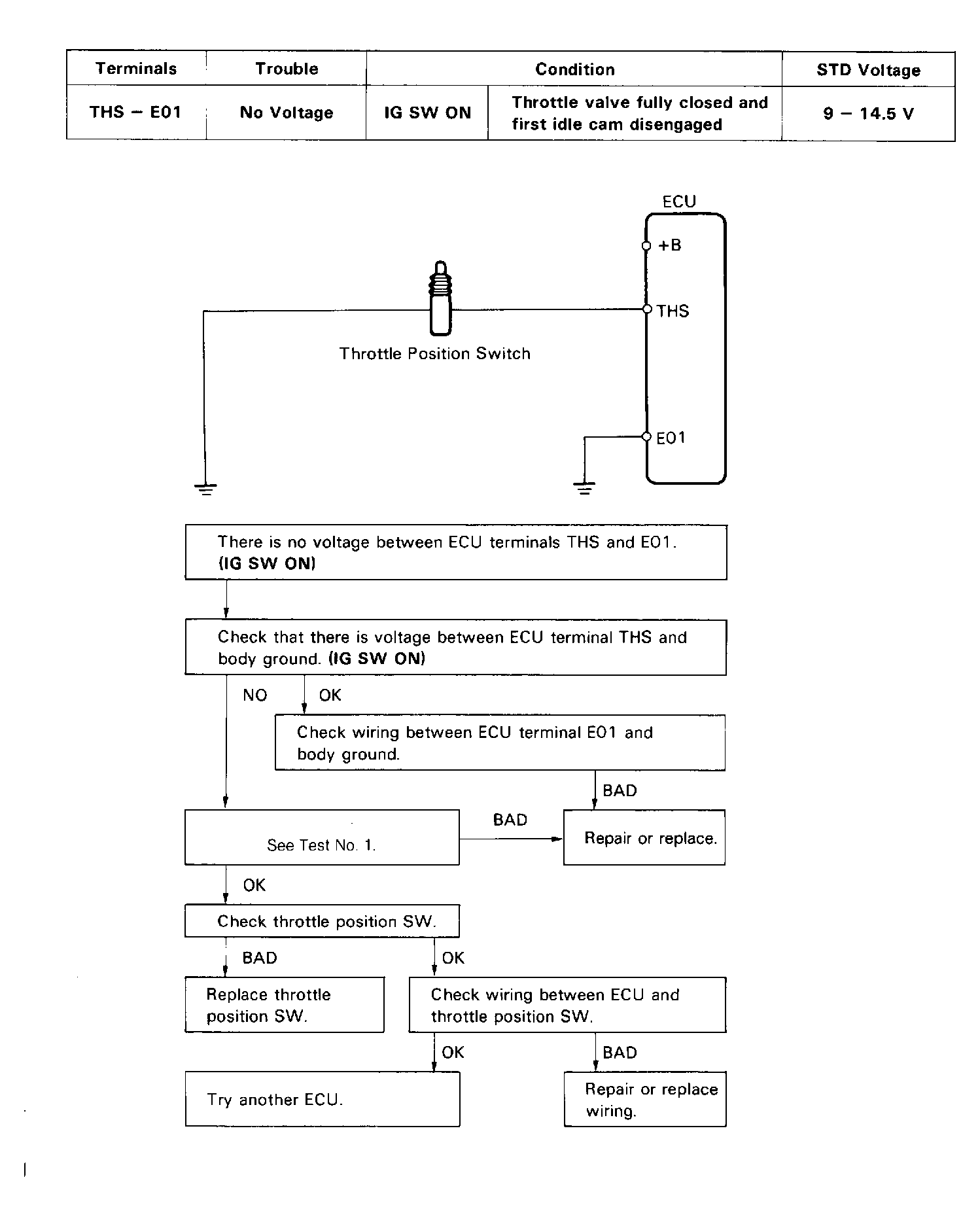

Fig 1: Test 7 or Code 41 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
