Parking Brake Switch

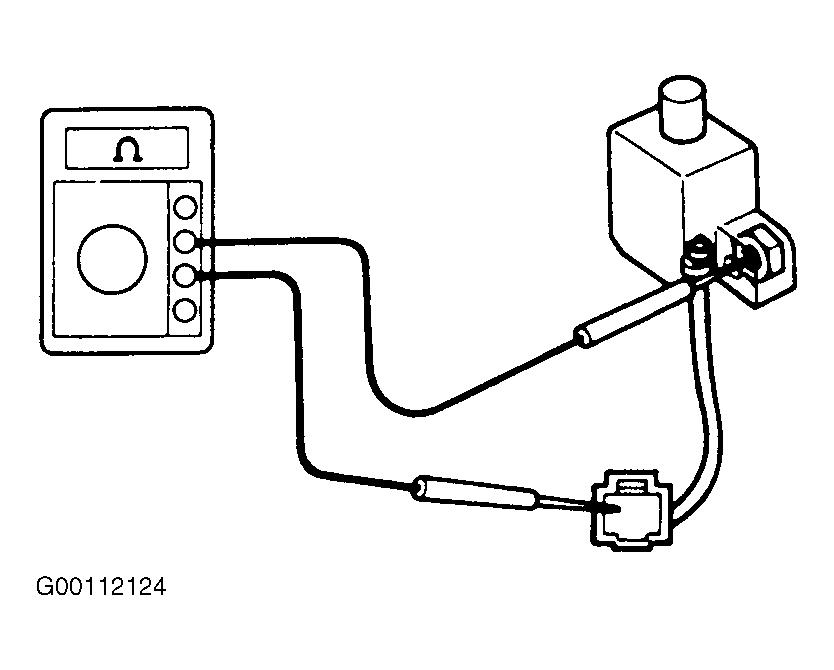

- Check that there is continuity between terminal and body with the switch free (parking brake lever pulled up.) See Fig 1.
- Check that there is no continuity between terminal and body with the switch pin pushed (with the parking brake lever released).
- If continuity is not as specified, replace the switch.
