Control Cable Freeplay

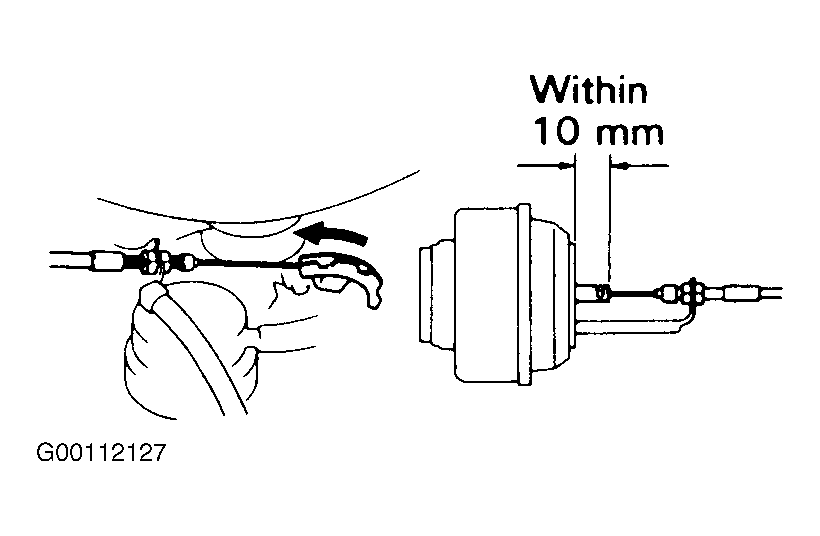

Measure the cable stroke to where the throttle valve begins to open. See Fig 1. Cable stroke should approximately be within 10 mm (0.39 in.) with slight amount of freeplay. If freeplay is not as specified, adjust the control cable freeplay, as necessary.
