Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Defogger | In passenger compartment fuse/relay block, behind left kick panel. | |
| Heater | In passenger compartment fuse/relay block, behind right kick panel. | |
| Power | In passenger compartment fuse/relay block, behind left kick panel. | |
| Fuse/Relay Blocks | ||
| Engine Compartment | On left front fender apron, behind battery. See Figure. | |

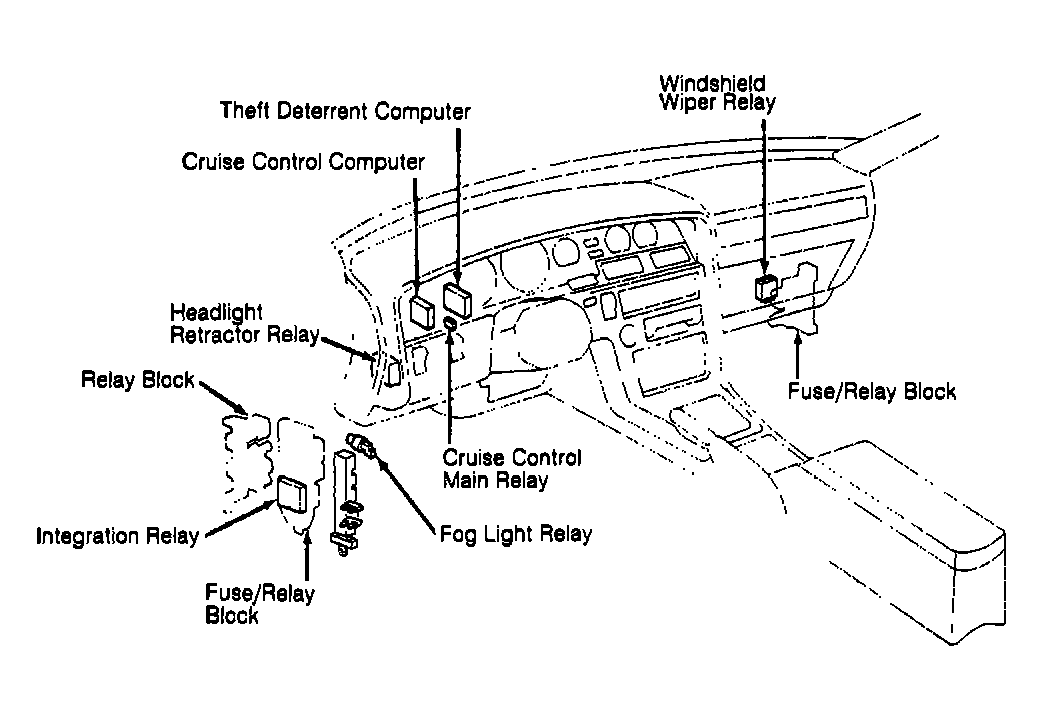

| Passenger Compartment | Behind left and right kick panel. See Figure. | |
| Fusible Links | In engine compartment fuse/relay block. | |
| Relay Block | Behind left kick panel. See Figure. | |
