Component Locations

For component location, refer to illustrations. See Fig 1 and Fig 2 .

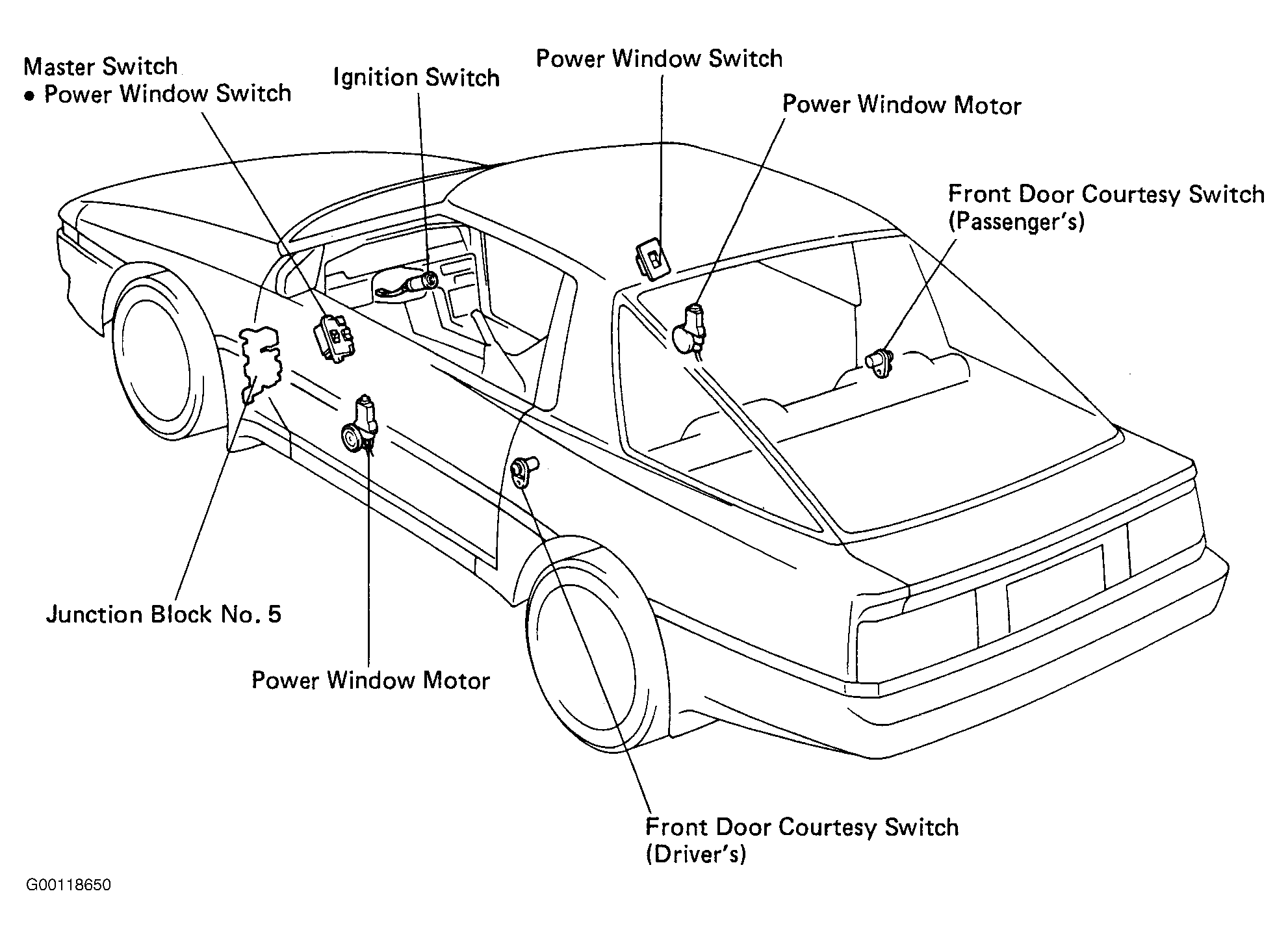

Fig 1: Locating Power Window System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

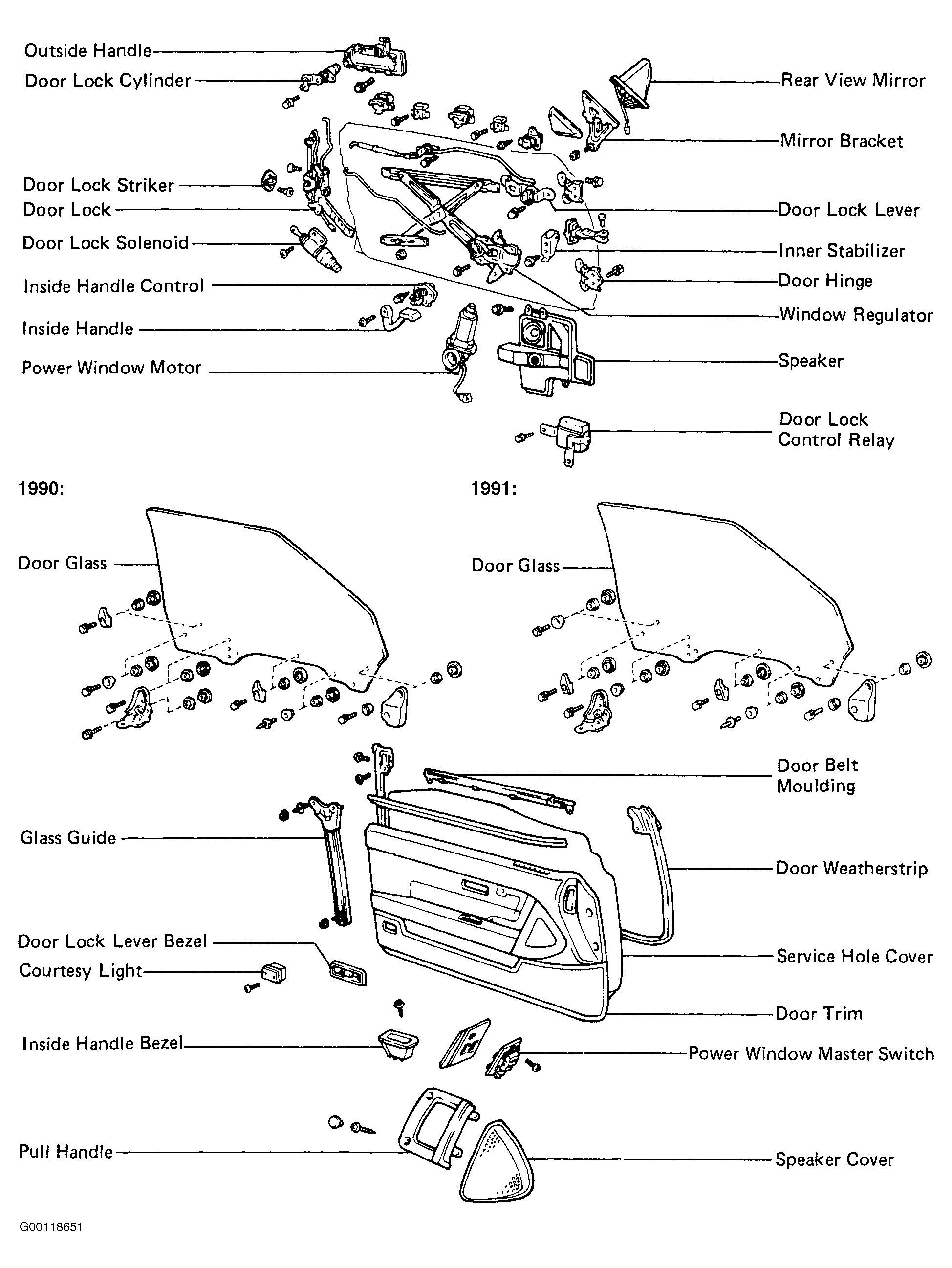

Fig 2: Locating Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

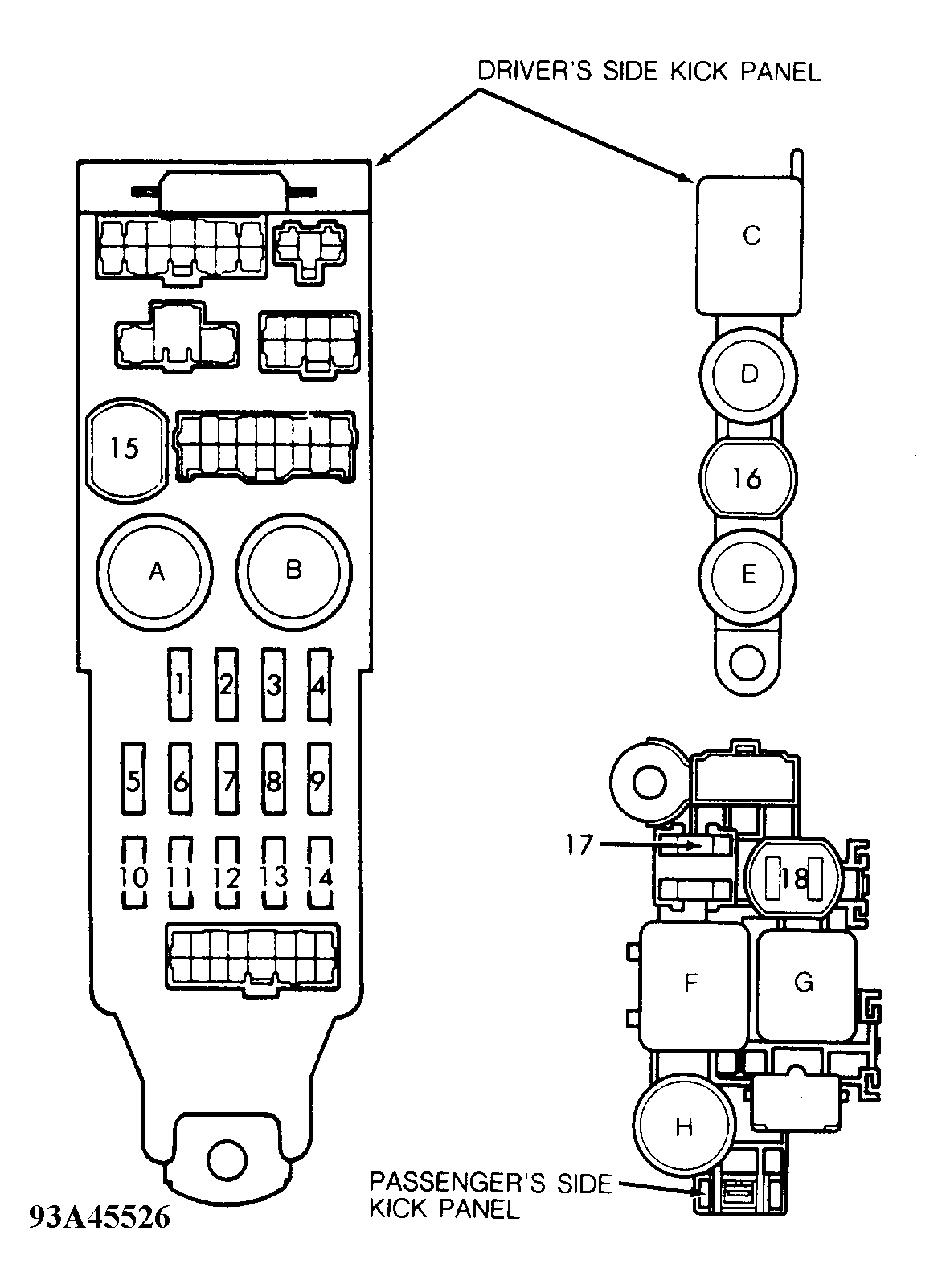

Fig 3: Identifying Junction Block Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Power window circuit ground is located in left kick panel, at junction block No. 1 bottom attaching bolt. Electrical components may be identified as follows:

• D

  Power main relay. See Fig 3.
• 16

  Power circuit breaker. See Fig 3.
• Fuse No. 1

  Gauge fuse. See Fig 3.
