Light Retractor Control Relay
- Turn the light control switch off. With connector connected, ground the terminal No. 14. Check that the headlights rise with the light illuminated. Quickly ground terminal No. 3. The light will go out, but the headlight should remain up. When terminal No. 3 is taken off ground, the headlights should flip down.NOTE: If operation is not as specified, replace the relay.

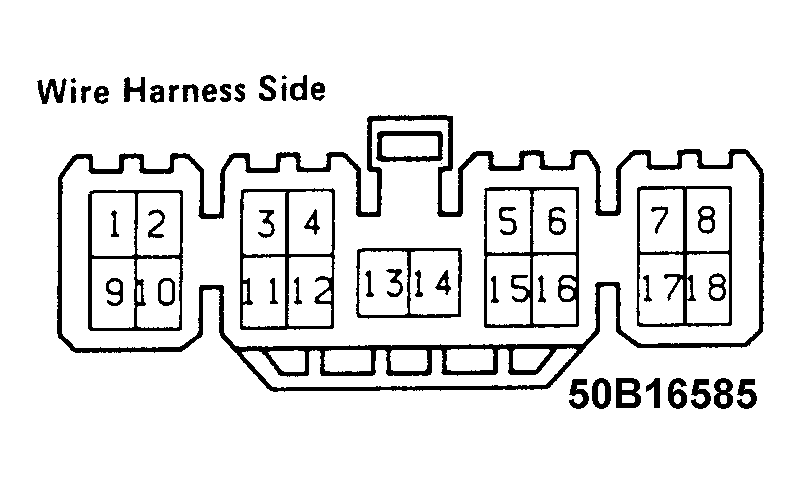

- Disconnect the relay and inspect the connector on the wire harness side. See Fig 1 and the following table.
TESTER CONNECTION INFORMATION - 2
| Check For | Tester Connection | Condition | Specified Value |
|---|---|---|---|
| Voltage | 8-Ground | All | B+ Volts |
| Continuity | 18-Ground | All | Continuity |
| Voltage | 4-Ground | Ignition switch OFF or ACC | No Volts |
| " | " | Ignition switch ON | B+ Volts |
| " | 2-Ground | All | B+ Volts |
| " | 10-Ground | All | B+ Volts |
| " | 15-Ground | Door courtesy switch OFF | B+ Volts |
| " | " | Door courtesy switch ON | No Volts |
| Continuity | 3-Ground | Light switch OFF or HEAD | Open |
| " | " | Light switch HOLD or TAIL | Continuity |
| " | 13-Ground | Light switch OFF or HOLD | Open |
| " | " | Light switch TAIL or HEAD | Continuity |
| " | 14-Ground | Light switch OFF, HOLD or HEAD | Open |
| " | " | Light switch HEAD or Dimmer switch Flash | Continuity |
| " | 6-Ground | All | Continuity |
| " | 16-Ground | All | Continuity |
| " | 5 - 1 | Headlight lowermost position | Open |
| " | " | Headlight exc. lowermost position | Continuity |
| " | 7 - 1 | Headlight lowermost position | Open |
| " | " | Headlight exc. lowermost position | Continuity |
| " | 5 - 9 | Headlight uppermost position | Open |
| " | " | Headlight exc. uppermost position | Continuity |
| " | 7 - 9 | Headlight uppermost position | Open |
| " | " | Headlight exc. uppermost position | Continuity |
| " | 11-Ground | Theft deterrent system does not operate | Open |
| " | " | Theft deterrent system is operating | Alternates Open/ Continuity |
NOTE:
If circuit is as specified, replace the relay.
