Steering System - Electronic: Description
The electronically controlled power steering system includes a speed sensor, computer, a solenoid valve and other conventional power steering components.

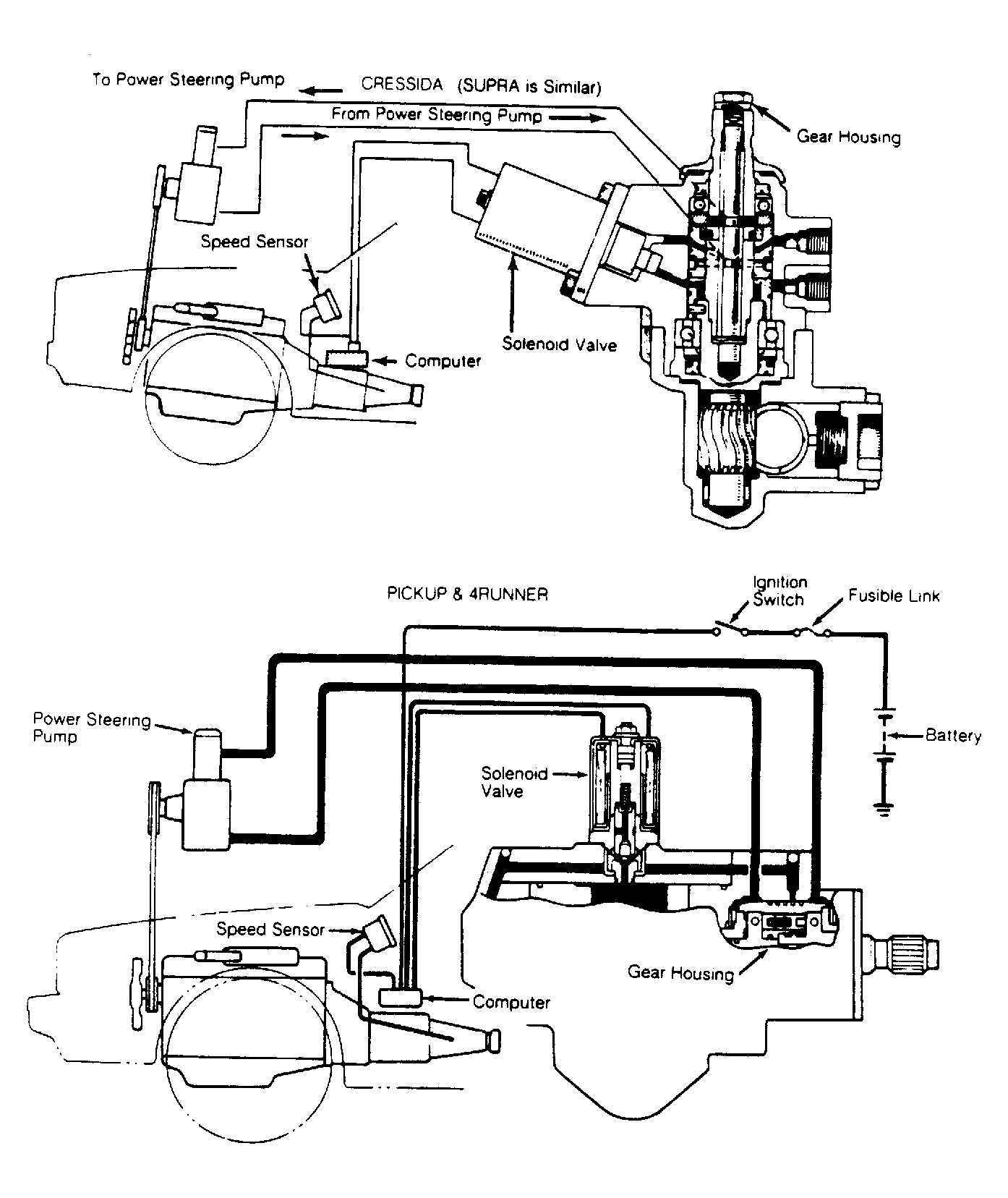

The computer controlled solenoid valve reduces hydraulic pressure to the rack at high speeds to increase steering effort and increases pressure to the rack at low speeds or when the vehicle is stationary to reduce steering effort. See Fig 1.
