Test 5: Rear Anti-Lock Brake System Works Inefficiently

See Fig 1.

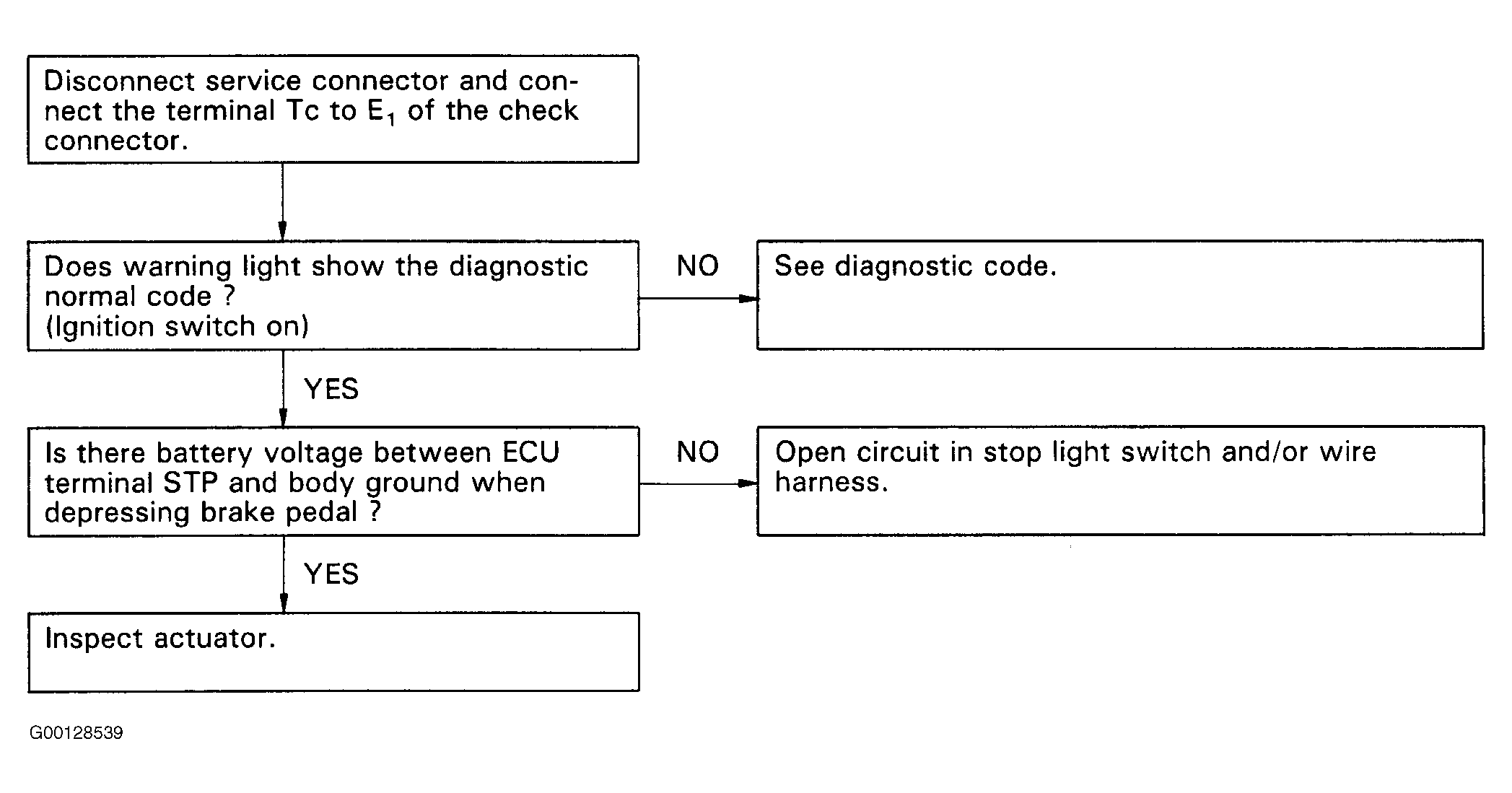

Fig 1: Test 5: Rear Anti-Lock Brake System Works Inefficiently Flow Chart

G00128539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
