Test 4: Brake System Fault

For test procedure, refer to illustration. See Fig 1.

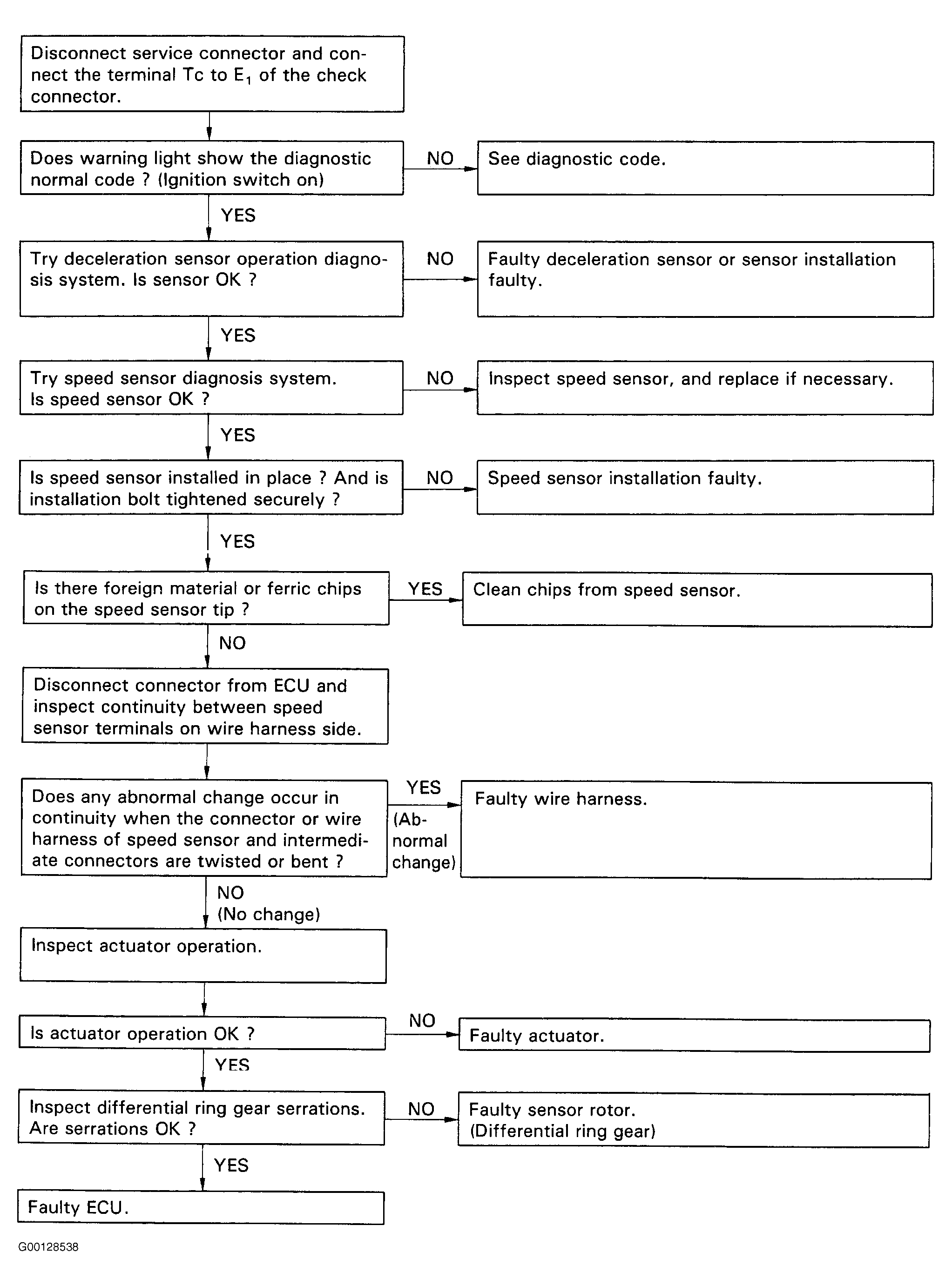

Fig 1: Test 4: Brake System Fault Flow Chart
G00128538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
