Solenoid Relay

  1. Inspect the relay continuity between terminals. See Fig 1.
  2. If relay operation is not as specified, replace the solenoid relay. See Fig 2. For relay internal wiring, see WIRING DIAGRAMS .

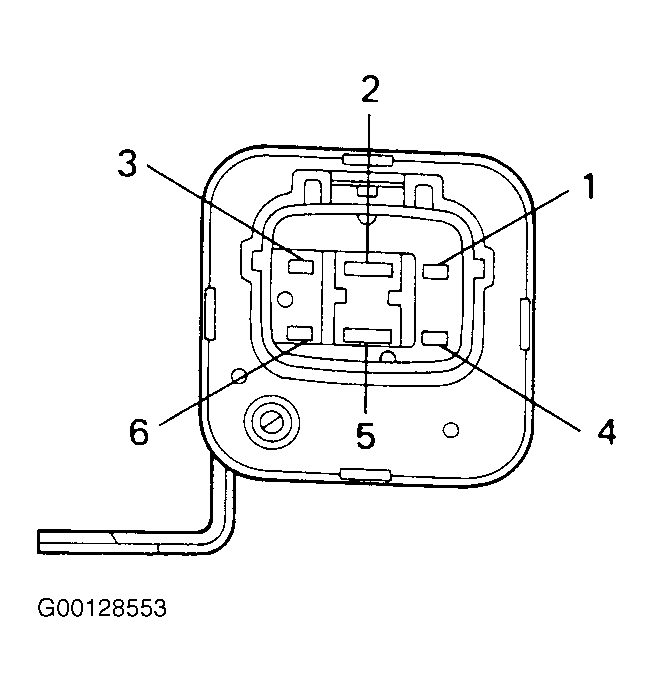

Fig 1: Identifying Solenoid Relay Terminals
G00128553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

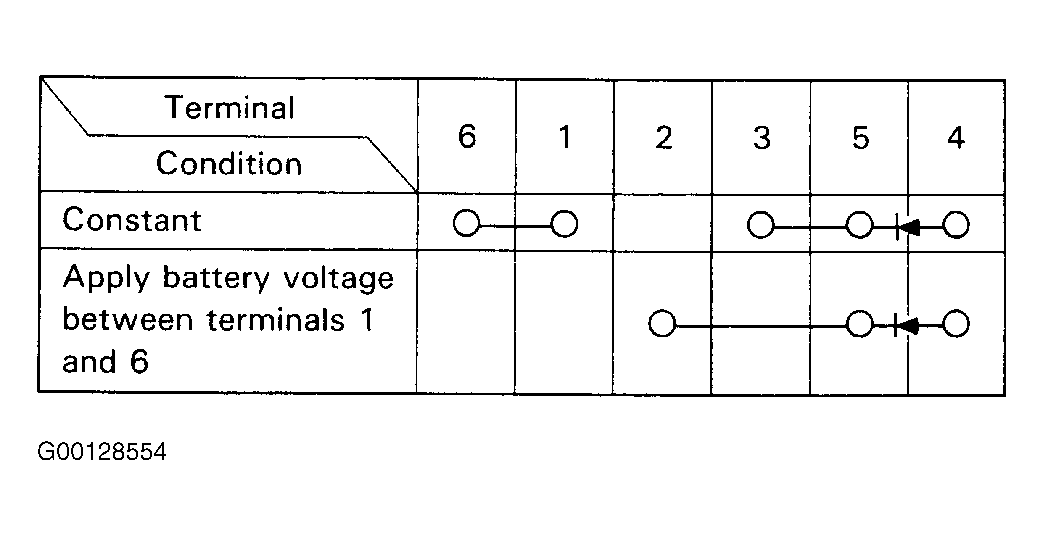

Fig 2: Testing Solenoid RelayCircuits
G00128554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
