Mirror Switch

  1. Inspect switch continuity between terminals. See Fig 1.
  2. If continuity is not as specified, replace the switch.

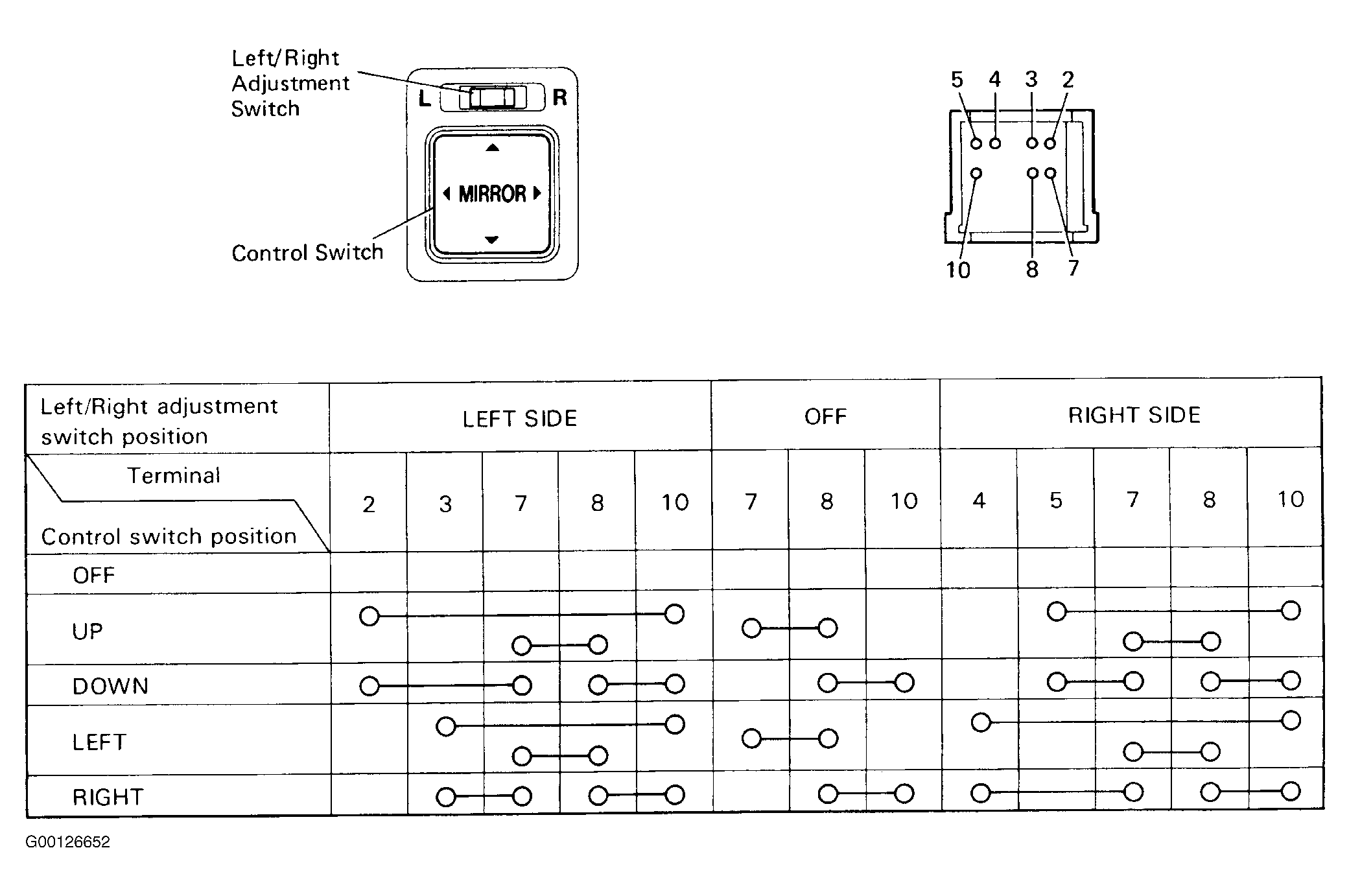

Fig 1: Testing Mirror Switch Continuity
G00126652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
