Door Lock Control Relay: Notes

Disconnect the connector from the relay. Inspect the connector on the wire harness side as shown. See Fig 1 and Fig 2 .
If circuit is as specified, inspect the door lock signal and key-off power window signal.

Fig 1: Identifying Door Lock Control Relay Wiring Harness Terminals

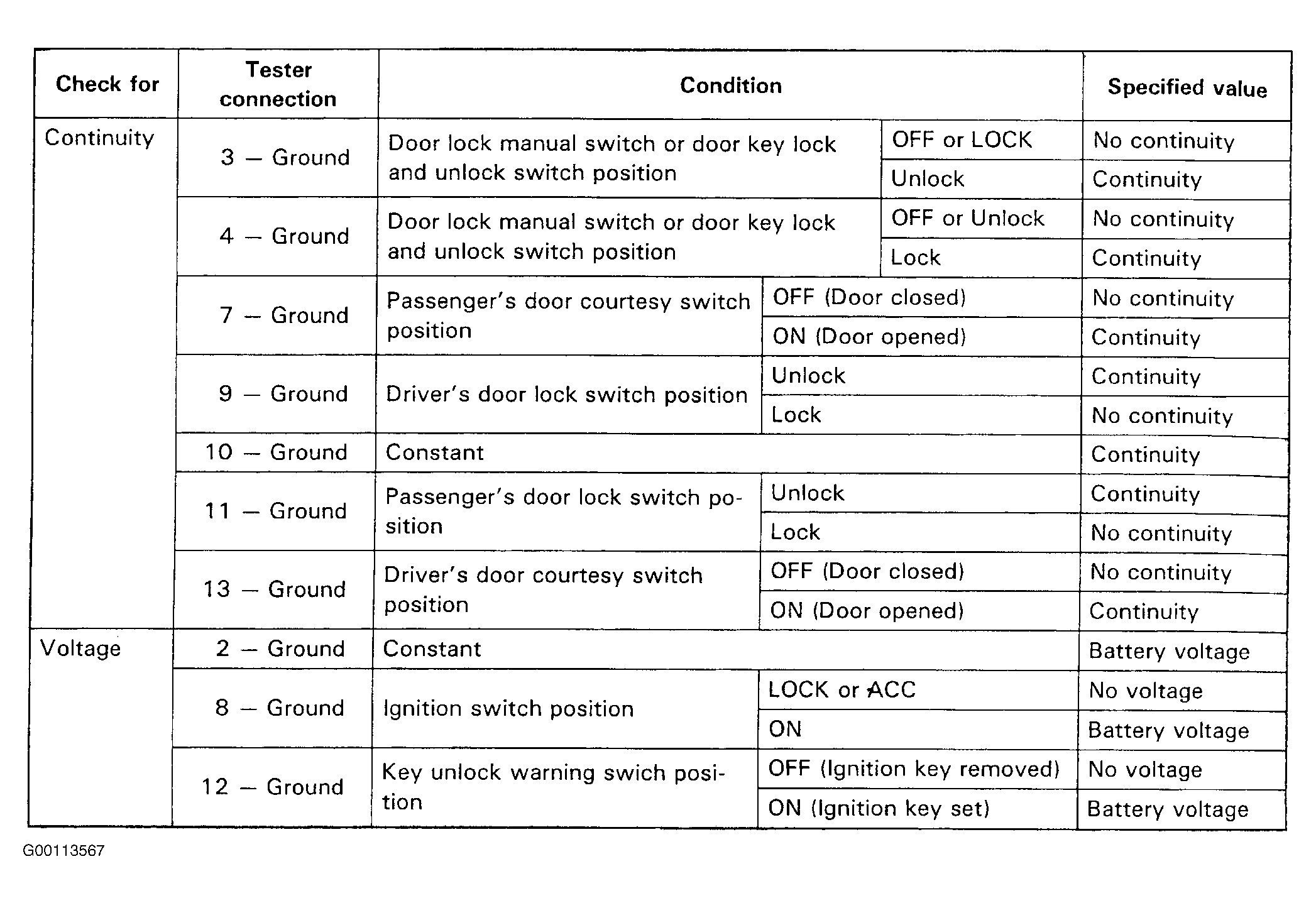

Fig 2: Testing Door Lock Control Relay Circuits
