Test 9 - Injector Circuit

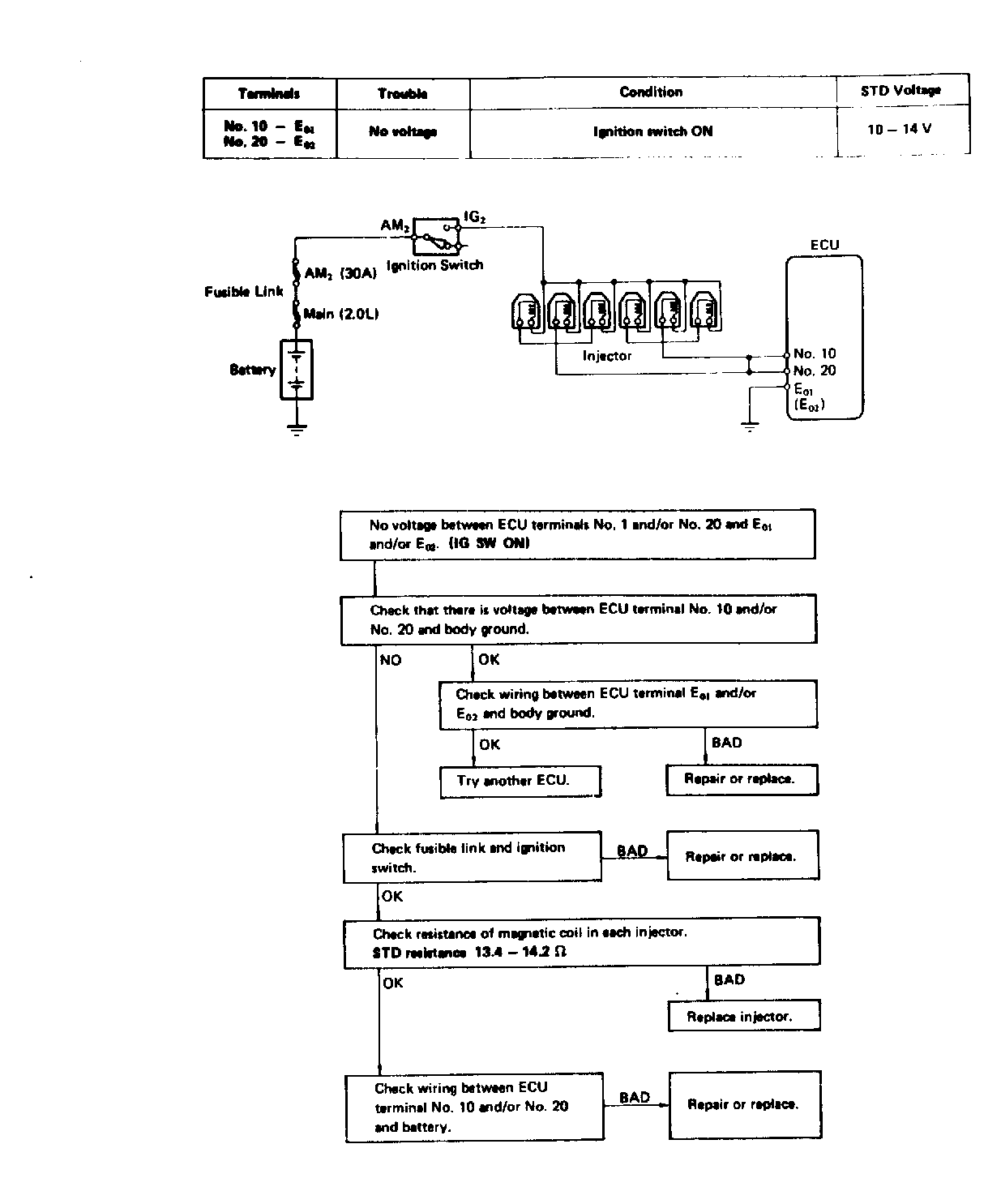

Fig 1: Test 9 Diagram & Flow Chart

G118806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
