Test 6 Or Code 41 - Throttle Position Sensor Signal

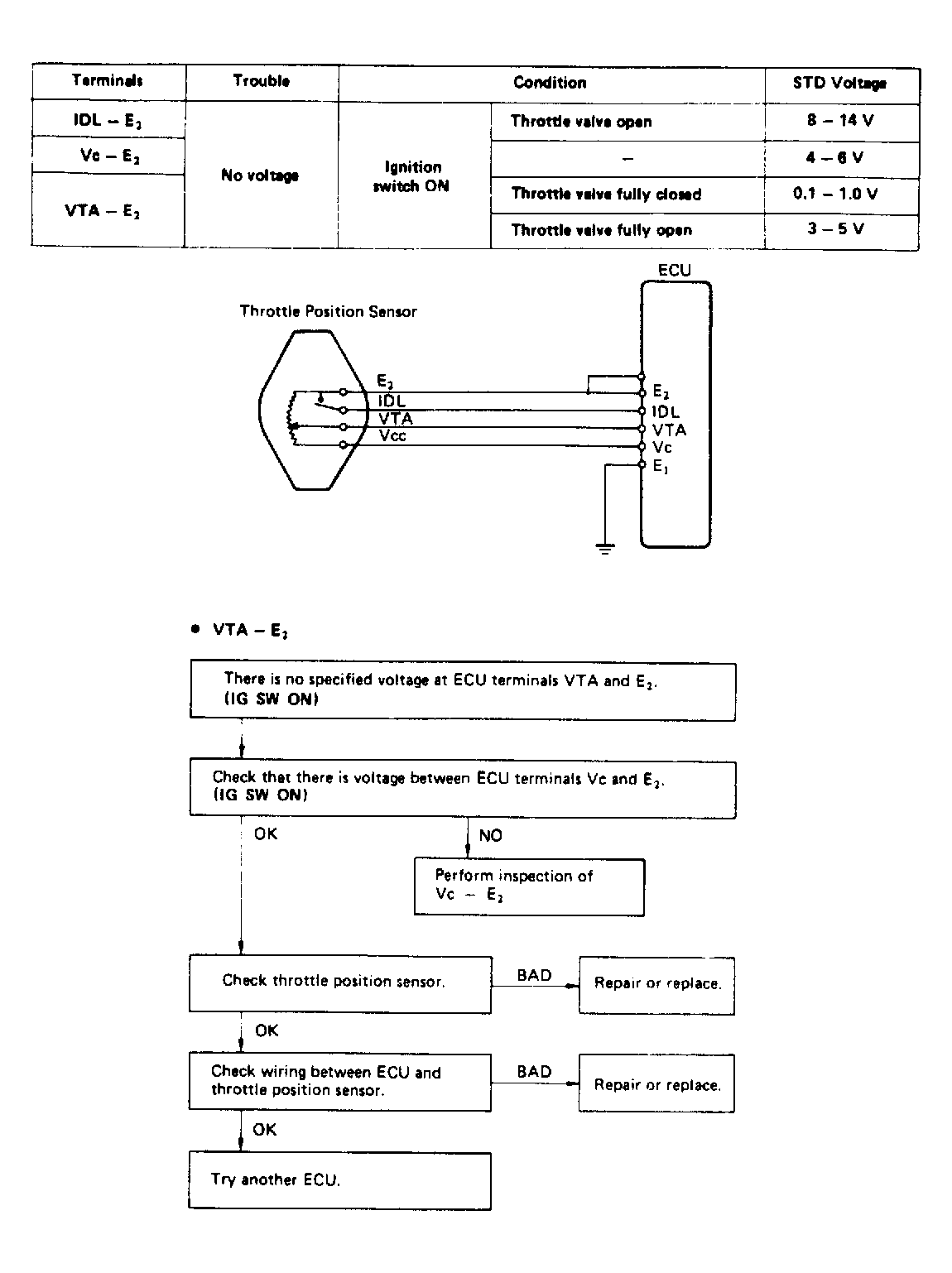

Fig 1: Test 6 Or Code 41, VTA-E2 Diagram & Flow Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

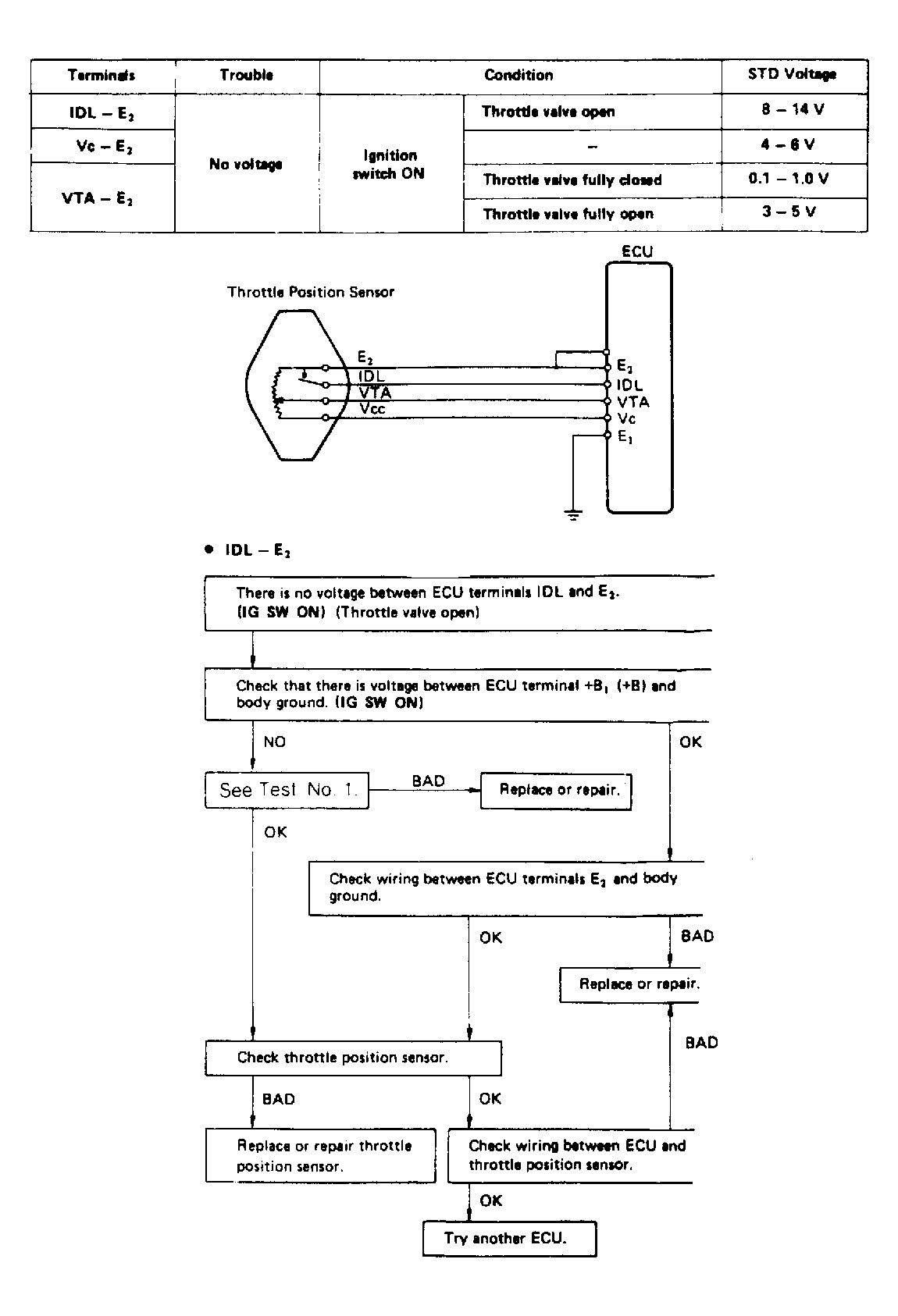

Fig 2: Test 6 Or Code 41, IDL-E2 Diagram & Flow Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

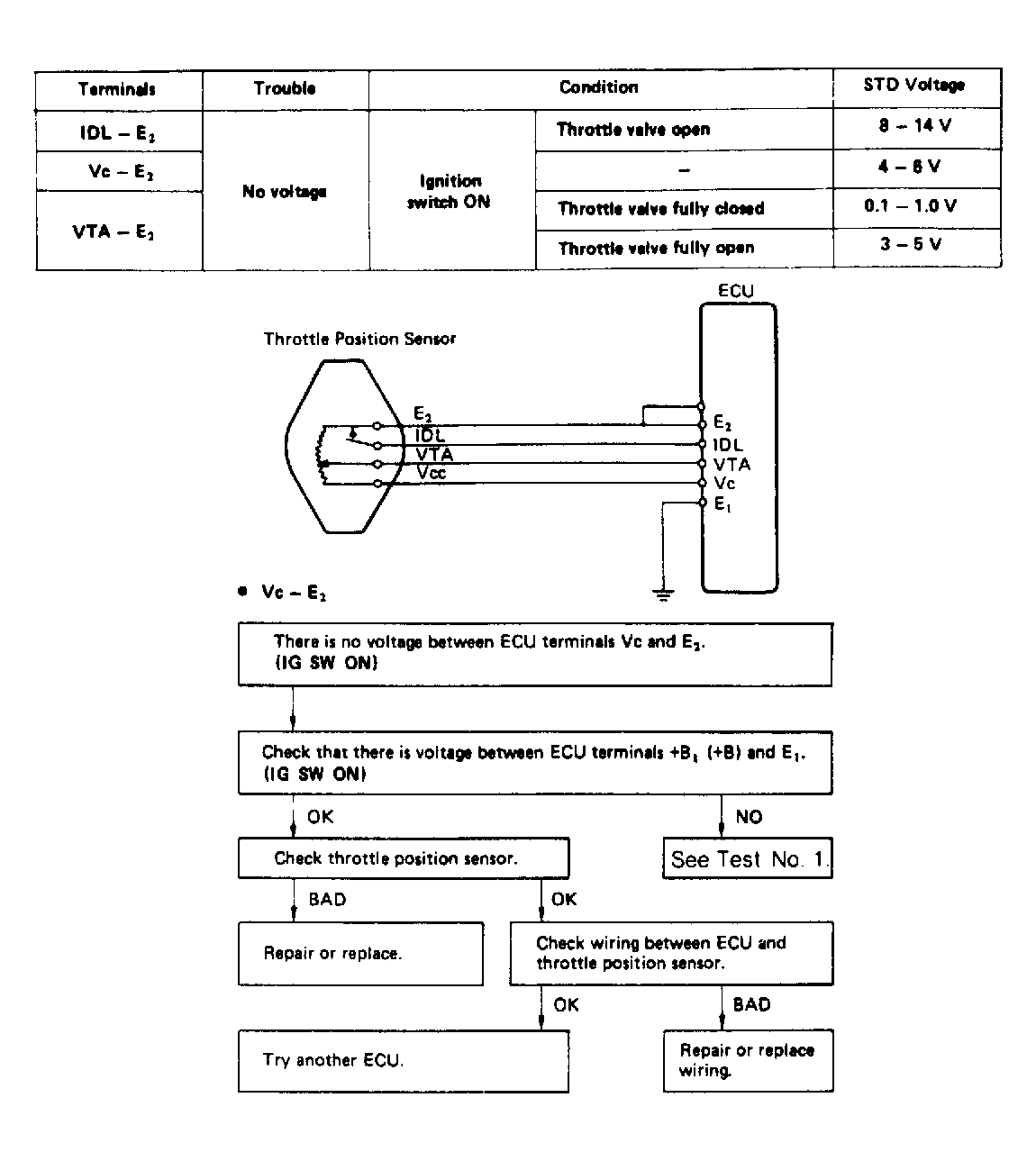

Fig 3: Test 6 Or Code 41, Vc-E2 Diagram & Flow Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
