Test 11 - Check Engine Light Circuit

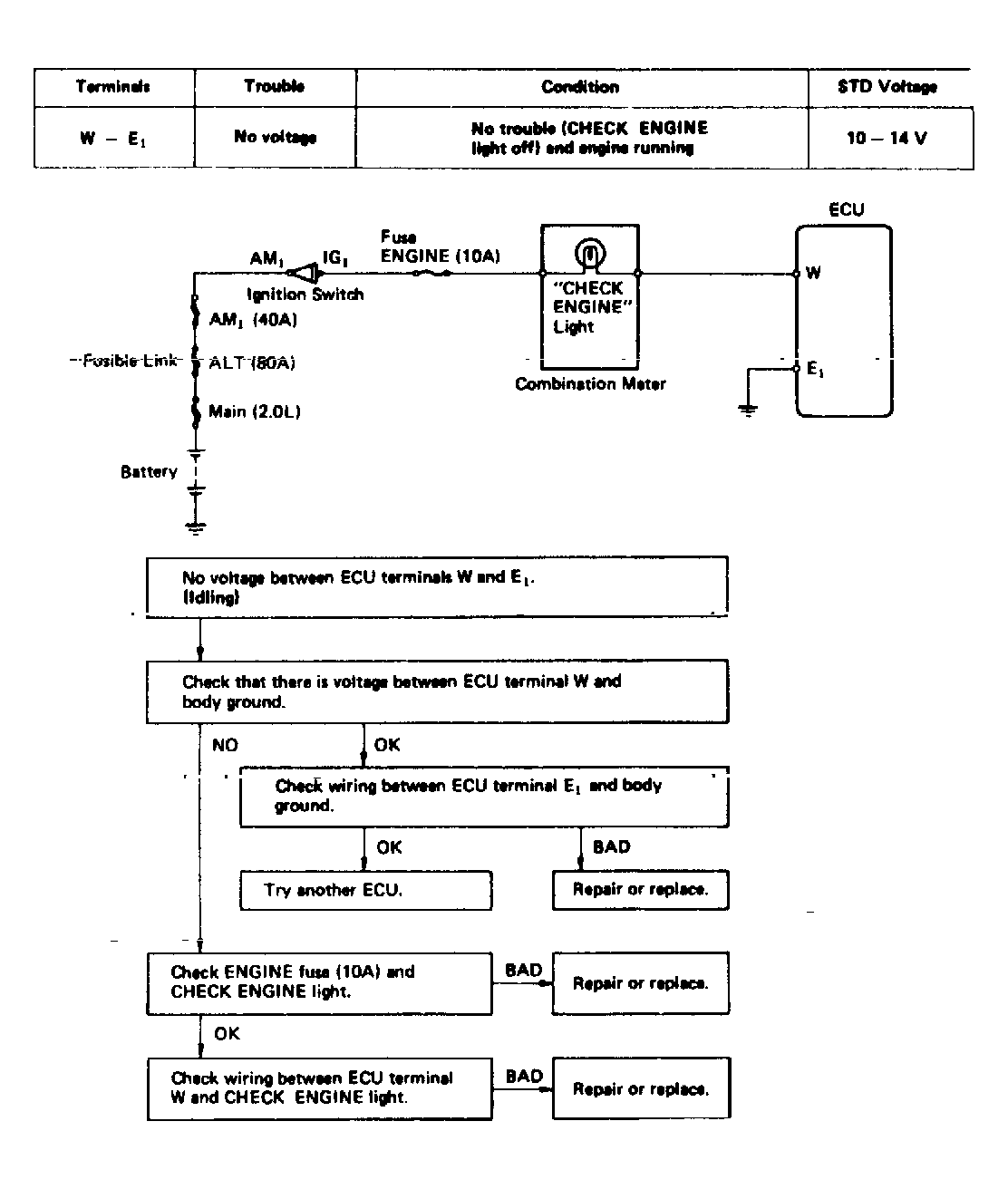

Fig 1: Test 11 Diagram & Flow Chart
G118808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
