Test 10 - Cold Start Injector Circuit

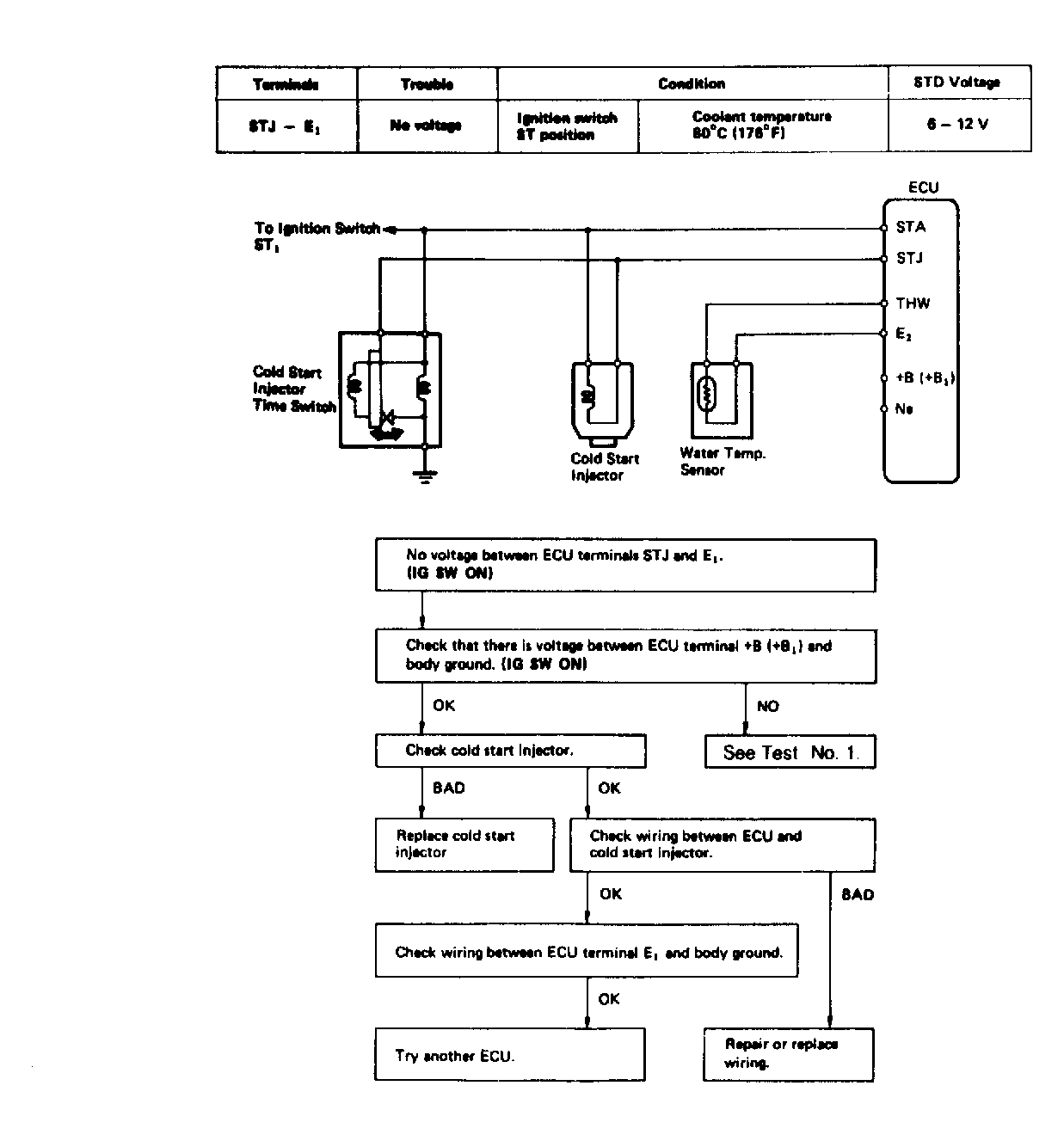

Fig 1: Test 10 Diagram & Flow Chart

G118807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
