Traction Control: Anti-Lock: Description

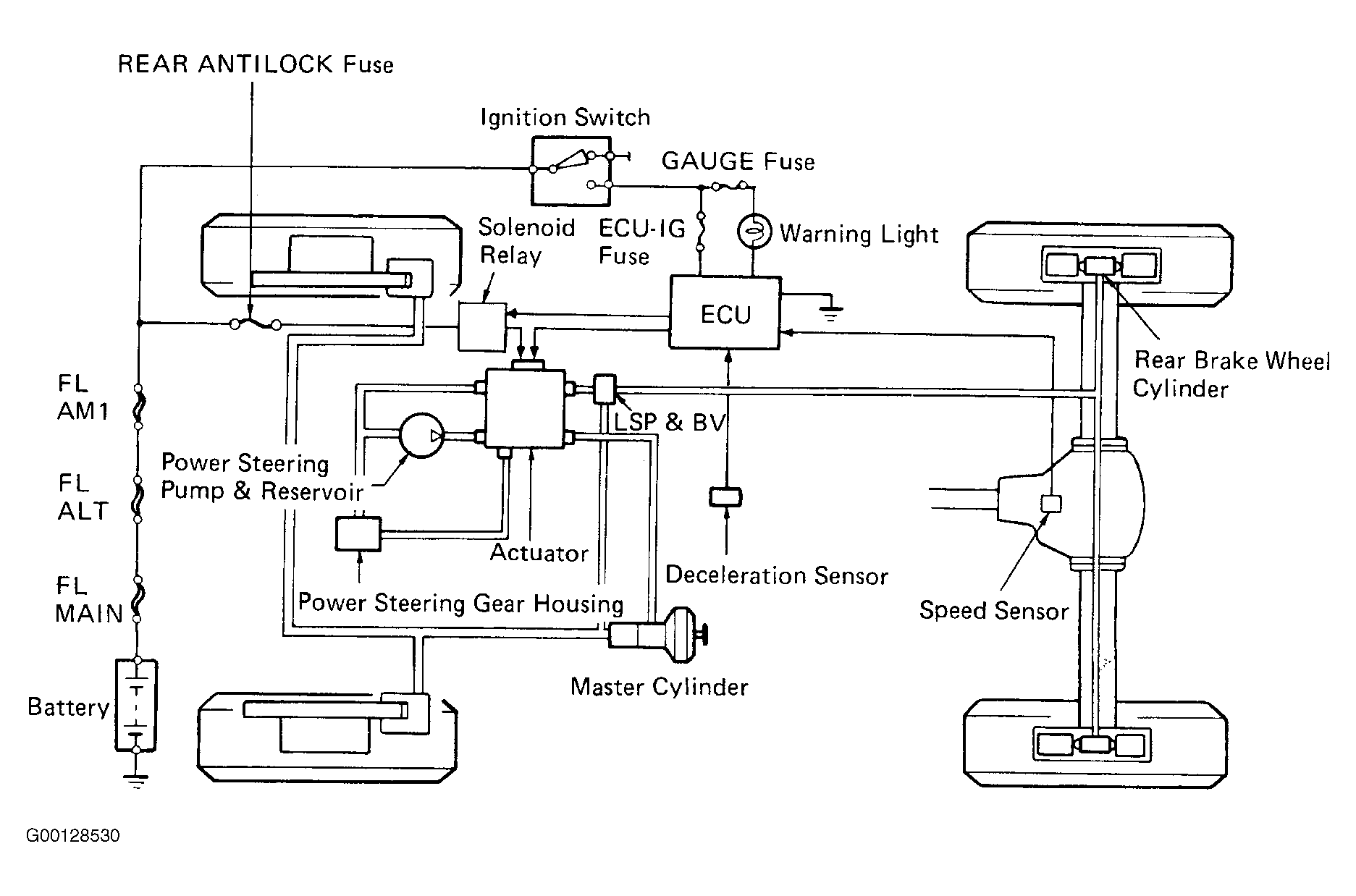

The Rear Anti-Lock Brake System is a brake system which controls the wheel cylinder hydraulic pressure of the rear wheels during sudden braking and braking on slippery road surfaces, preventing the rear wheels from locking. In case a malfunction occurs, a diagnosis function and fail-system have been adopted for the Rear Anti-Lock Brake System to increase serviceability. For an exploded view see Fig 1.
