Component Locations

COMPONENT LOCATIONS ⁽¹⁾

Component

Location

ABS ECU

Behind Right Side Of Instrument Panel. See Fig 2.

ABS Speed Sensor

On Top Of Differential Housing

Body Ground E

Behind Left Kick Panel, To Left Of J/B No. 1

Check Connector

Right Side Of Engine Compartment, Attached To Fuse/Relay Box

J/B No. 1

Behind Left Kick Panel. See Fig 2.

Service Connector

Right Rear Corner Of Engine Compartment. See Fig 4.

⁽¹⁾	For more information, see WIRING DIAGRAMS .

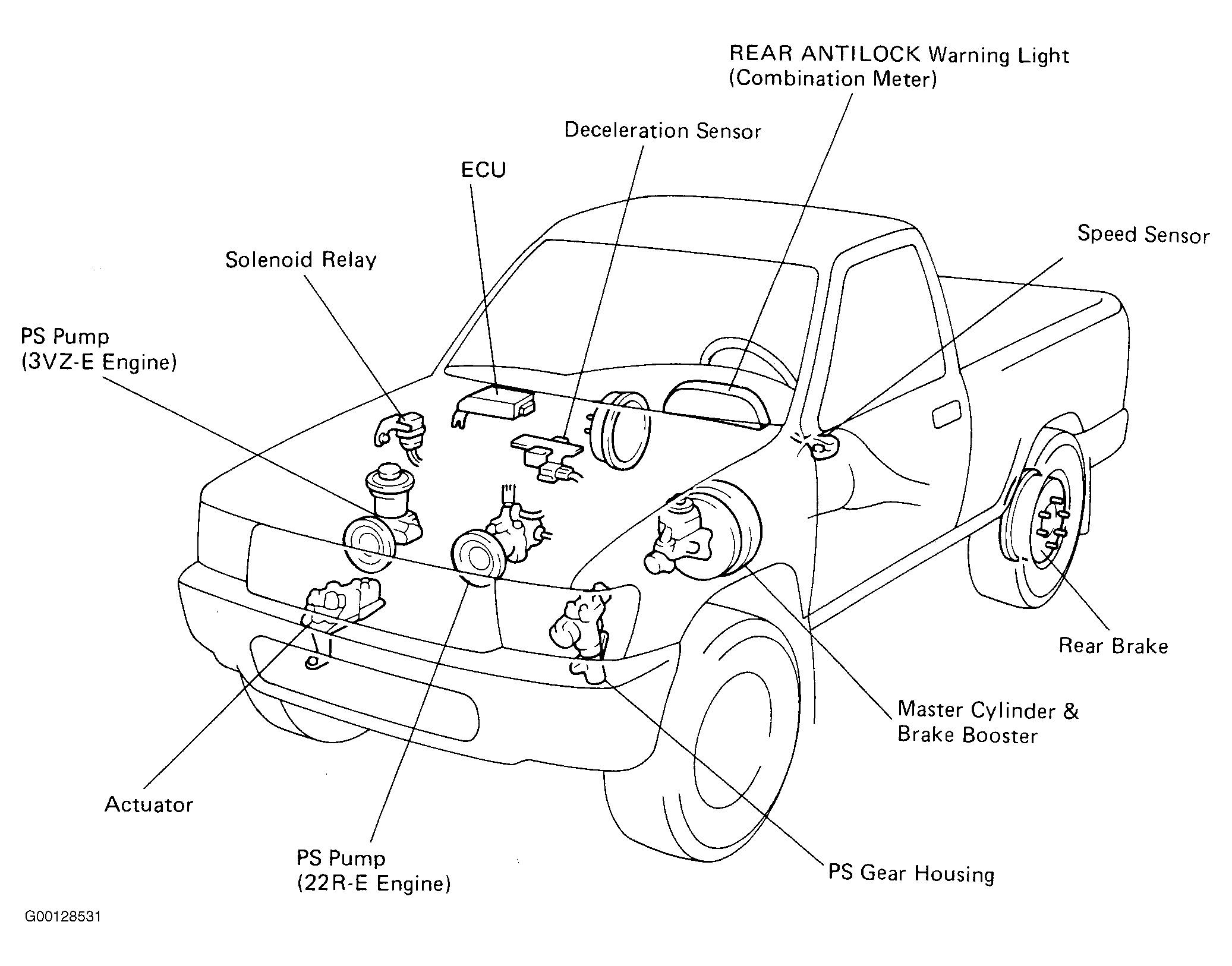

Fig 1: Locating Anti-Lock Brake System Components

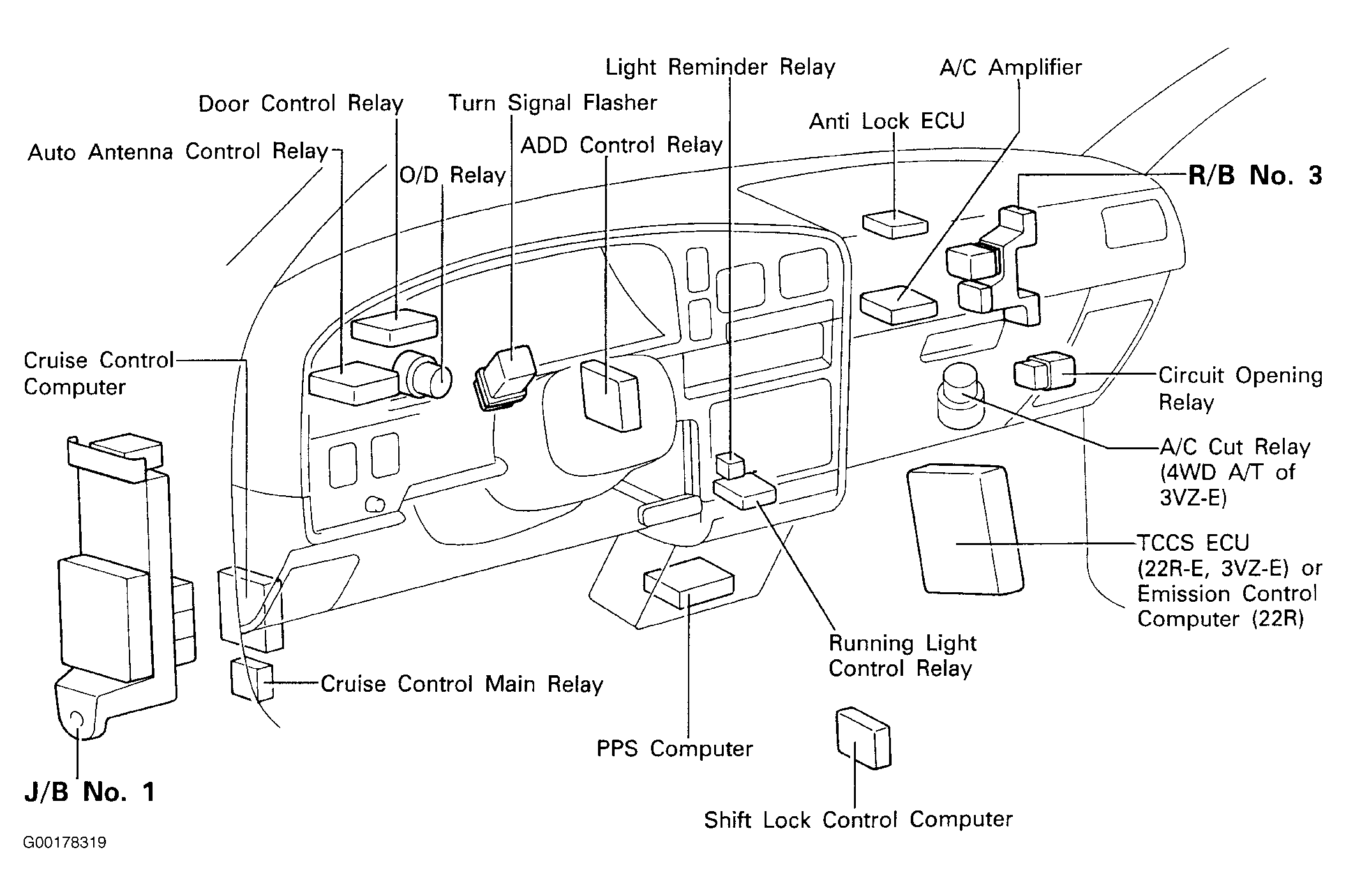

Fig 2: Locating J/B No. 1 (Fuse Block) & ABS ECU

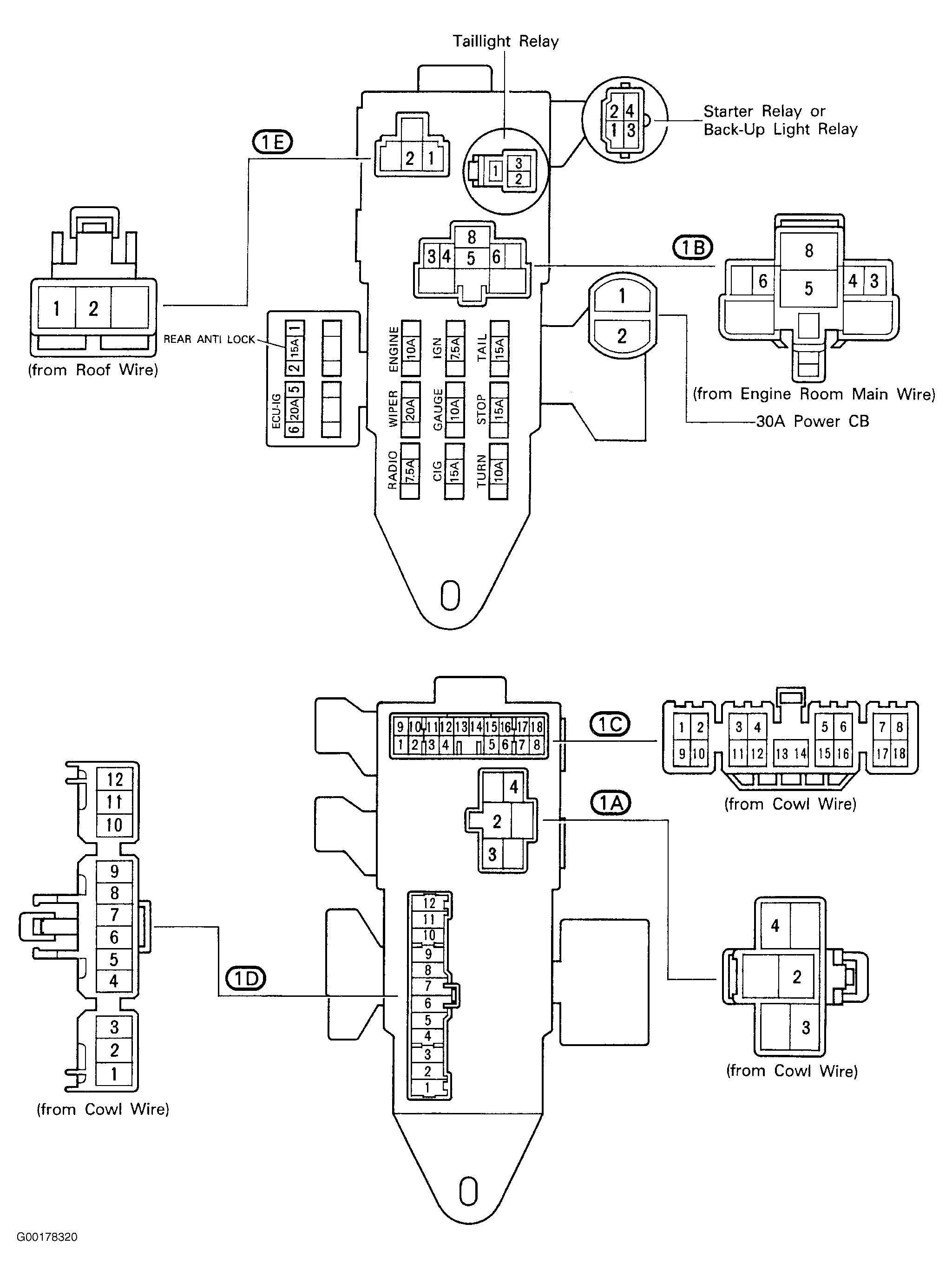

Fig 3: Identifying J/B No. 1 Components

Fig 4: Locating ABS Service Connector
