Test 12 - "Check Engine" Light Circuit

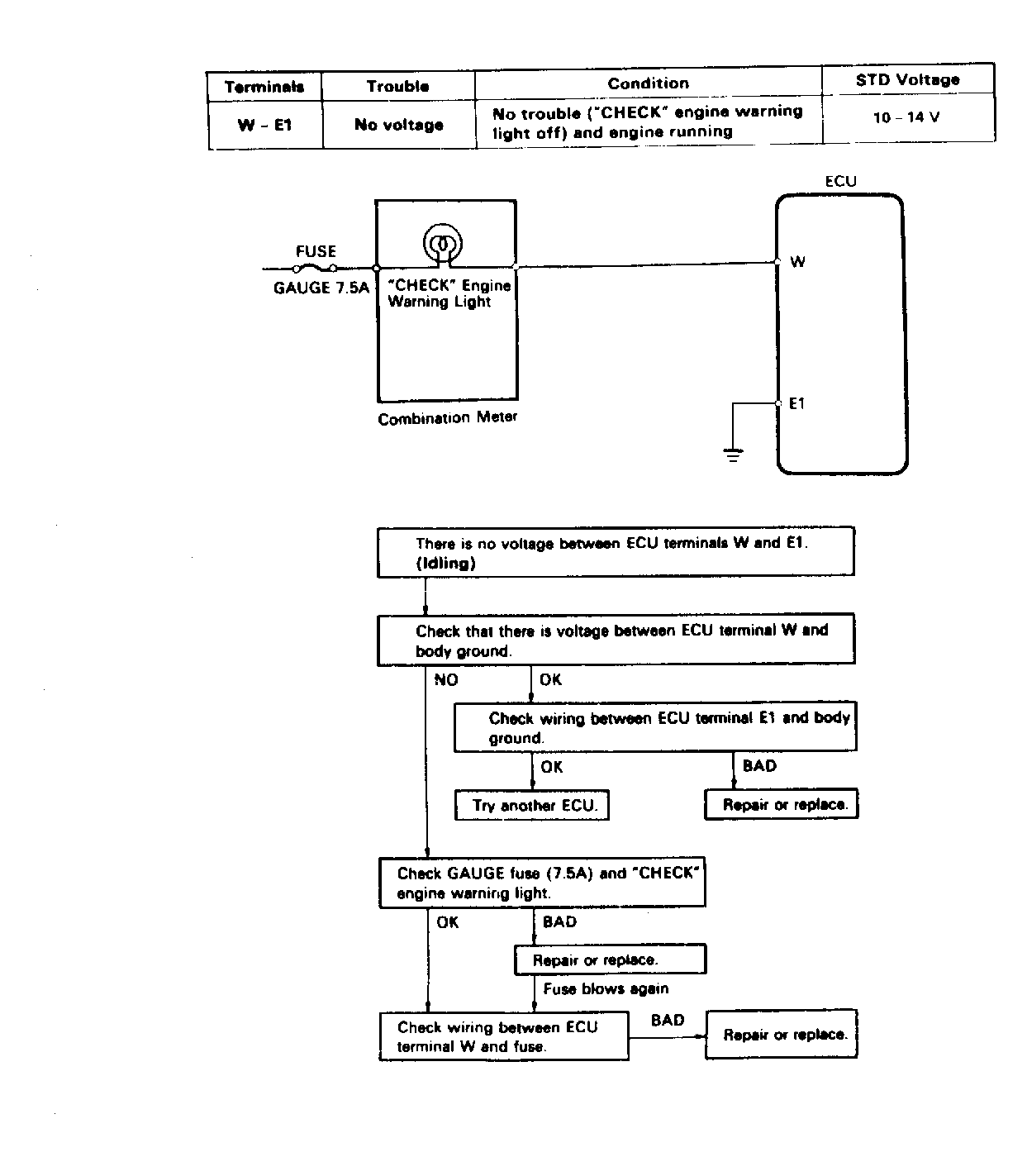

Fig 1: Test No. 12 Diagram & Flow Chart
G118737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
