Power Mirror

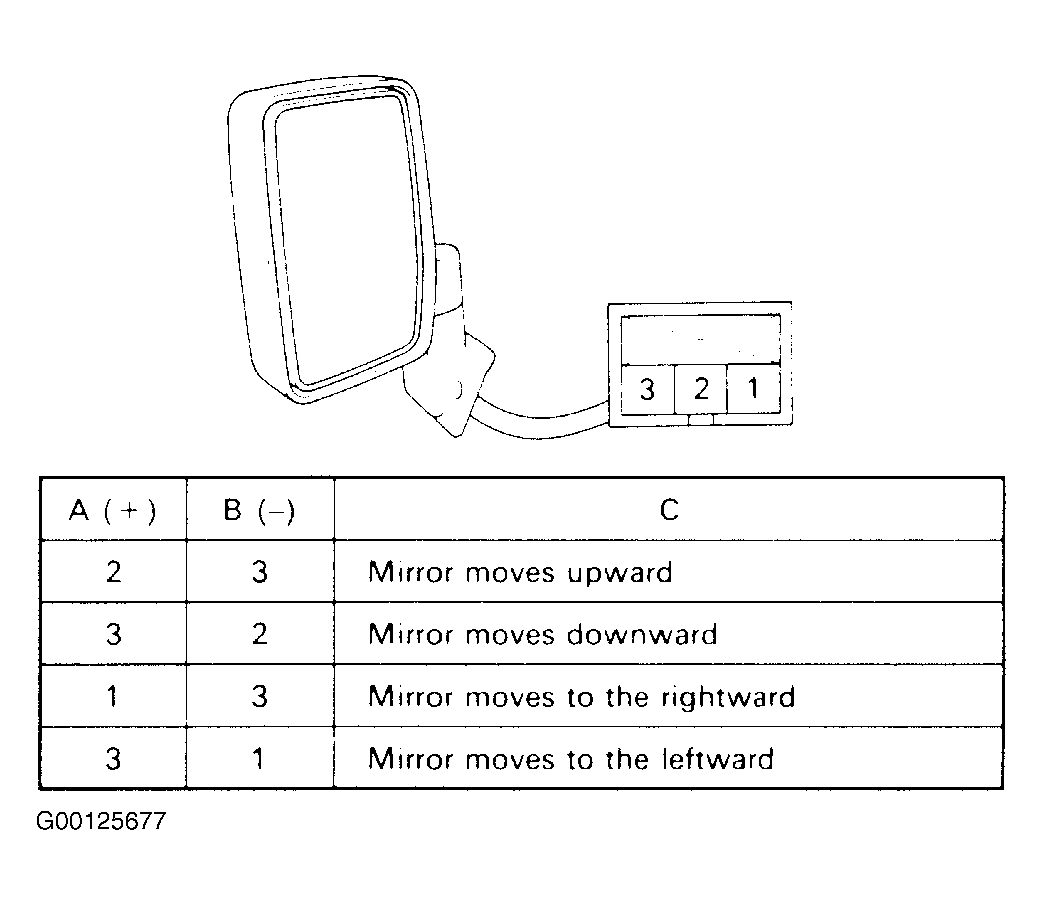

To test power mirror operation, connect a lead from the positive terminal of the battery to power mirror connector terminal listed in column "A", and ground the mirror connector terminal listed in column "B". See Fig 1. Ensure operation is as listed in column "C". If mirror does not operate correctly, replace mirror.
