Component Locations

For component locations, refer to illustrations. See Fig 1-Fig 3 .

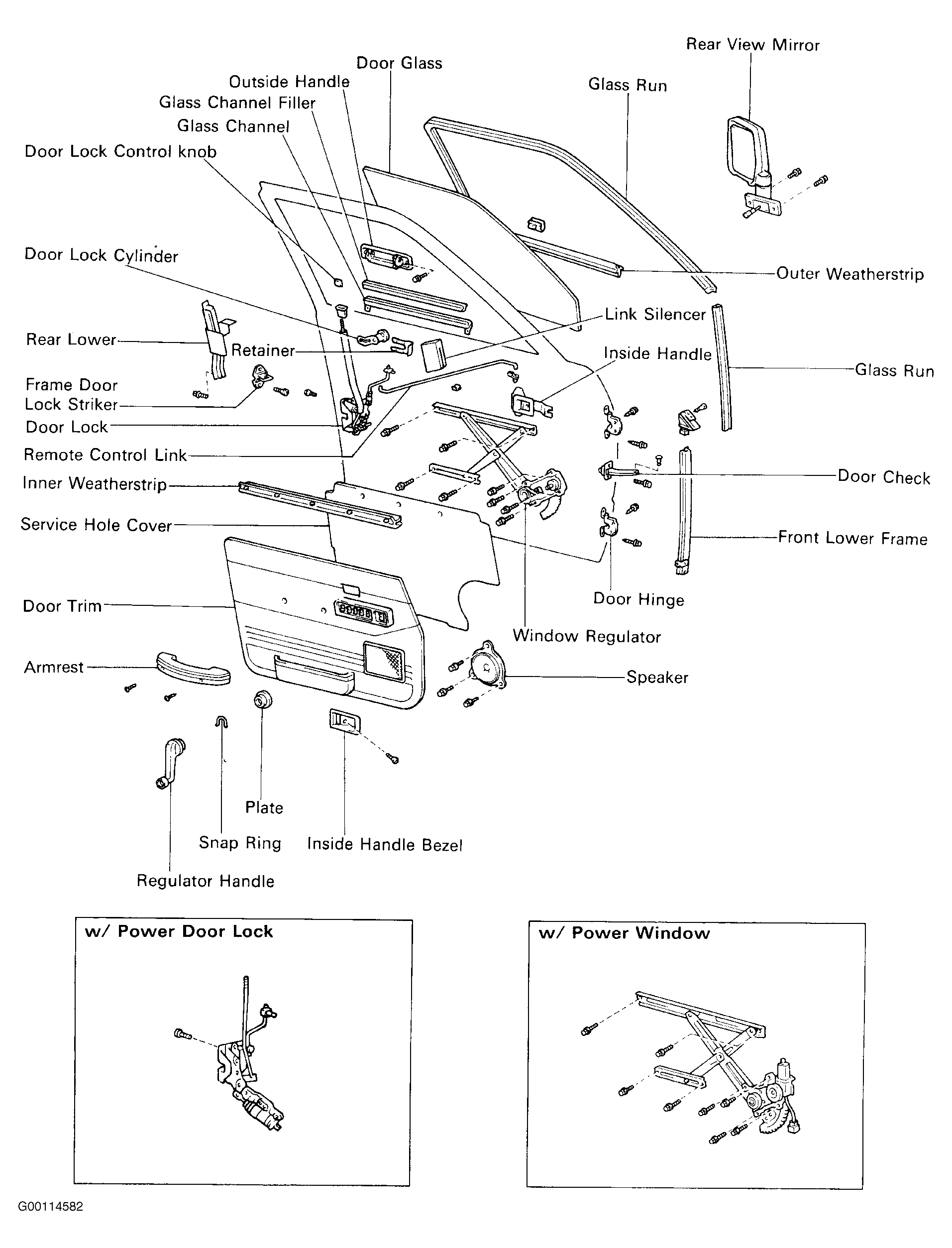

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

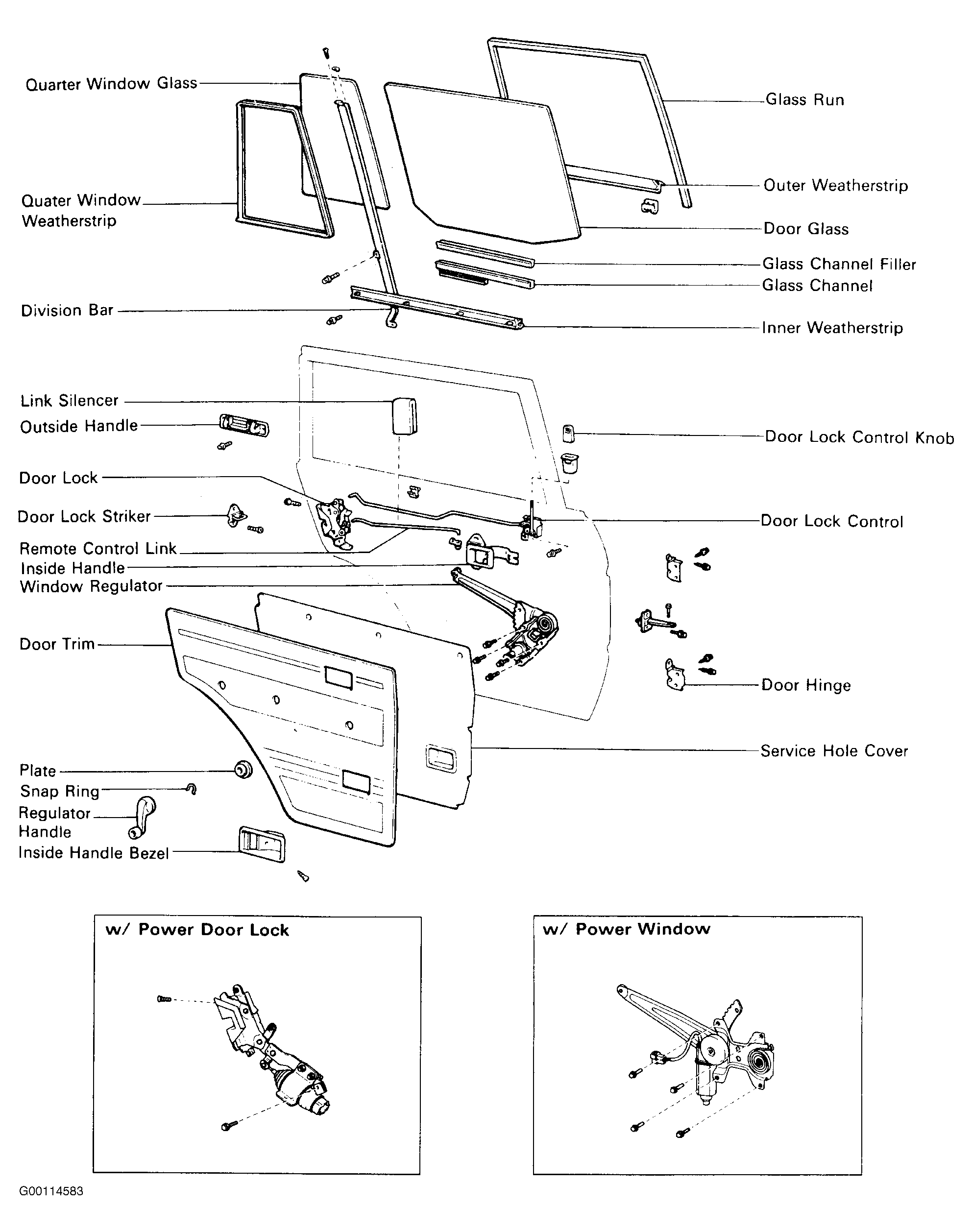

Fig 2: Exploded View Of Rear Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

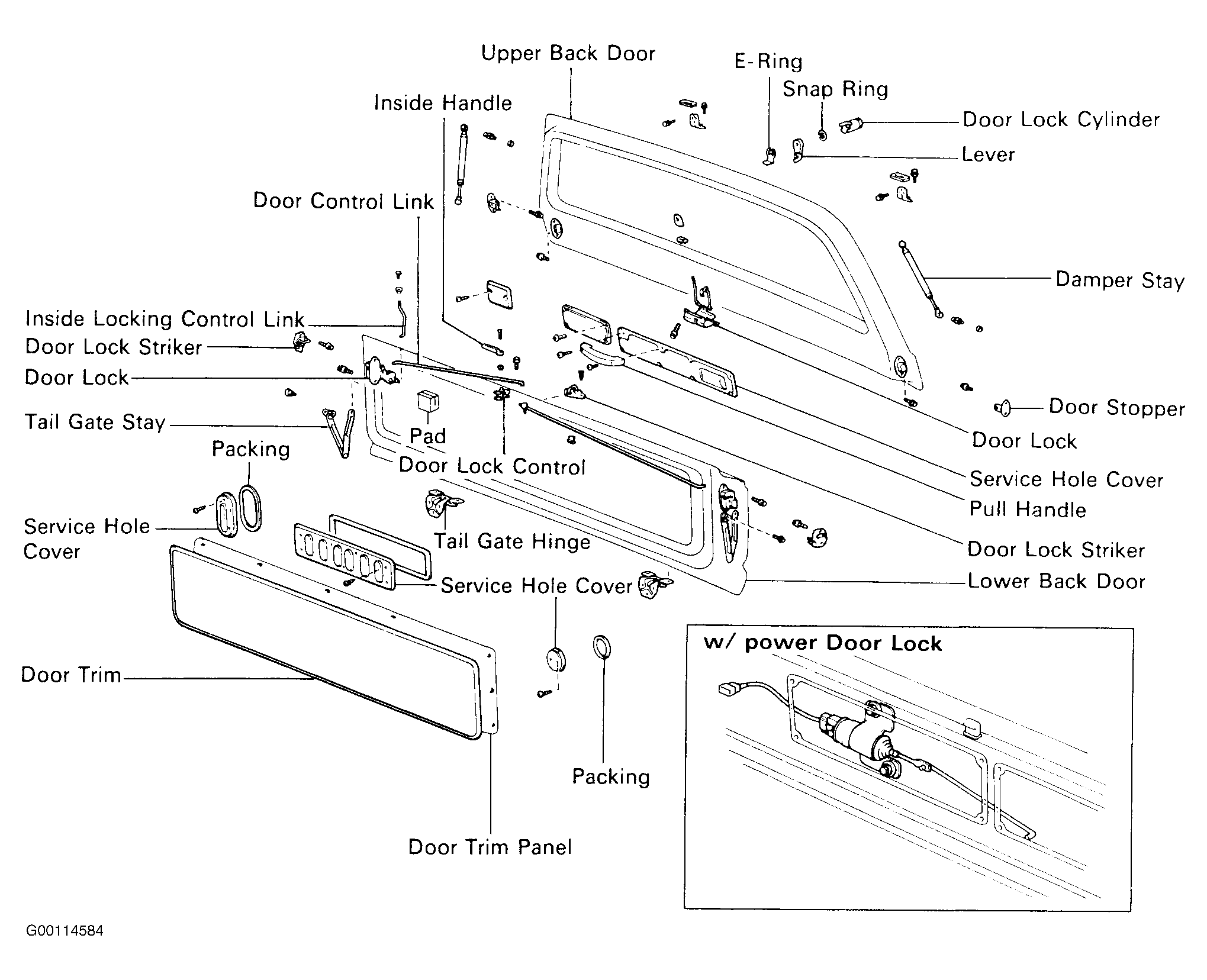

Fig 3: Exploded View Of Back Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
