Switch Test: Corolla
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1992 Toyota Tercel, 1992 Toyota Supra, 1992 Toyota Previa, 1992 Toyota Paseo, and 1992 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

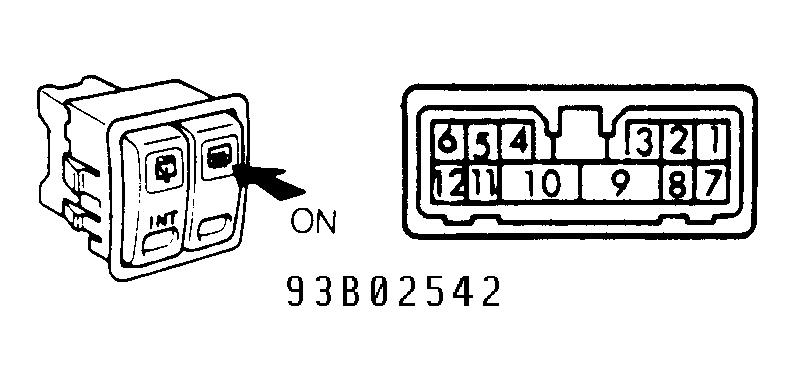

With defogger switch on, ensure continuity exists between terminals No. 9 and 10. See Fig 1. With switch off, continuity should not exist between terminals No. 9 and 10. Check for continuity between terminals No. 11 and 12 (light bulb). Continuity should exist at all times. If continuity is not as specified, replace switch.
