Power Window Limit Switch: 4Runner
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1992 Toyota Tercel, 1992 Toyota Supra, 1992 Toyota Previa, 1992 Toyota Paseo, and 1992 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

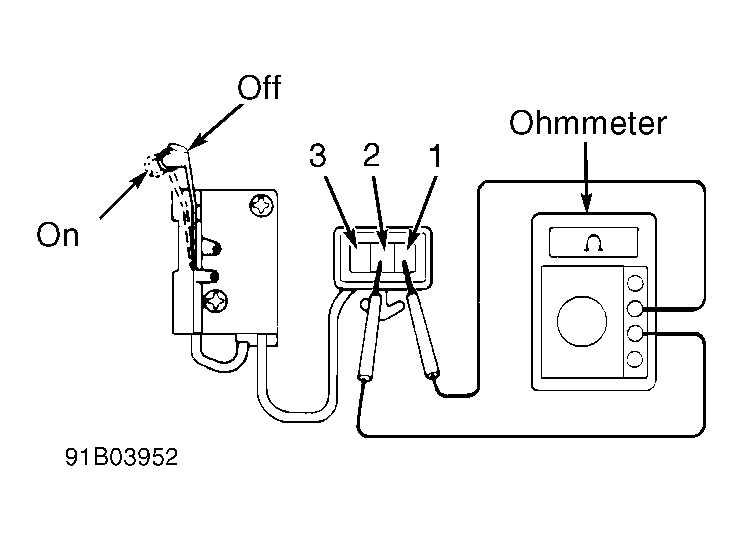

Power window limit switch is located behind trim panel and bottom of rear door. Using an ohmmeter, ensure continuity exists between terminals No. 1 and 2 when switch is turned to ON position. See Fig 1. Continuity should not exist between any terminals when switch is pushed to OFF position. If continuity is not as specified, replace relay.
