Test 12 - "Check Engine" Light Circuit
Test 12 - "Check Engine" Light Circuit

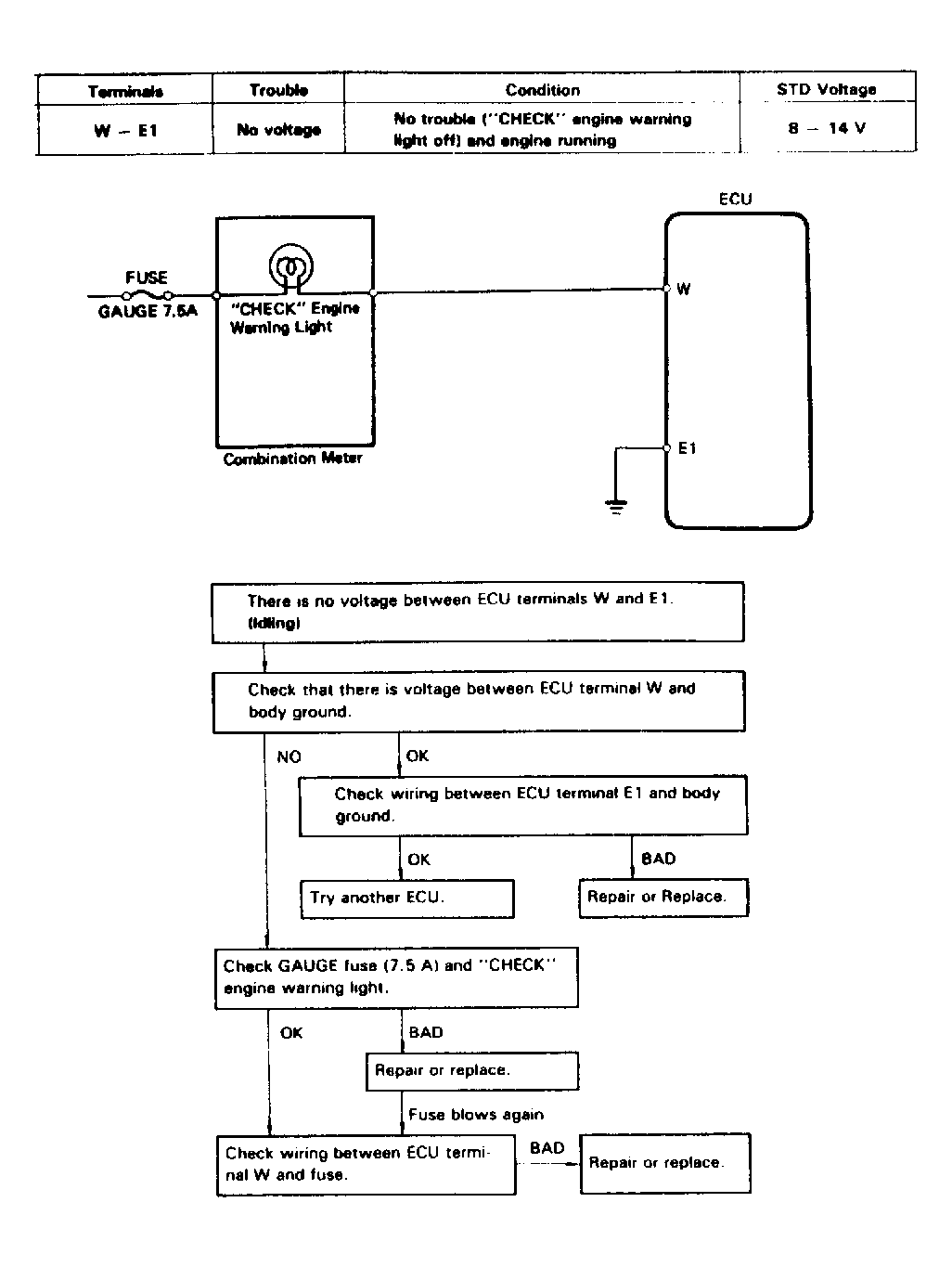

Fig 1: Test No. 12 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
