Pick-Up Coil Air Gap Check

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1. Air gap should .008-.016" (.20-.40 mm). If air gap is not within specification, replace distributor.

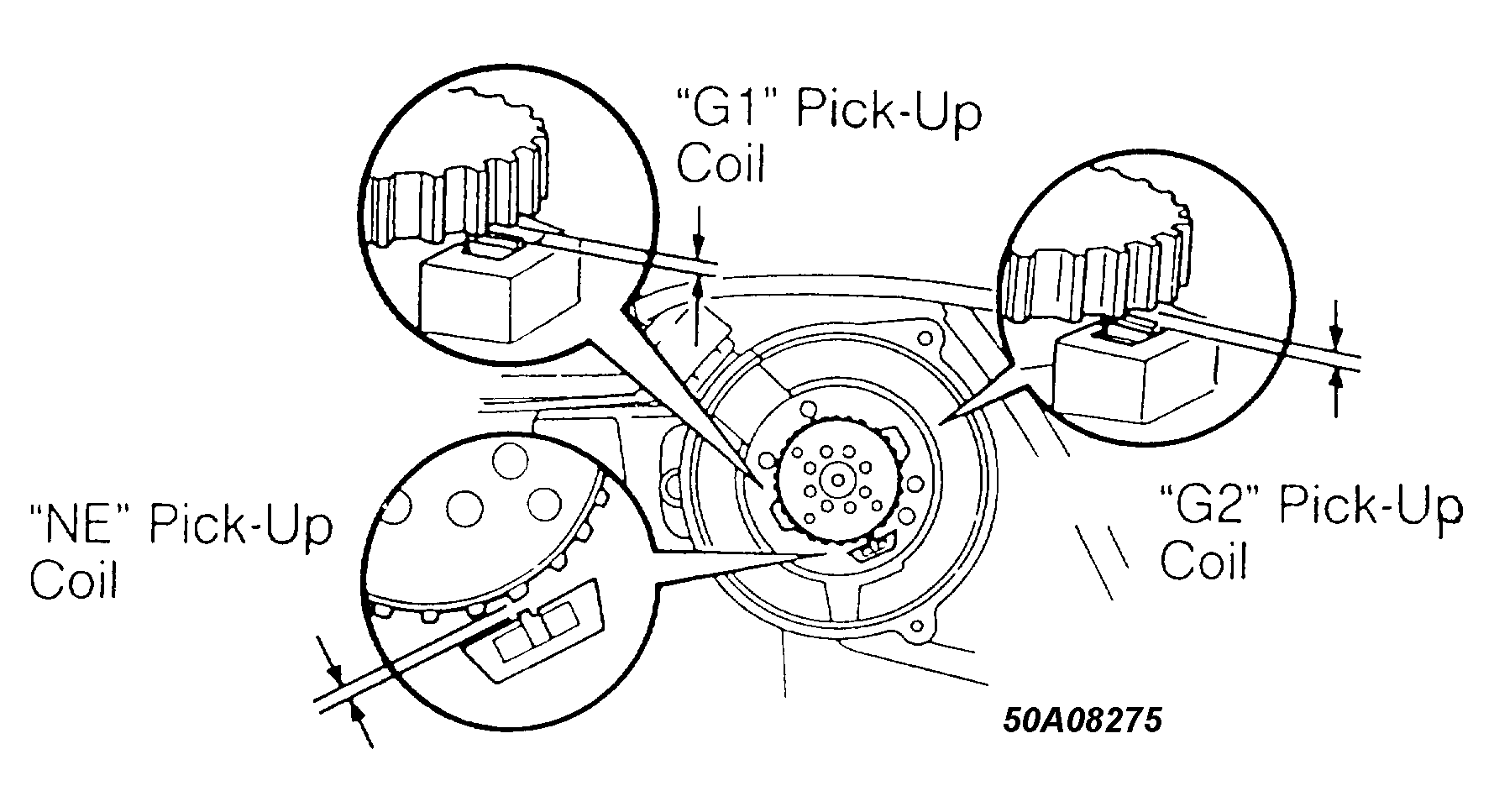

Fig 1: Checking Pick-Up Coil Air Gap

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
