Component Locations

COMPONENT LOCATIONS

Component Location
Seat Heater Ground D Under Junction Block No. 1 set bolt, behind left kick panel.
Seat Heater Ground E Behind center of instrument panel, left of center console.
Seat Heater Ground H Left rear pillar, on level with bottom or rear window.

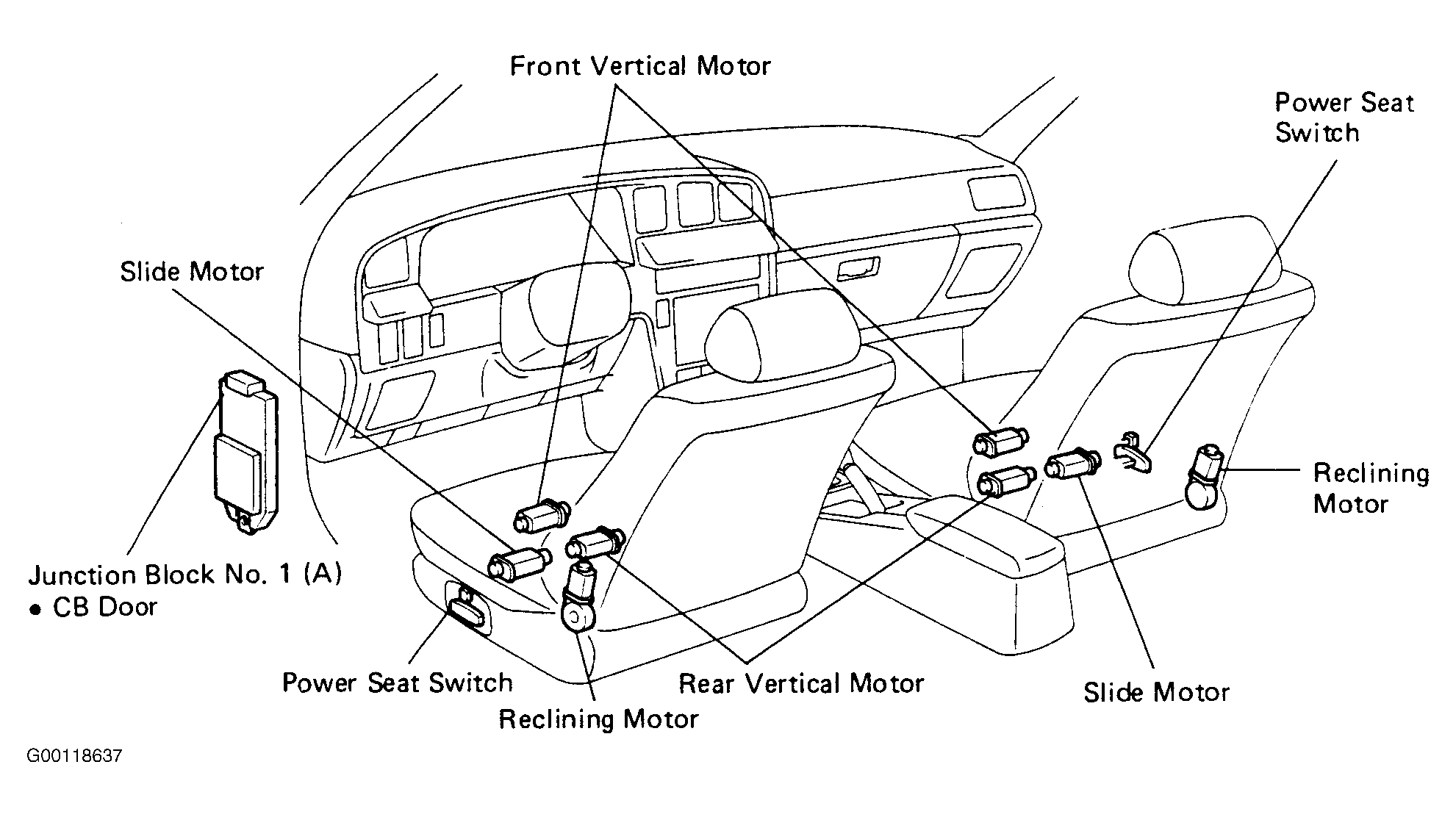

Fig 1: Locating Power Seat Components
G00118637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

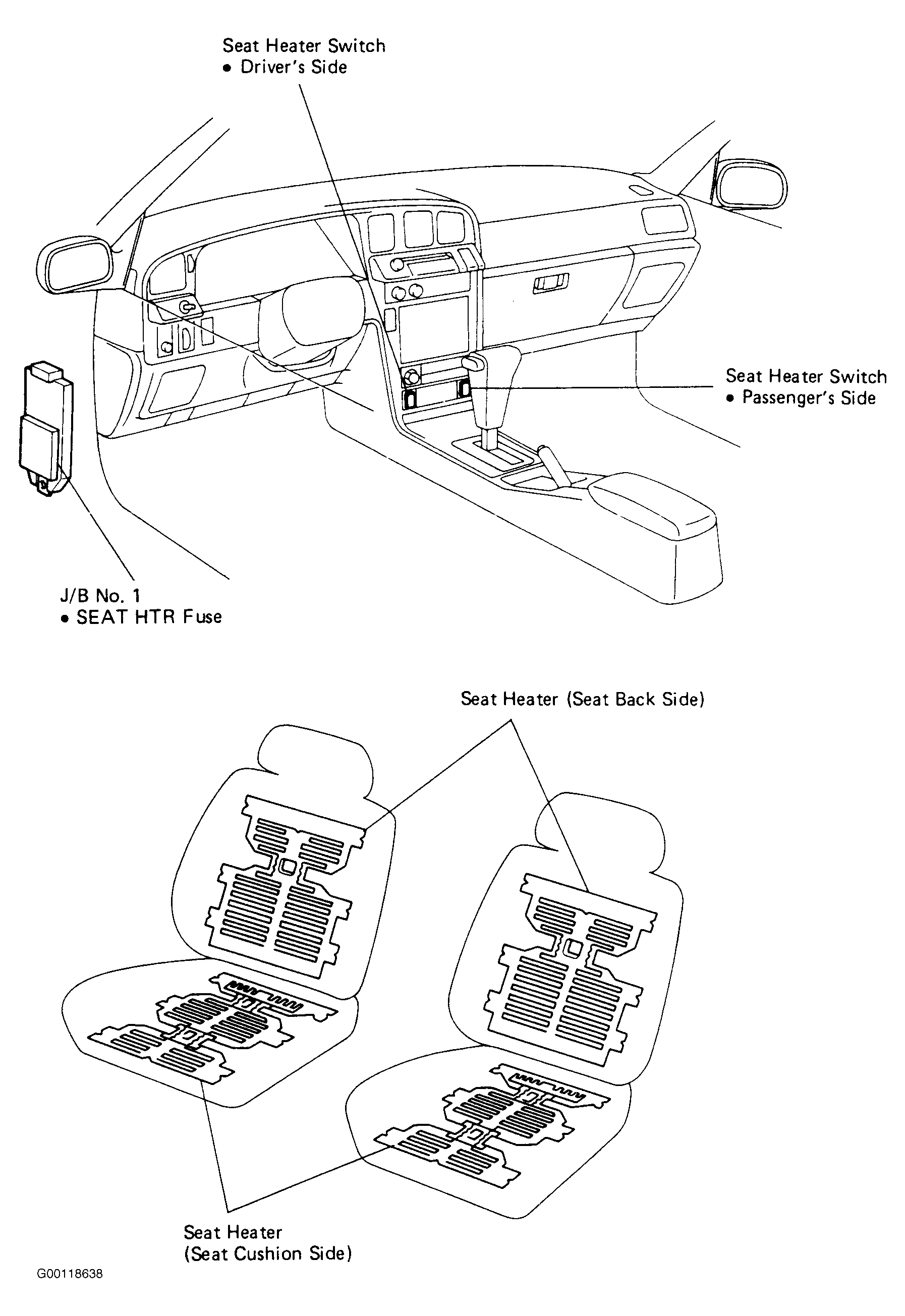

Fig 2: Locating Seat Heater System Components (1991-92)
G00118638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
