Mirror Motor

  1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 3. See Fig 1. Check that the mirror turns to the left side.
  2. Reverse the polarity, check that the mirror turns to the right side.
  3. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 3. See Fig 2. Check that the mirror turns upward.
  4. Reverse the polarity, check that the mirror turns downward.
  5. If operation is not as specified, replace the mirror assembly.

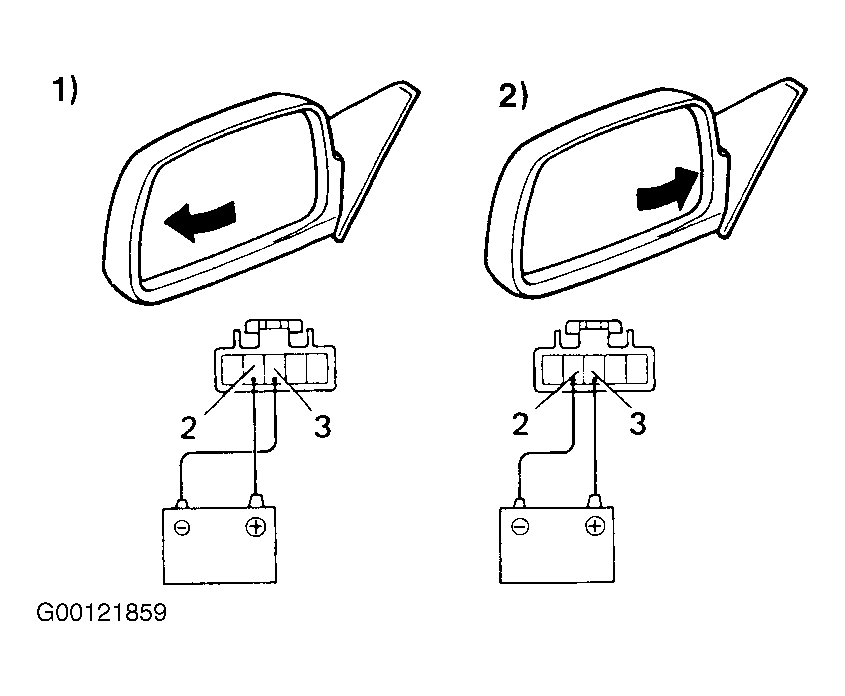

Fig 1: Testing Left & Right Mirror Motor Operation
G00121859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

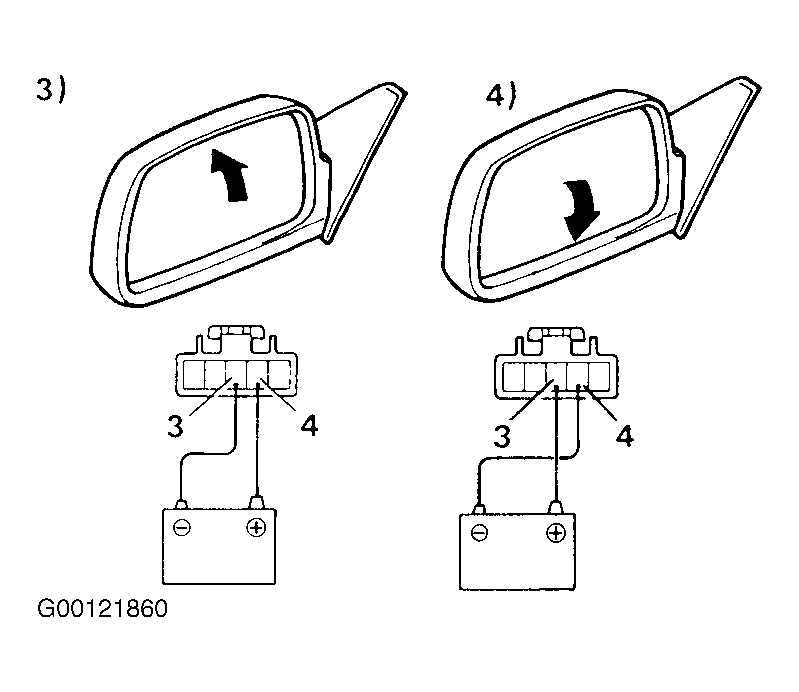

Fig 2: Testing Up & Down Mirror Motor Operation
G00121860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
