Starter Relay

  1. Inspect relay continuity. Using an ohmmeter, check that there is continuity between terminals 1 and 3. Check that there is no continuity between terminals 2 and 4.

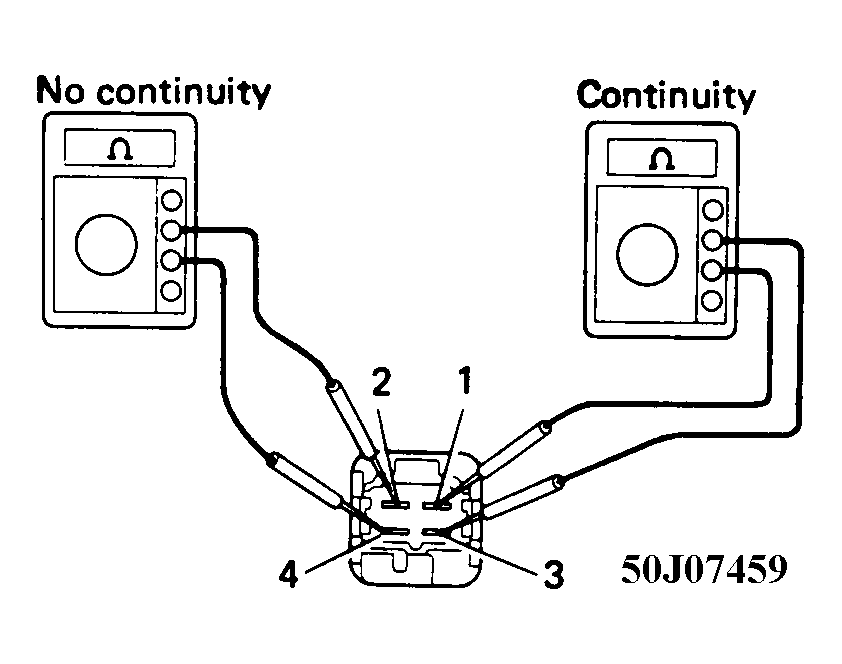

Fig 1: Starter Relay/Continuity
G50J07459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
