Test J, Inspection Of Key Unlock Warning Switch Circuit
Test J, Inspection Of Key Unlock Warning Switch Circuit

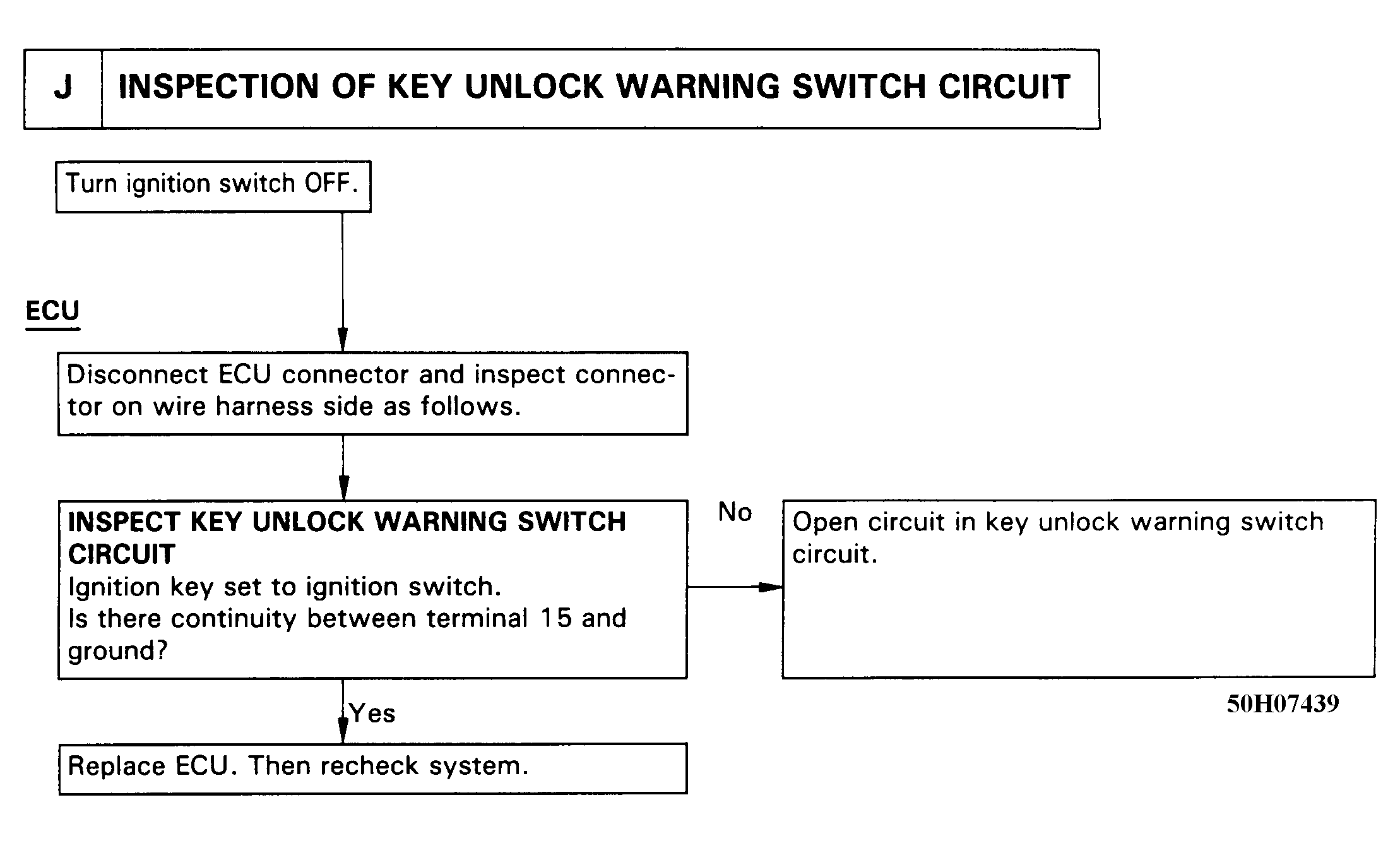

Fig 1: Test J, Inspection of Key Unlock Warning Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
