Test F, Inspection Of Courtesy Switch Circuit

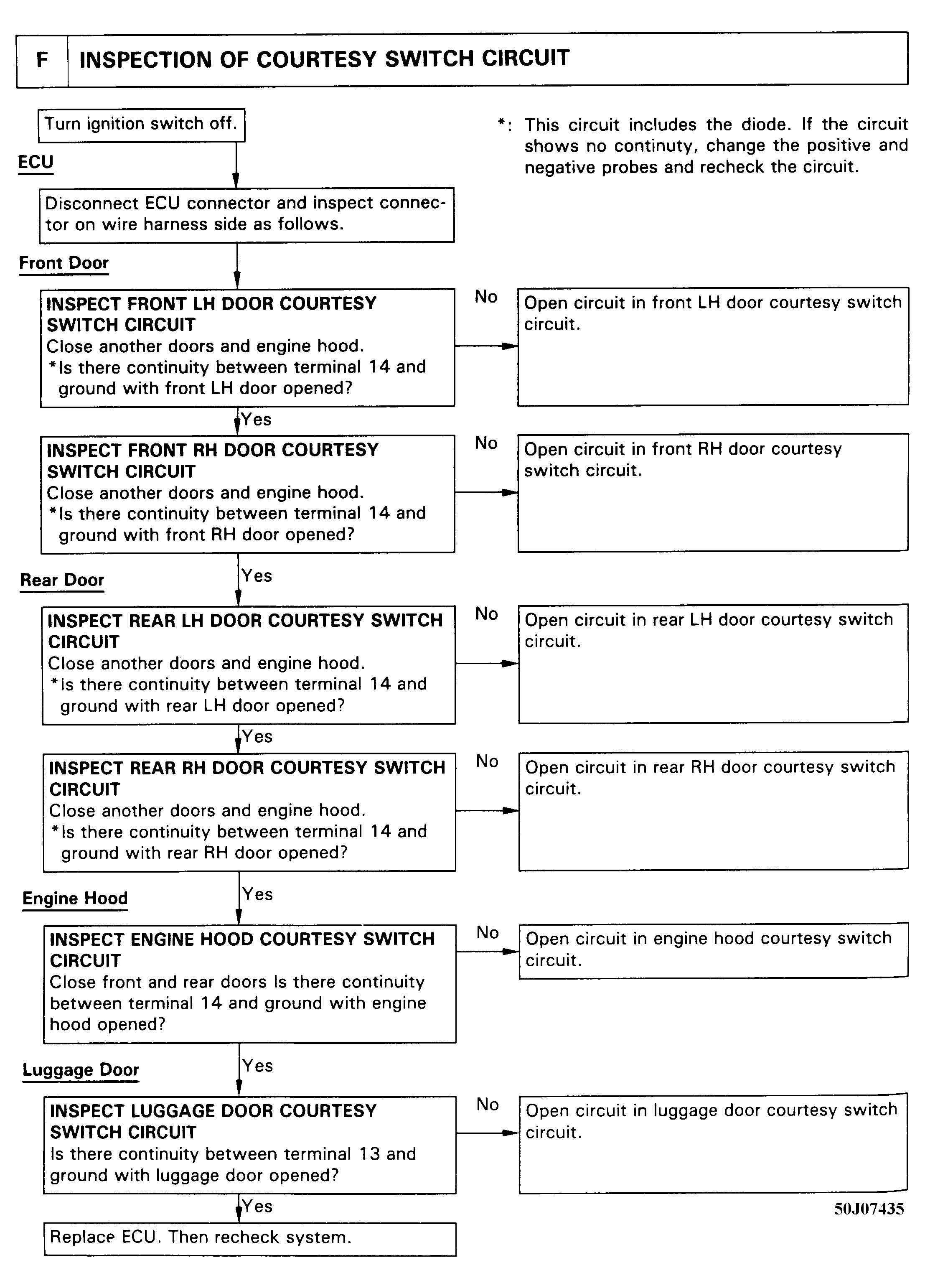

Fig 1: Test F, Inspection of Courtesy Switch Circuit

G50J07435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
